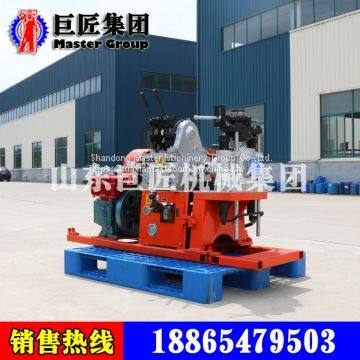

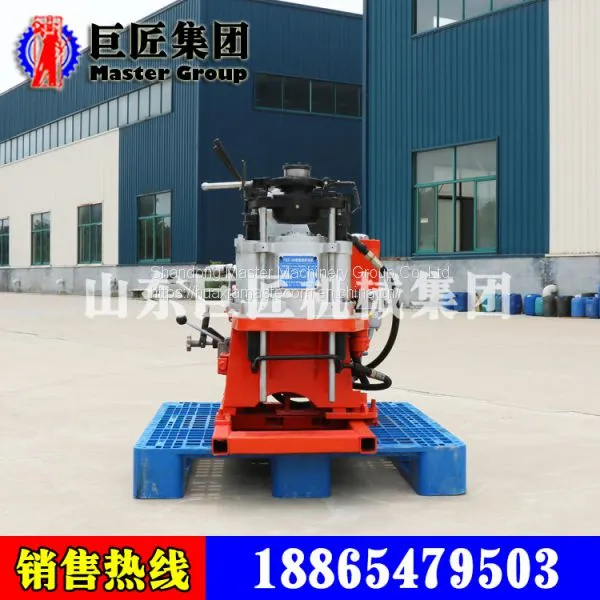

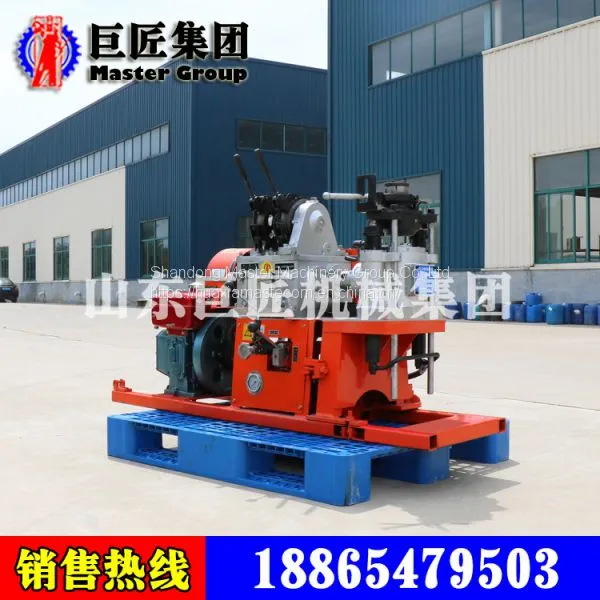

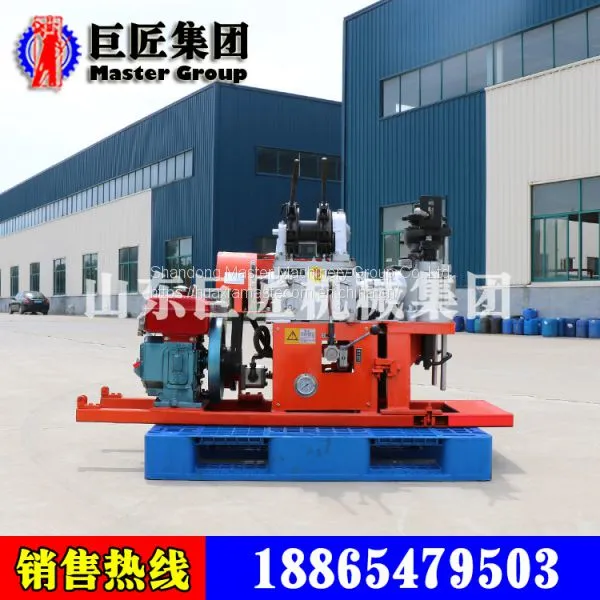

Help CenterYQZ-30 Hydraulic Portable Drilling Rig Small Portable Diesel Oil Drilling Machine
Related Products
-
QTZ-1 Portable & Compact Soil Sampling RigUS$ 5000 - 6000MOQ: 1 Set -
QTZ-2 Portable Soil Sampling RigUS$ 5000 - 6000MOQ: 1 Set
-
QTZ-3 Portable Soil Sampling Drilling Rig for Scientific Redearch and ExploringUS$ 5000 - 6000MOQ: 1 Set
-
Powered by Electric QTZ-3D Portable Electric Soil Drilling RigUS$ 5000 - 6000MOQ: 1 Set
-
SH30-2A Engineering Exploration Drilling Rig,exploration of Geological Prospecting WorkUS$ 5000 - 6000MOQ: 1 Set
1. The brief introductions of YQZ-30 hydraulic portable drilling rig
YQZ-30 hydraulic portable drilling rig is a small portable diesel oil drilling machine. It is mainly used for prospecting and exploration, geophysical exploration,drilling engineering such as road construction and blasting hole, shallow oil, natural gas and groundwater drilling. It also can be used for engineering drilling of dam grouting and tunnel ventilation and drainage. The drilling depth of YQZ-30 drilling rig is 30 meters. The open hole diameter is 89mm, and the final hole diameter is 75mm.
2.Features of YQZ-30 hydraulic core drilling machine
l Oil pressure automatic feeding mechanism, high drilling efficiency.
l Using the upper ball clamp mechanism, non-stop re-chuck
l Handles are centralized, easy to operate, safe and reliable.
l Compact structure, small floor space.
l The shell of drill rig and gearbox are made of aluminum. The shell reduce the weight of the fuselage.
l Easy to decomposition and move, suitable for working in hilly terrain, mountainous areas and other complex terrain.
3.Specifications of YQZ-30 hydraulic core drilling machine
| Main engine | |||
| Drilling depth | 30m | Drill pipe diameter | 42mm |
| Open hole diameter | 91-110mm | End hole diameter | 75 mm |
| Drilling rig weight | 198kg | Drilling rig dimension | 1400*600*1055mm |
| Windlass | |||
| Maximum hoist capacity | 4kn | Coiling block diameter | 90mm |
| Wire rope diameter | 8mm | Maximum length | 18m |
| The band type brake diameter | 200mm | The band type brake width | 35mm |
| Vertical shaft | |||
| Rotating speed | 136/338/578r/min | Stroke | 400mm |
| Maximum pressure | 8kn | Lifting power | 10kn |
| Oil pump | |||
| Model | YBC20/125 | Rated pressure | 12.5Mpa |
| Rate of flow | 20ml/r | Rated rotate speed | 1500r/min |
| Power | |||
| Diesel engine | R180 | Cooling type | water-cooling |
| Rated power | 5.67KW | Rated rotate speed | 2600r/min |
