Home > Manufacturing & Processing Machinery > Metallurgy Machinery > Vertical Type Ladle Heater

Vertical Type Ladle Heater

Vertical Type Ladle Heater thumbnail-1
Vertical Type Ladle Heater thumbnail-2
Vertical Type Ladle Heater thumbnail-3
Vertical Type Ladle Heater thumbnail-4
Vertical Type Ladle Heater thumbnail-5
Vertical Type Ladle Heater photo-1
Vertical Type Ladle Heater photo-2
Vertical Type Ladle Heater photo-3
Vertical Type Ladle Heater photo-4
Vertical Type Ladle Heater photo-5
US$ 10000 - 30000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BENOR
Place of Origin:
China
Model Number:
KBQ-LQ-3T
Contact Supplier Request Quote Chat Now
Qingdao Benor Magnetoelectric Technology Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
150 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BENOR
Place of Origin China
Model Number KBQ-LQ-3T
After-sales Service Provided Engineers available to service machinery overseas

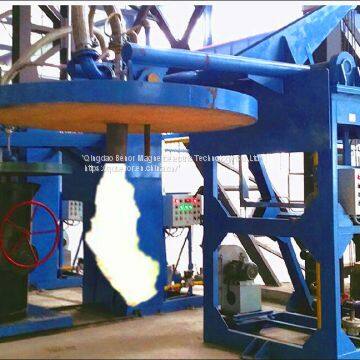

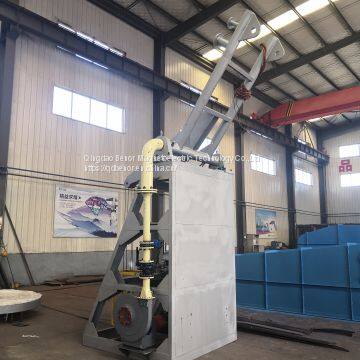

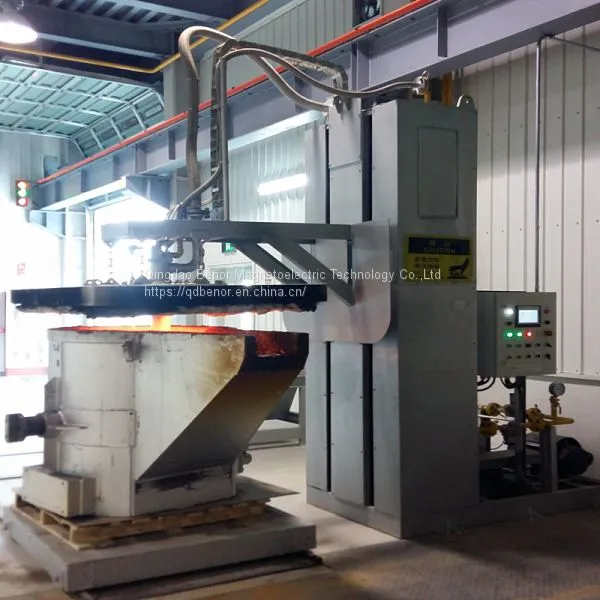

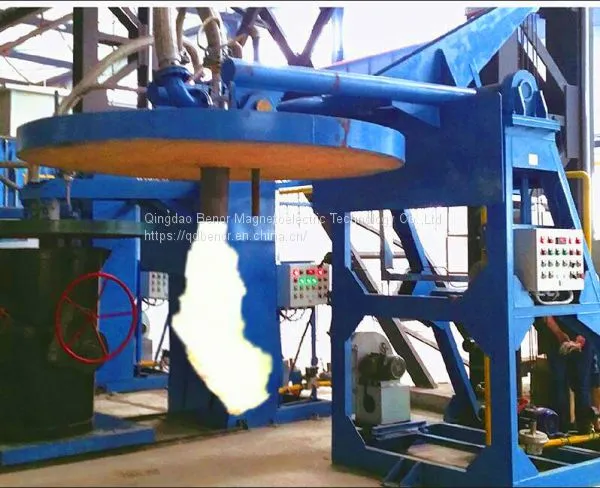

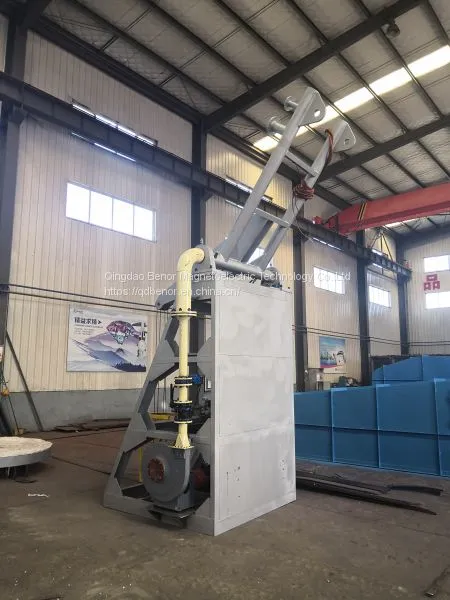

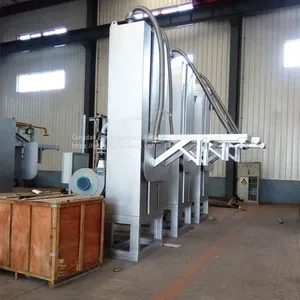

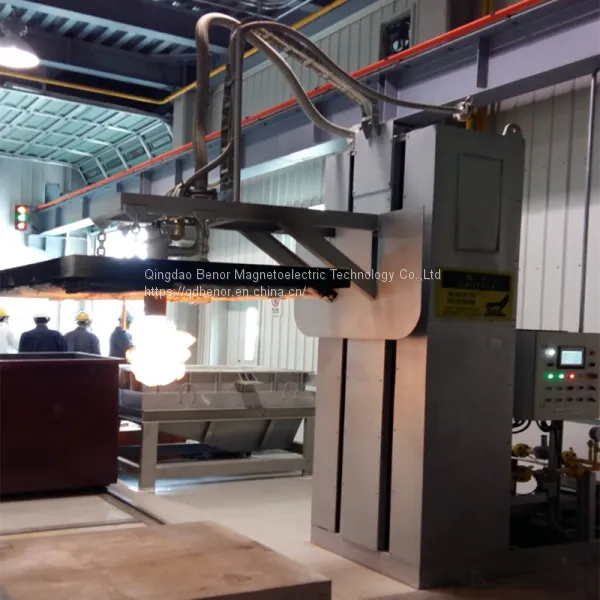

Vertical Type Ladle heater or Dryer

-1- High efficiency combustion blower.
-2- Control panel with PLC.
-3- Electromechanic or hydraulic mechanism.
-4- Ladle insulation using ceramic fiber or refractory concrete.
-5- High velocity gas burner in order to improve convection heat transfer.

Model
HZKBQ-LQ-3T
Suiting Ladle Capacity
3T
Diameter
1260 mm
Fue Gas Usage Level
25 Nm3/h
Flame Length
no less than 1.5m
Heating Temperature
no less than 1100 oC
Preheating Time
10-30 min
Control
PLC
We can provide pre-heaters/dryers for ladle/tundish within 250t.


Product Tags: ladle heater , ladle preheating device , ladle drying system
