Single-Crystalline Diamond Inserts

Single crystal diamond material feature: 1.High hardness: up to HV8000,100 direction. 2.High wear resistance: get high tool life 3.High cutting speed: get high machining efficiency 4.Perfect surface quality: single crystal diamond, surface mirror effect 5.High environment friendly 6.super...


Skype:Annawng

WhatsApp:+8615617785923

@moresuperhard.com



Single Crystal Diamond Material Feature:

1.High hardness: up to HV8000,100 direction.

2.High wear resistance: get high tool life

3.High cutting speed: get high machining efficiency

4.Perfect surface quality: single crystal diamond, surface mirror effect

5.High environment friendly

6.super precision machining

Application:

Non-ferrous metals, Aluminium alloy


Tools Types:

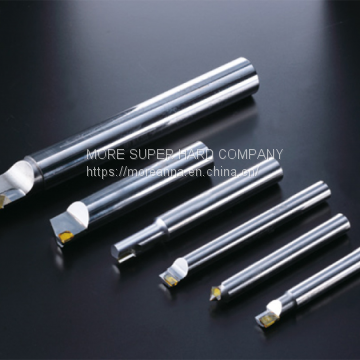

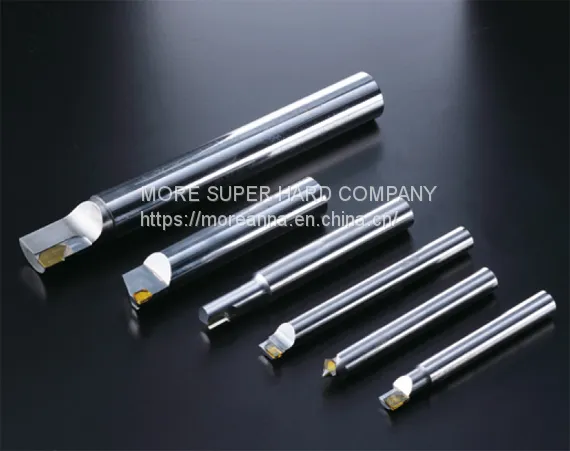

Mono diamond chamfer milling tools, Mono diamond boring tools, Mono diamond reamers, Mono diamond milling tools and other non-stand tools

Model Dimension Type
L C s d R Mono Diamond
CCGW060202 6.4 6.35 2.38 2.8 0.2 *

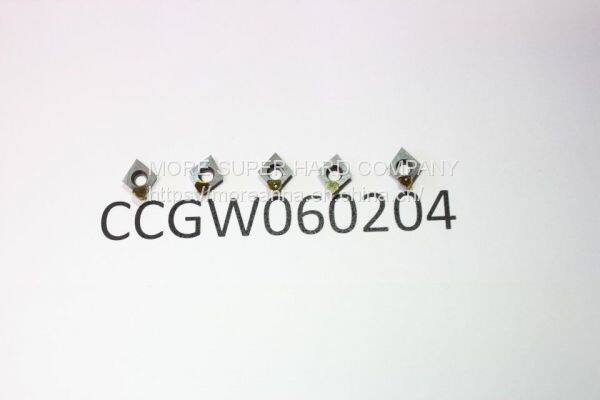

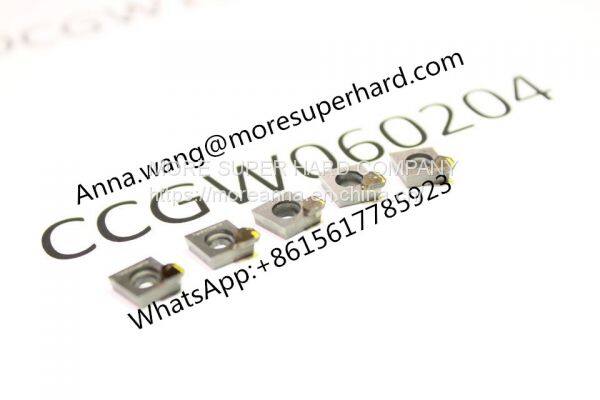

CCGW060204 6.4 6.35 2.38 2.8 0.4 *
CCGW060208 6.4 6.35 2.38 2.8 0.8 *
CCGW080202 8 7.94 2.38 3.4 0.2 *
CCGW080204 8 7.94 2.38 3.4 0.4 *
CCGW080208 8 7.94 2.38 3.4 0.8 *
CCMT060202 6.4 6.35 2.38 2.8 0.2 *
CCMT060204 6.4 6.35 2.38 2.8 0.4 *
CCMT060208 6.4 6.35 2.38 2.8 0.8 *
CCMT09T302 9.7 9.525 3.97 4.4 0.2 *
CCMT09T304 9.7 9.525 3.97 4.4 0.4 *
CCMT09T308 9.7 9.525 3.97 4.4 0.8 *
CNMA120404 12.9 12.7 4.76 5.16 0.4 *
CNMA120408 12.9 12.7 4.76 5.16 0.8 *
CNMA120412 12.9 12.7 4.76 5.16 1.2 *
CNMA120416 12.9 12.7 4.76 5.16 1.6 *
DCGW11T302 11.6 9.525 3.97 4.4 0.2 *
DCGW11T304 11.6 9.525 3.97 4.4 0.4 *
DCGW11T308 11.6 9.525 3.97 4.4 0.8 *
DCMT070202 7.7 6.35 2.38 2.8 0.2 *
DCMT070204 7.7 6.35 2.38 2.8 0.4 *
DCMT070208 7.7 6.35 2.38 2.8 0.8 *
DCMT11T302 11.6 9.525 3.97 4.4 0.2 *
DCMT11T304 11.6 9.525 3.97 4.4 0.4 *
DCMT11T308 11.6 9.525 3.97 4.4 0.8 *
DNGA150404 15.5 12.7 4.76 5.16 0.4 *
DNGA150408 15.5 12.7 4.76 5.16 0.8 *
DNGA150412 15.5 12.7 4.76 5.16 1.2 *
DNGN150404 15.5 12.7 4.76
0.4 *
DNGN150408 15.5 12.7 6.35
0.8 *
DNGN150412 15.5 12.7 6.35
1.2 *
DNMA150404 15.5 12.7 4.76 5.16 0.2 *
DNMA150408 15.5 12.7 4.76 5.16 0.8 *
DNMA150412 15.5 12.7 4.76 5.16 1.2 *
SCGW090304 15.5 12.7 4.76 5.16 0.4 *
SCGW090308 15.5 12.7 4.76 5.16 0.8 *
SCGW090316 15.5 12.7 4.76 5.16 1.6 *
SCGW120404 12.7 12.7 4.76 5.5 0.4 *
SCGW120408 12.7 12.7 4.76 5.5 0.8 *
SCGW120412 12.7 12.7 4.76 5.5 1.2 *
SNGA060202 6.35 6.35 2.38 2.8 0.2 *
SNGA060204 6.35 6.35 2.38 2.8 0.4 *
SNGA060208 6.35 6.35 2.38 2.8 0.8 *
SNGA090316 9.525 9.525 3.18 3.81 1.6 *
SNGA09T302 9.525 9.525 3.97 4.4 0.2 *
SNGA09T304 9.525 9.525 3.97 4.4 0.4 *
SNGN090302 9.525 9.525 3.18
0.2 *
SNGN090304 9.525 9.525 3.18
0.4 *
SNGN090308 9.525 9.525 3.18
0.8 *
SNGN120304 12.7 12.7 3.18
0.4 *
SNGN120308 12.7 12.7 3.18
0.8 *
SNGN120312 12.7 12.7 3.18
1.2 *
SNGN150408 15.5 12.7 4.76 5.16 0.8 *
SNGN150412 15.5 12.7 4.76 5.16 0.8 *
SNGN190412 15.5 12.7 4.76 5.16 1.2 *
SNMA060202 6.35 6.35 2.38 2.8 0.2 *
SNMA060204 6.35 6.35 2.38 2.8 0.4 *
SNMA060204 6.35 6.35 2.38 2.8 0.4 *
SNMA060208 6.35 6.35 2.38 2.8 0.8 *
SNMA070202 7.94 7.94 2.38 3.4 0.2 *
SNMA070202 7.94 7.94 2.38 3.4 0.2 *
SNMA070204 7.94 7.94 2.38 3.4 0.4 *
SNMA070208 7.94 7.94 2.38 3.4 0.8 *
SNMA09T301 9.525 9.525 3.97 4.4 0.1 *
SNMA09T302 9.525 9.525 3.97 4.4 0.2 *
SNMA09T302 9.525 9.525 3.97 4.4 0.2 *
SNMA09T304 9.525 9.525 3.97 4.4 0.4 *
SNMA09T304 9.525 9.525 3.97 4.4 0.4 *
SNMA09T308 9.525 9.525 3.97 4.4 0.8 *
SPGN090302 9.525 9.525 3.18
0.2 *
SPGN090304 9.525 9.525 3.18
0.4 *
SPGN090304 9.525 9.525 3.18
0.4 *
SPGN090308 9.525 9.525 3.18
0.8 *
SPGN090308 9.525 9.525 3.18
0.8 *
SPGN090308 9.525 9.525 3.18
0.8 *
SPGN090312 9.525 9.525 3.18
1.2 *
SPGN120304 12.7 12.7 3.18
0.4 *
SPGN120308 12.7 12.7 3.18
0.8 *
SPGN120312 12.7 12.7 3.18
1.2 *
SPGN120408 12.7 12.7 4.76
0.8 *
SPGN120412 12.7 12.7 4.76
1.2 *
SPGN150404 15.875 15.875 4.76
0.8 *
SPGN150412 15.875 15.875 4.76
1.2 *
TCGB090204 9.6 9.56 2.38 2.5 0.4 *
TCGB090208 9.6 9.56 2.38 2.5 0.8 *
TCGW090202 9.6 5.56 2.38 2.5 0.2 *
TCGW090204 9.6 5.56 2.38 2.5 0.4 *
TCGW090208 9.6 5.56 2.38 2.5 0.8 *
TCGW110204 11 6.35 2.38 2.8 0.4 *
TCGW110208 11 6.35 2.38 2.8 0.8 *
TCGW16T304 16.5 9.525 3.97 4.3 0.4 *
TCGW16T308 16.5 9.525 3.97 4.3 0.8 *
TNGA160402 16.5 9.525 4.76 3.81 0.2 *
TNGA160402 16.5 9.525 4.76 3.81 0.2 *
TNGA160404 16.5 9.525 4.76 3.81 0.4 *
TNGA160404 16.5 9.525 4.76 3.81 0.4 *
TNGA160408 16.5 9.525 4.76 3.81 0.8 *
TNGA160408 16.5 9.525 4.76 3.81 0.8 *
TNGA160412 16.5 9.525 4.76 3.81 1.2 *
TNGA160412 16.5 9.525 4.76 3.81 1.2 *
TNGN110302 11 6.35 3.18
0.2 *
TNGN110304 11 6.35 3.18
0.4 *
TNGN110308 11 6.35 3.18
0.8 *
TNMA160404 16.5 9.525 4.76 3.81 0.4 *
TNMA160408 16.5 9.525 4.76 3.81 0.8 *
TNMA160412 16.5 9.525 4.76 3.81 1.2 *
TPGB090204 9.6 5.56 2.38 2.5 0.4 *
TPGB090208 9.6 5.56 2.38 2.5 0.8 *
TPGN110302 11 6.35 3.18
0.2 *
TPGN110304 11 6.35 3.18
0.4 *
TPGN110308 11 6.35 3.18
0.8 *
VBGW160404 16.6 9.525 4.76 4.4 0.4 *
VBGW160408 16.6 9.525 4.76 4.4 0.8 *
VCMT110302 11.1 6.35 3.18 2.8 0.2 *
VCMT110304 11.1 6.35 3.18 2.8 0.4 *
VCMT110308 11.1 6.35 3.18 2.8 0.8 *
VCMT160404 16.6 9.525 4.76 4.4 0.4 *
VCMT160408 16.6 9.525 4.76 4.4 0.8 *
VCMT160412 16.6 9.525 4.76 4.4 1.2 *
VNGA160404 16.6 9.525 4.76 3.81 0.4 *
VNGA160408 16.6 9.525 4.76 3.81 0.8 *
VNGA160412 16.6 9.525 4.76 3.81 1.2 *
VNMA160402 16.6 9.525 4.76 3.81 0.2 *
VNMA160404 16.6 9.525 4.76 3.81 0.4 *
VNMA160408 16.6 9.525 4.76 3.81 0.8 *
VNMA160412 16.6 9.525 4.76 3.81 1.2 *
WNMA080404 8.7 12.7 4.76 5.16 0.4 *
WNMA080408 8.7 12.7 4.76 5.16 0.8 *
WNMA080412 8.7 12.7 4.76 5.16 1.2 *

We are one of the largest single-crystalline diamond inserts manufacturers and suppliers in China. If you are interested in our custom single-crystalline diamond inserts, please be free to place orders. Competitive price, top quality and good after-sale service can be assured.
