HPHT Diamond Lab Diamond, HPHT Synthetic Diamond

HPHT Diamond Lab Diamond, HPHT Synthetic Diamond thumbnail-1
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond thumbnail-2
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond thumbnail-3
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond thumbnail-4
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond photo-1
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond photo-2
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond photo-3
HPHT Diamond Lab Diamond, HPHT Synthetic Diamond photo-4
US$ 1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
more super hard
Place of Origin:
China
Model Number:
1
Contact Supplier Request Quote Chat Now
More Super Hard Company
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name more super hard
Place of Origin China
Model Number 1
Size all
Type Other, tools

Single crystal synthetic diamond plate is  produced by high pressure, high temperature(HPHT) synthesis,  it  has highly consistent and predictable properties and behaviour, used for cutting tools for non-ferrous and non-metallic material, dresser for wheel dressing, a variety of speciality knives, burnishing tools, wear parts, wire drawing dies,  and  the seeds of CVD.

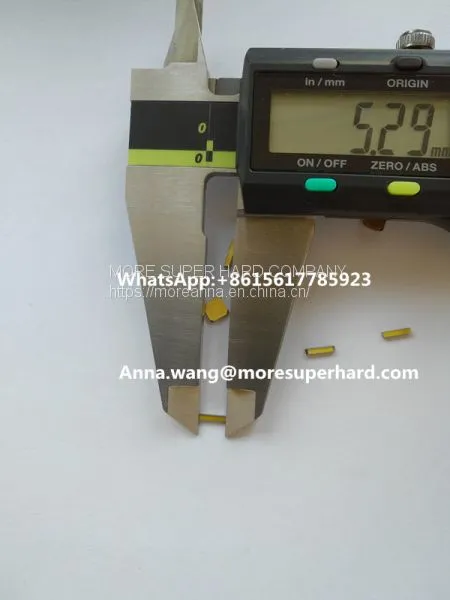

At present the biggest size we can produce is 7*7*1mm

Skype:Annawng

WhatsApp:+8615617785923

@moresuperhard.com


We have own laser cutting machine, we can provide varous shape of diamond plates. Like round shape, square shape,triangle shapeetc. We can also customized size and shapes  according to customer’s requirement.

Standard thickness:  1.1mm

Tolenrance of thickness :   +- 0.1mm

Orientation: 4pt(100)

The normal size:

Grade Photo Features Shape Available size (mm)
JSD12 JSD12 Yellow color, At least 2 sharp corners,
With minimal visible inclusions		 Near square 2.5*2.5*1.1
3.0*3.0*1.1
3.5*3.5*1.1
JSD22  jsd22 Yellow or dark yellow color,
At least 2 sharp corners,
With slightly  visible inclusions,
Cheap price.		 Near square 2.5*2.5*1.1
3.0*3.0*1.1
3.5*3.5*1.1
4.0*4.0*1.1
JSD13  jsd13 Yellow color,High transparency,
Irregular corners,
With minimal visible inclusions		 Near square 2.0*2.0*1.1
2.5*2.5*1.1
3.0*3.0*1.1
3.5*3.5*1.1
4.0*4.0*1.1
4.5*4.5*1.1
5.0*5.0*1.1
5.5*5.5*1.1
6.0*6.0*1.1
JSD23  jsd23 Yellow or dark yellow color,
Irregular corners,
With slightly  visible inclusions.
Cheap price.		 Near square 2.0*2.0*1.1
2.5*2.5*1.1
3.0*3.0*1.1
3.5*3.5*1.1
4.0*4.0*1.1
4.5*4.5*1.1
JSD23T  jsd23t Yellow or dark yellow color,
Irregular corners,
With slightly  visible inclusions,
1.4mm~ 1.7mm thickness.
Cheap price,		 Near square 2.5*2.5*1.3
3.0*3.0*1.4/1.5
3.5*3.5*1.4/1.5
4.0*4.0*1.4/1.5/1.6/1.7
4.5*4.5*1.4/1.5/1.6/1.7
JSD11-Round  JSD11 round Laser cut to round shape.with precise laser
cut edge.		 Round Φ0.8*0.7
Φ1.0*0.8
Φ1.2*1.0
Φ1.6*1.0
Φ2.7*1.0
Φ2.7*1.2
JSD11-Square  JSD11 square Laser cut to perfect square shape.with precise laser
cut edge.		 Square 2.0*2.0*1.1
2.5*2.5*1.1
3.0*3.0*1.1
JSD11- Rectangle  JSD11 retangle Laser cut to perfect rectangle logs,with precise laser
cut edge.		 Rectangle 2.5*2.0*1.1
3.0*1.0*1.1
3.0*1.5*1.5
3.0*2.0*1.5
4.0*2.0*1.1
4.0*2.0*1.5
4.0*2.0*1.7
4.0*2.5*1.1
4.0*2.5*1.5
4.0*2.5*1.7
4.5*3.0*1.1
4.5*3.0*1.1
4.5*3.0*1.7
JSD11- Cube  JSD11-cube Laser cut to small thick square cubes,with precise laser
cut edge.		 Near cube 1.0*1.0*1.0
1.1*1.1*1.1
1.2*1.2*1.2
1.4*1.4*1.3
1.5*1.5*1.4
1.6*1.6*1.4
1.7*1.7*1.5
1.8*1.8*1.6
JSD23-Retangle  JSD23-retangle Laser cut to near rectangle shape,with  at least two sharp corners.Cheap price. Near
Rectangle		 2.5*1.0*1.1
3.0*1.5*1.1
3.0*1.5*1.5
4.0*2.0*1.1
4.0*2.0*1.5
4.0*2.0*1.7
4.5*2.0*1.1
4.5*2.0*1.5
4.5*2.0*1.7
JSD13-Retangle  JSD13 Reg———————— Near rectangle shapes forming during  synthesis procedure,
The cutting edge is 110 plane .		 Near
Rectangle		 2.0*1.5*1.1
2.5*2.0*1.1
3.0*2.5*1.1


Product Tags: Lab diamond , Single Crystal Synthetic diamond , synthetic diamonds , Single crystal synthetic diamond plates , HPHT diamond , single crystal synthetic diamond , single crystal diamond , HPHT synthetic diamond , HPHT diamond Lab diamond
