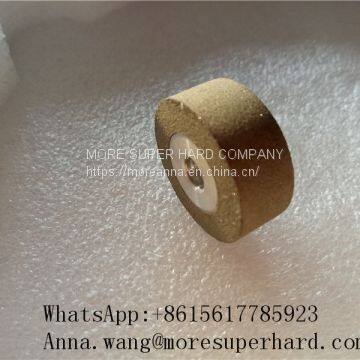

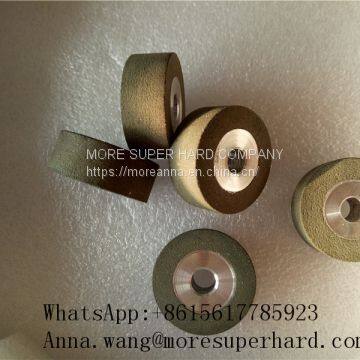

CBN grinding wheel for bearing internal cylindrical grinding
CBN grinding wheel for bearing internal cylindrical grinding
Wheel for bearing
Shapes:1A8 1A8W 3A1 1A1
Diameter :D10 -30mm
Bond:Vitrified.
Abrasives:CBN.
Machines:TOYO、YONGKE、Mikrosa、KOYO.
Application:Inner diameter,out race and surfaces of bearing.
Features:Good sharpening and shape holding,higher removal rate and efficiency,good heat dissipation
dressing interval reaches to 300 pieces.roundness,cylindricity,straightness2um,CPK1.33.
Internal grinding Wheels for pump nozzle
Shape:1A8W.
Diameter:D4-30mm.
Bond:Vitrified
Abrasives:CBN
Machines:UVA Nomyline.
Aplication:Hole grinding of pump nozles.

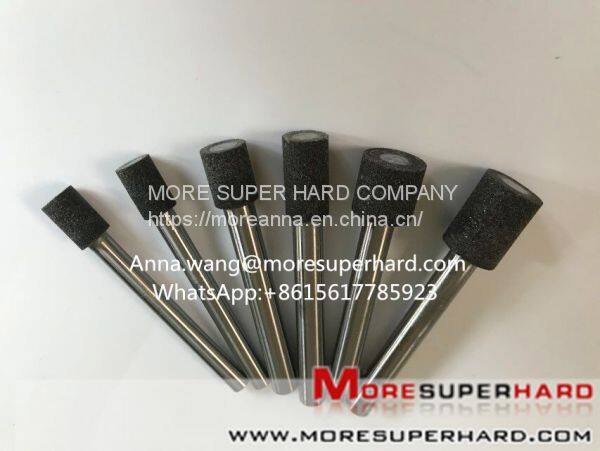

Internal grinding Wheels for universal Joint
Shape:1A8 1A8W
Diameter:6 30mm.
Bond:Vitrified.
Abrasives:CBN.
Grinders:EX-CELL-O XG692 XG662、MECCANORA.
Applications of internal grinding wheel
Mainly in the filed of Automobile,such as CV joint,Starlike Sleeve,Inner and out race,Case etc.
Features of internal grinding wheel
Good sharpening and shape holding,higher removal rate and ficiece 6 races ground by only 60-80 seconds the qainy has reached to that imported.
Specification of internal grinding wheel
Type |
Diameter(mm) |
Hole(mm) |
|
1A1 1A1W 1A8 Thumb type
|
10 |
3.5, 5, 6.5, 7 |
12 |
4, 4.5, 6 |
|
13 |
4.5, 7 |
|
14 |
6, 7.5, 10 |
|
15 |
8 |
|
16 |
6, 8, 10, 11 |
|
17 |
8, 11, 13 |
|
18 |
6, 8 |
|
20 |
8, 10, 14 |
|
22 |
8, 10, 16, 18 |
|
23 |
10 |
|
24 |
13 |
|
25 |
6, 10, 13, 15, 16, 17, 19 |
|
26 |
10, 20 |
|
27 |
6, 10, 12, 19 |
|
30 |
22, 24 |
|
32 |
20 |
|
35 |
23, 30 |
|
40 |
30, 34 |
|
45 |
Application:
Workpiece type: Hydraulic lifters of automobiles, nozzles, valves, CVJ outer races and raceways, oil pump rotor, bearing parts, compressor and pump parts.
Application process: Rough grinding and fine grinding.
Workpiece material: Grey cast iron, nodular cast iron, alloy cast iron, bearing steel, cemented steel and carbon steel, etc
Application of cbn internal grinding wheel
1.It ncludes steering pump and compressor, bearing races, injection nozzles, hydraulic lifter, gear bores and many others.
2. It can be used on high precision CBN internal grinding machines.
3.It is applied to grind bearing's internal hole, internal grinding of reciprocating refrigeration compressor cylinder internal hole and shaft holes.
4.It suit for internal and external groove grinding of bearing, constant velocity cardan joint's ball of truck drive shaft and bell jar.
