Attention:
As Ameison have more than 600 models antennas in our factory, in order to offer the optimum models and reasonable prices, please kindly let us know the frequency range, gain, connector style and cable length(if available), and if here this showed model is your required, that can be the best thus we can respond directly.
And please let us know whether your antenna should pass 3rd intermodulation LOW PIM(IM3) standard OR common standard, that is there have different relevant prices between them.

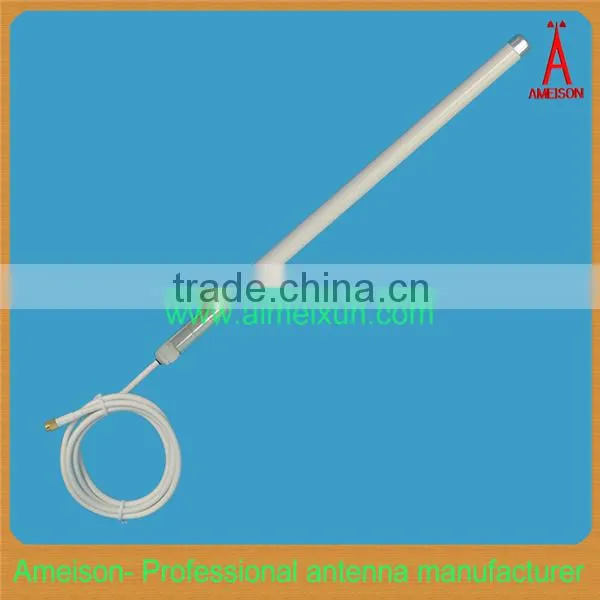

7dbi 2400 - 2483 MHz Omnidirectional Fiberglass Antenna mast wireless network antenna wifi wireless antenna
AMXF-2400-7
Feature:
Exquisite appearance
Good impact resistance, waterproofing and anticorrosion ability
Full day working
Optimized dimension
High gain, low standing wave, strong anti-interference ability
Application:
2.4 GHz WLAN system Wi-Fi ISM system

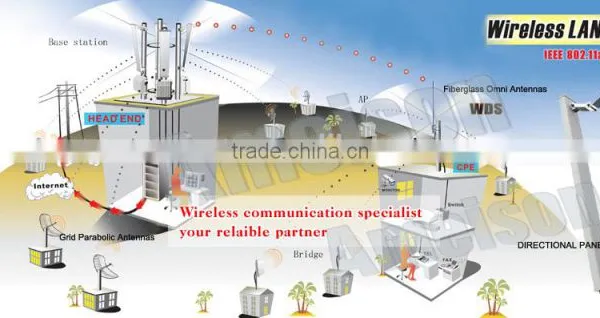

Point-to-multipoint system
|
AMXF-2400-7 Electrical Specifications | |
Frequency range(MHz) |
2400~2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
7 |
Half-power beam width(°) |
H:360 V:15 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Vertical, Linear |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
N Female or Requested |
Mechanical Specifications | |
Dimensions (mm) |
Φ18.2*495 |
Antenna weight(kg) |
0.35 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Radome color |
Gray or White or others |
Radome Material |
Fiberglass |
Waterproof Standard |
IP65/ IP67 |

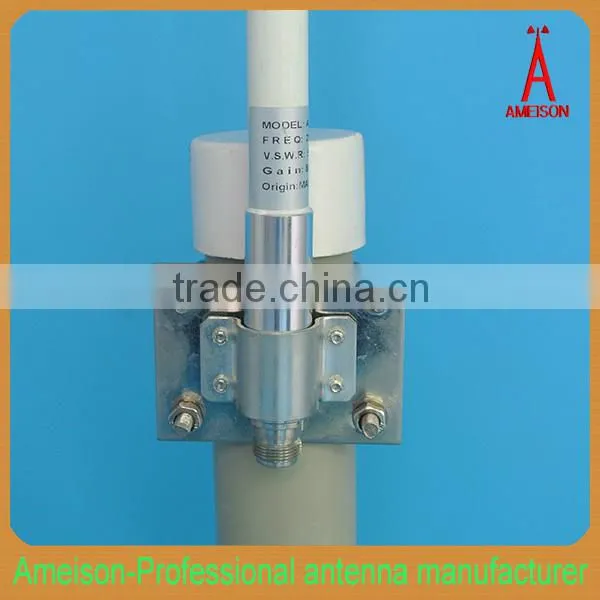

Mounting way |
Wall/ Pole-holding |
Mounting hardware(mm) |
35 - 50 |
