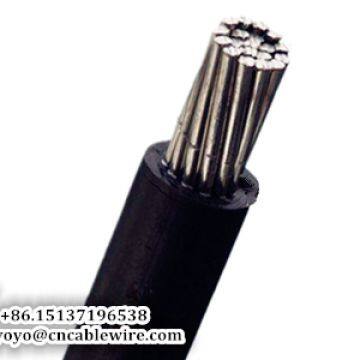

Help Center1kV Aerial Insulated Cable
Related Products
-
Aerial Insulated Cables With Rated Voltage 10 kVUS$ 0.2 - 0.7MOQ: 10000 Meters -
Aerial Insulated Cables With Rated Voltage 1 kV or LowerUS$ 0.2 - 0.7MOQ: 10000 Meters
-
Aerial Bundle Cable(ABC)US$ 0.2 - 0.7MOQ: 10000 Meters
-
Multi-core Overhead Insulated CableUS$ 0.2 - 0.7MOQ: 10000 Meters
-
0.6/1kV XLPE Insulated Overhead CableUS$ 0.2 - 0.7MOQ: 10000 Meters
Usage
This product is applicable to the exchange rated voltage 0.6/1 kV and below overhead power lines with a lead users line.
Model
| Model | Name |
| JKV | Copper core PVC insulated aerial cables |
| JKLV | Aluminum core PVC insulated aerial cables |
| JKY | Copper conductor PE insulated aerial cables |
| JKLY | Aluminum conductor PE insulated aerial cables |
| JKYJ | Copper conductor XLPE insulated aerial cables |
| JKLYJ | Aluminum conductor XLPE insulated aerial cables |
Specifications
|
Nominal section (mm2) |
Min. conductor number/ pressed OD (mm) |
Thickness (mm) |
The average maximum diameter (mm) |
Conductor resistance at 20℃ (Ω/km) |
70℃ Min. insulation resistance (mΩ/km) |
|
| 10 | 6/3.8 | 1.0 | 6.5 | 1.906 | 3.08 | 0.0067 |
| 16 | 6/4.8 | 1.2 | 8.0 | 1.198 | 1.91 | 0.0065 |
| 25 | 6/6.0 | 1.2 | 9.4 | 0.749 | 1.20 | 0.0054 |
| 35 | 6/7.0 | 1.4 | 11.0 | 0.540 | 0.868 | 0.0054 |
| 50 | 6/8.4 | 1.4 | 12.3 | 0.399 | 0.641 | 0.0046 |
| 70 | 12/10.0 | 1.4 | 14.1 | 0.276 | 0.443 | 0.0040 |
Use condition
1.The long-term continuous allowable working temperature of the cable conductor: PVC, polyethylene insulation should not exceed 70℃; cross-linked polyethylene insulation should not exceed 90℃.
2.The laying temperature of the cable should not be lower than -20℃.
3.Permissible radius of the cable: When the cable outer diameter (D) is less than 25mm, it should not be less than 4D; When the cable diameter is 25mm and above, it should be no less than 6D.
Delivery length
The length of delivery is stipulated by both parties, and the cable length measurement error should not exceed ±0.5%.
