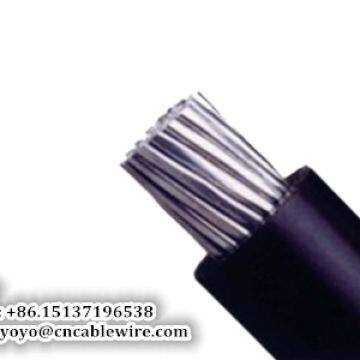

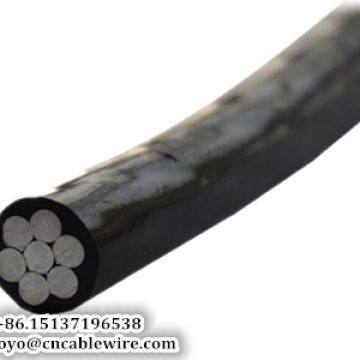

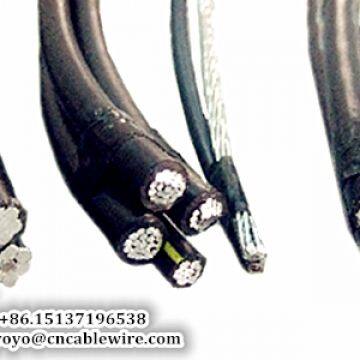

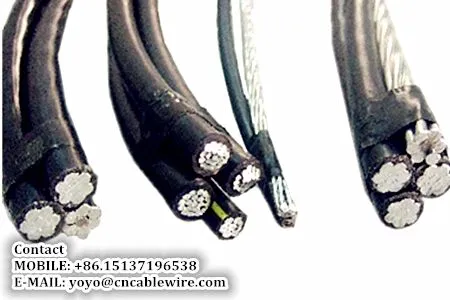

Aerial Insulated Cables with Rated Voltage 1 kV or Lower
Standards implemented of Aerial Insulated Cables
This product is produced according to GB/T12527-2008 standard. The standard refers to the use of IEC502, IEC227, and is applied to insulated aerial cables with rated voltage of 0.6/1 KV and below for overhead power lines.
Type and Designation
|
Type |
Product Designation | Main application |
| JKV-0.6/1 | CU core PVC aerial insulated cable with rated voltage 0.6/1kV |
Aerial fixed laying and leading wire and so on |
| JKLV-0.6/1 | Al core PVC aerial insulated cable with rated voltage 0.6/1kV |
|
| JKY-0.6/1 | CU core PE aerial insulated cable with rated voltage 0.6/1kV |
|
| JKL-Y-0.6/1 | AL core PE aerial insulated cable with rated voltage 0.6/1kV |
|
| JKYJ-0.6/1 | CU core XLPE aerial insulated cable with rated voltage 0.6/1kV |
|
| JKLYJ-0.6/1 | AL core XLPE aerial insulated cable with rated voltage 0.6/1kV |
Aerial Insulated Cables Specification
| Type | Number of core | Nominal section (mm2) |
|
JKV,JKLV,JKY,JKLY |
1 | 6-240 |
|
JKYJ,JKLYJ |
2-4 | 6-240 |
|
JKLV,JKLY,JKLYJ |
3+K | 6-240 |
Using feature of Aerial Insulated Cables
The long-term allowable operating temperature of cable conductors:
1. Polyvinyl chloride, polyethylene insulation should not exceed 70℃;
2. The cross-linked polyethylene insulation should not exceed 90℃, and the laying temperature of the cable should not be lower than -20℃.
Permissible bending radius of the cable:
1. Cable diameter (D) less than 25mm should not be less than 4D;
2. The cable outer diameter (D) of 25mm and above shall not be less than 6D.
