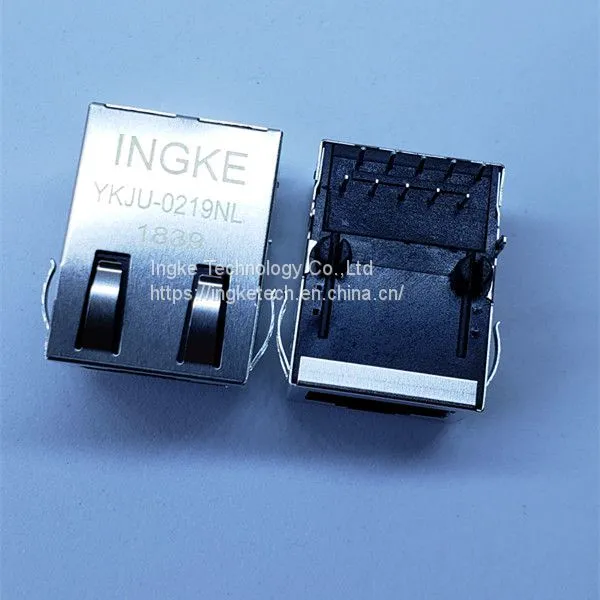

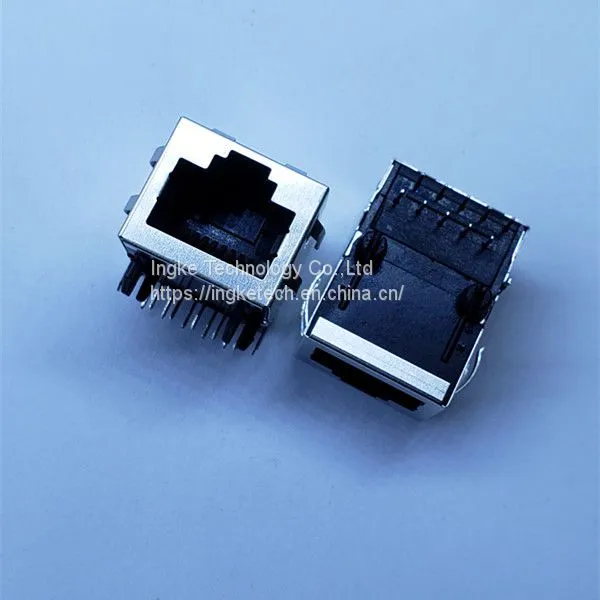

Ingke YKJU-0219NL 100% Cross JXD1-0005NL 1 Port 100BASE-TX Through Hole Tab Up Magnetic RJ45 Modular Connectors
Part Number:JXD1-0005NL
Made in China:YKJU-0219NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation:90°Angle (Right)
Termination:Solder
LED Color:Does Not Contain LED
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up
Contact Material:Copper Alloy
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:30µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;JXD3-0002NL J0011D11NL J0012D21NL J1006F01PNL JKM-0001NL JXD2-0011NL JXD3-0003NL JXD0-0001NL JV006I21NL JV006I21NLT J1006F21NL JXD1-0002NL J0006D21NL JXD1-0001NL JKM-0011NL JXD3-0001NL JXD3-0004NL JXD1-0026NL JXD0-2015NL JXD1-2015NL JXD1-2016NL JK0-5101NL JT7-1104NL JT7-1115NL JXD1-0005NL J0C-0005NL J0C-0006NL J0C-0006NLT JKM-0009NL JKM-0008NL JXD0-4005NL JKM-0010NL JXD0-0002NL
