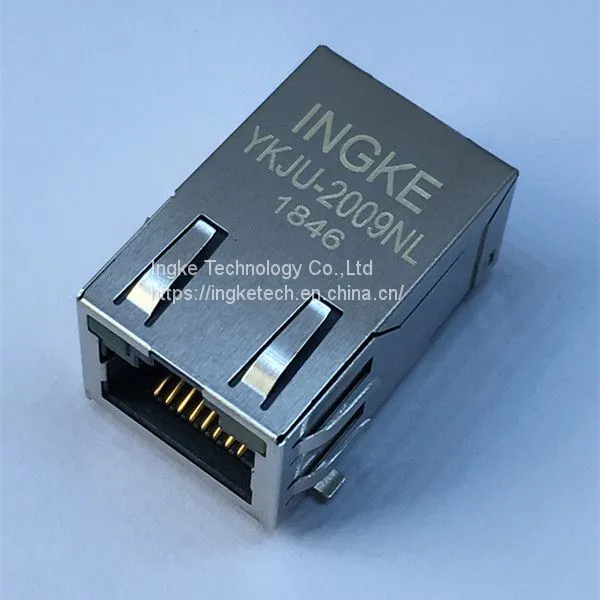

Ingke YKJU-2009NL 100% Cross J3011G21DNL Single Port SMT 100 Base-T Ethernet 8P8C Connector RJ45
Part Number:J3011G21DNL
Made in China:YKJU-2009NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Surface Mount
Orientation:90°Angle (Right)
Termination:Solder
LED Color:Green - Yellow
Number of Cores per Jack:4
Shielding:Shielded
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Contact Finish Thickness:30µin (0.76µm)
Flammability Rating:UL 94 V-0
Shield Material:Copper Ally
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;J0B-2014NL JXD6-1100NL JXD0-0008NL JXD1-0007NL JXD0-0015NL JXD1-0025NL JXD2-0015NL JXD1-0019NL JXD1-0026NL JXD0-2015NL JXD1-1001NL JXD1-0009NL JXD0-0019NL JXD1-0015NL JTL-U1002NL JTL-U1003NL JK0-0145NL JXD0-2019NL JXD0-4015NL J0B-3563NL JTL-U1001NL JXD6-0002NL JXD4-1002NL JXD0-0010NL JK0-2500NL JXD0-0012NL JXD0-0029NL JK0-0229NL JXD0-0025NL JXD2-0011NL JXD0-0002NL J0B-2015NL JK0-2501NL JXK0-2500NL JT4-1128HL
