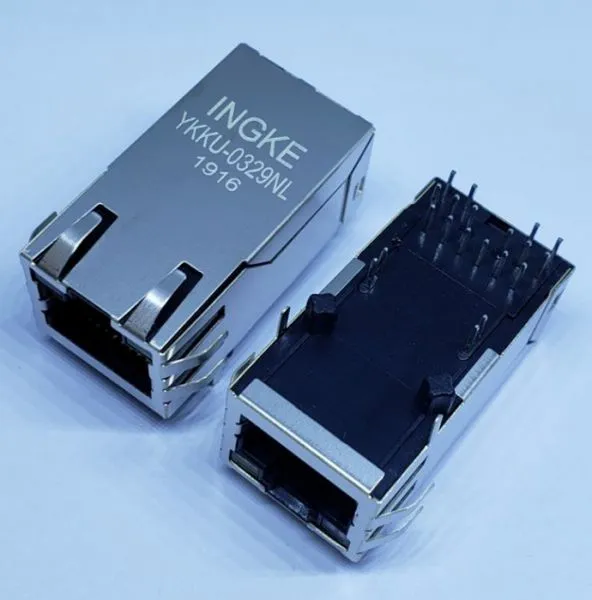

Ingke YKKU-0329NL 100% cross 0826-1X1T-GH-F Through Hole 1 Port RJ45 Magnetic Modular Jacks 1000 Base-T PoE+
Bel Part Number:0826-1X1T-GH-F
Made in China:YKKU-0329NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:1
Number of Rows:1
Applications:10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Mounting Type:Through Hole
Orientation:90°Angle(Right)
Termination:Solder
LED Color:Green,Orange-Yellow
Number of Cores per Jack:8
Shielding:Shielded,EMI Finger
Features:Board Guide
Tab Direction:Up
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:30µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;
0826-1X1T-KH-F L826-1M1T-23-F 0826-1Z1T-23-F 0826-1B1T-23-F 0826-1D1T-23-F 0826-1E1T-23-F 0826-1M1T-23-F 0826-1L1T-23-F 0821-1D1T-43-F 0821-1G1T-43-F L830-1J1T-47 V890-1RX1-A1 V895-1001-AW SS73100-047F L8BE-1G1T-91A
