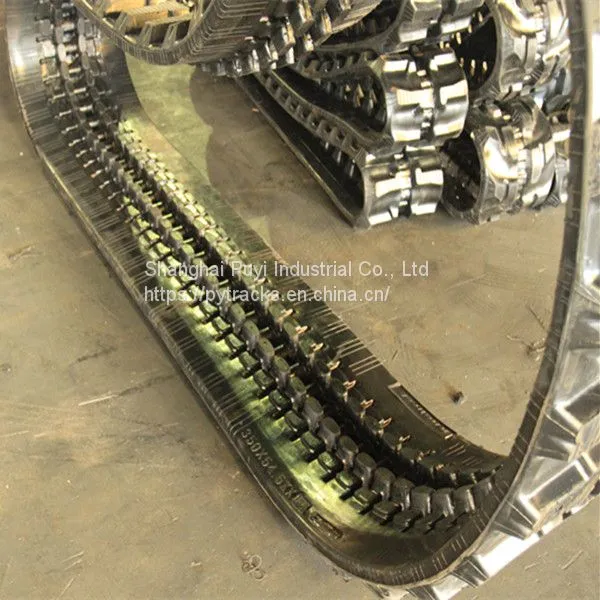

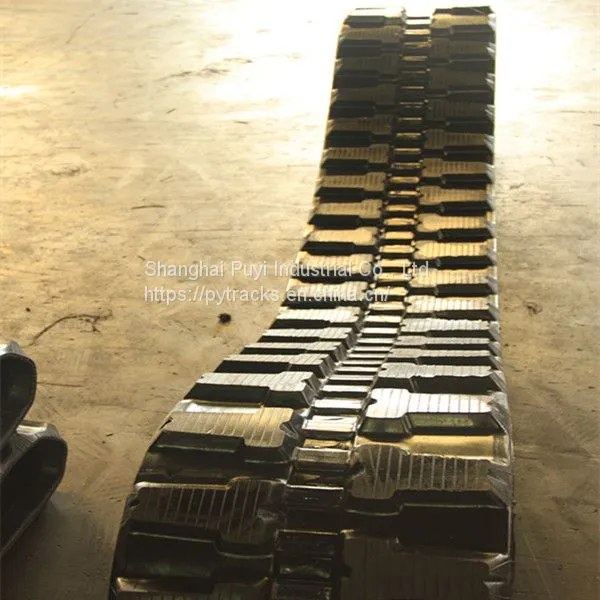

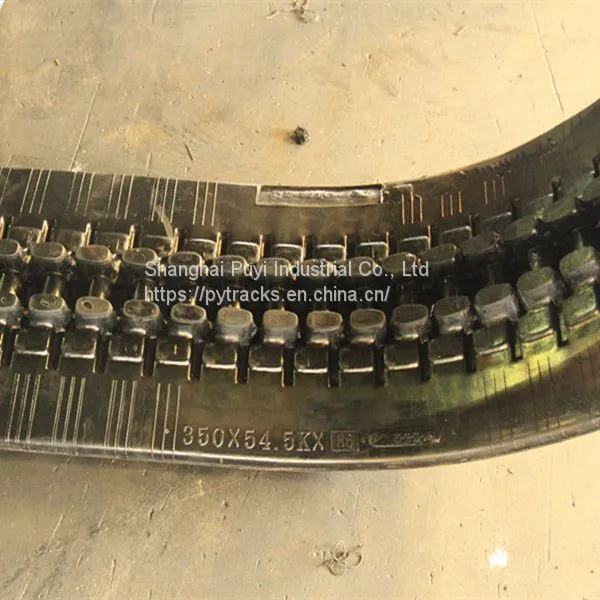

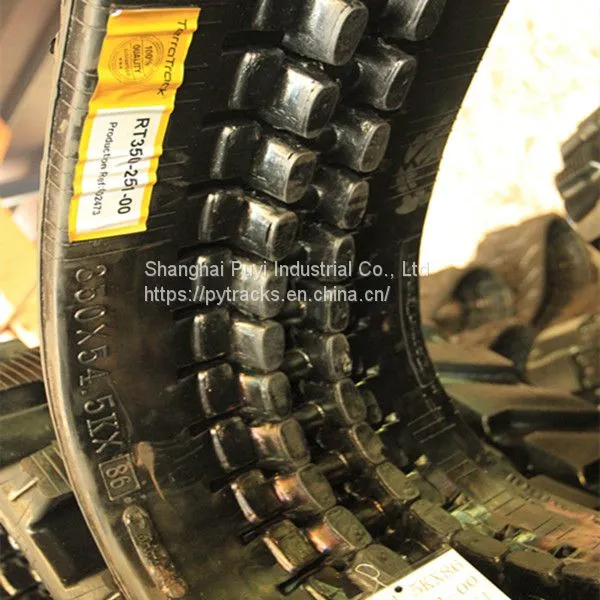

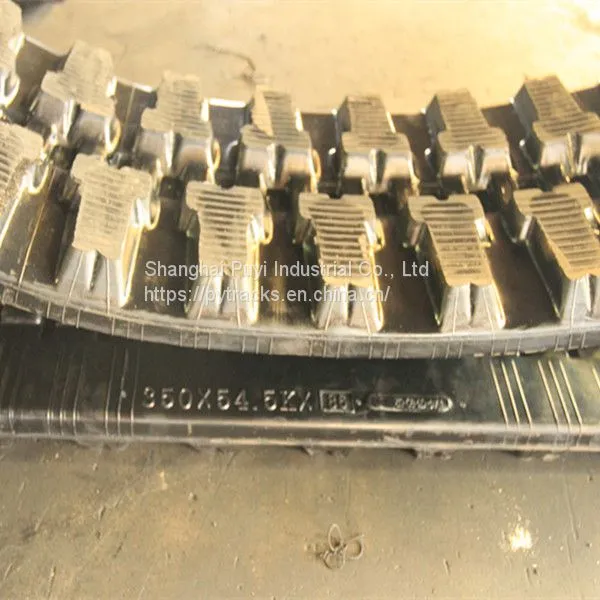

Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3

Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3 photo-1
Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3 photo-2
Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3 photo-3
Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3 photo-4
Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3 photo-5
US$ 475 - 487 MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
PuYi
Place of Origin:
China
Model Number:
350*54.5K*86
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
20 days
Brand Name PuYi
Place of Origin China
Model Number 350*54.5K*86

1. Specifications of the rubber track:

1.Name of commodity

Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3
2.Width 350mm
3.Pitch 54.5mm
4.Links 86
5.Total Length 4687mm
6.Weight 198.66kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free


1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Conventional and interchangeable type

5). OEM orders of complete track systems are welcome

6). Comprehensive range of standard rubber crawler track systems are available

7). Undercarriages and bases are available for a wide range of machinery

8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine


9). Certification: ISO9001: 2000


2. The feature of rubber tracks:

(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.

(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed

Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration

Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.

(5). Low ground pressure

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm, a major reason for its use on the wet and soft terrain.

(6). Superior traction

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

3. About Us

Shanghai PuYi Industrial Co., Ltd mainly produce Rubber Tracks in China. With Rubber Factory in Shanghai we are strong in offering various of Rubber Tracks for: Crawler, Bulldozer, Excvavtor, Asphalt Paver, (Mini)Harvester, Snowblower, Snowmobile, Wheelchair, Robot...Etc.
Yanmar, Terex, Kubota, Bridgestone Rubber Tracks...OEM are available.


Parameter of more size:


Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links Width*Pitch length(mm) Number of Links
130*72 28-53 300*52.5K 72-84 400*72.5KW 68-92
150*60 28-49 300*52.5KW 72-92 400*74 68-76
150*72 29-40 KB300*52.5 72-92 400*75.5K 74
170*60 30-40 KB300*52.5N 72-98 B400*86 52-55
180*60 30-40 JD300*52.5N 72-98 400*90 42-56
180*72 30-58 300*53K 80-84 Y400*142 36-37
180*72K 30-37 300*55 70-86 400*144 36-41
B180*72K 34-51 300*55.5K 76-82 Y400*144K 36-41
B180*72A 30-51 300*71K 72-55 420*100 50-58
H180*72 30-50 300*109N 25-42 450*71 76-88
190*60 30-40 K300*109 37-41 DW450*71 76-88
190*72 34-39 300*109WK 35-42 450*73.5 76-84
200*72 34-47 B300*84 78-52 450*76 80-84
200-*72K 37-47 T300*86K 48-52 450*81N 72-80
230*48 60-84 320*52.5 72-98 450*81W 72-78
230*48K 60-84 B320*52.5 68-98 KB450*81.5 72-80
230*72 42-56 320*54 70-84 K450*83.5 72-74
230*72K 42-56 B320*86 49-52 B450*84 53-56
230*96 30-48 320*90 52-56 B450*86 52-55
230*101 30-36 320*100 38-54 450*90 58-76
250*47K 84 320*100W 37-65 KU450*90 58-76
250*48.5K 80-88 Y320*106K 39-43 T450*100K 48-65
250*52.5K 72-78 350*52.5 70-92 K450*163 38
250*72 47-57 350*54.5K 80-86 485*92W 74
B250*72 34-60 B350*55K 77-98 500*90 76-82
B250*72B 42-58 350*56 80-86 500-92 72-84
E250*72 37-58 350*75.5K 74 500*92W 78-84
250*96 35-38 350*90 42-56 500*100 71
250*109 35-38 350*100 46-60 K500*146 35
260*55.5K 74-80 350*108 40-46 600*100 76-80
Y260*96 38-41 350*109 41-44 600*125 56-64
260*109 35-39 Y370*107K 39-41 700*100 80-98
280*72 45-64 400*72.5N 70-80 750*150 66
Y280*106K 35-42 400*72.5W 68-92 800*125 80
300*52.5N 72-98 Y400*72.5K 72-74

300*52.5W 72-92 KB400*72.5K 68-76


1.Name of commodity

Excavator Rubber Tracks 350*54.5k*86 for Kubota Kx121-3
2.Width 350mm
3.Pitch 54.5mm
4.Links 86
5.Total Length 4687mm
6.Weight 198.66kg
7.Material Rubber & Steel
8.Steel cord type Continuous inner steel cord with joint free
