JARCH 2A CCTV Camera Capsule Slip Ring

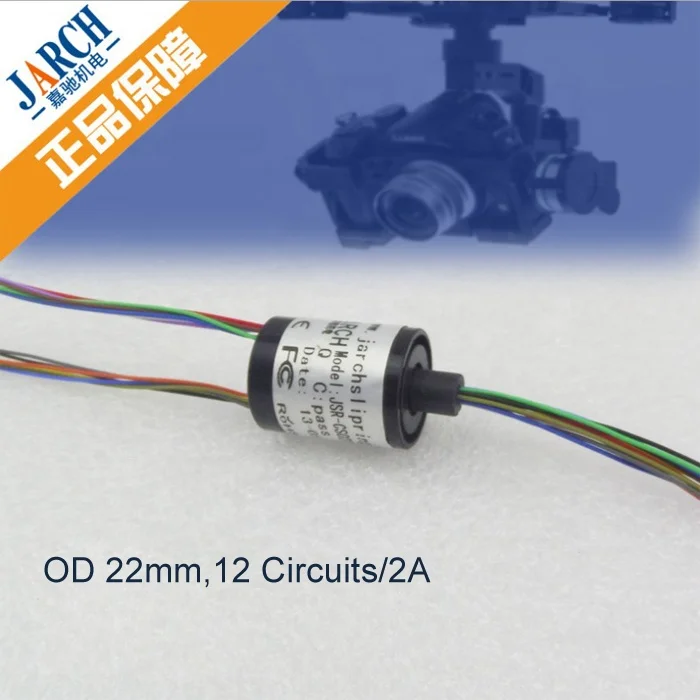

Quick Details:
| Model Number: | JSR-CS022-12Q | Current Rating: | 2A/Ring maximum |
| Outer Size: | 22mm | Circuits: | 12 |
| Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
| Speed(rpm): | 250RPM | Lead Wire: | UL Teflon Awg28,color-coded, |
For any tiny voltage, high frequency of rotator, EMF, thermocouple, computer signals, Strain the gauge, current, system Bus, Can Bus, Profibus, RS422, RS485, PLC control, digital/analog video, digital audio, gigabit Ethernet, weight sensor signal and power connection.
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Common fields of this product: aerial photography uav, high-speed ball, small yuntai, stage lamp, small ferris wheel.
The JSR-CS022-12Q, with 12 wires and compact 22mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.

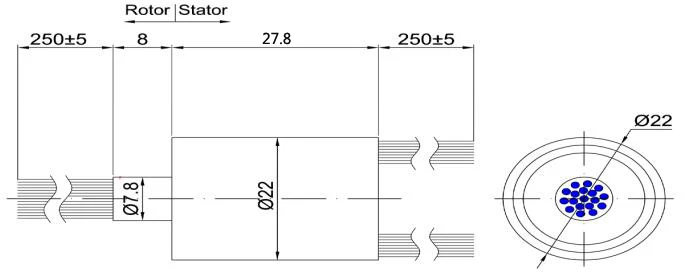

Dimension:
2A CCTV Camera Capsule Slip Ring
Specification:
| Operating Speed | 0-250 rpm |
| Number of Circuits | 12 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A per circuit |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery
Applications:
CCTV Monitoring System.
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment
2A CCTV Camera Capsule Slip Ring

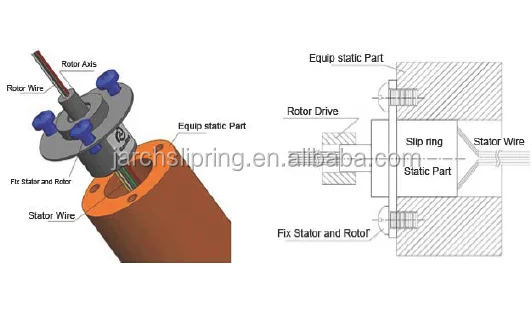

Installation Instructions
JARCH main products:
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
If you have any questions, pls contact us without any hesitation.
