Rotary Electrical Interface Capsule Slip Ring Assemblies 12.4mm With Miniature Flange Product Description The CS Series Capsule Slip Ring is a Standard and Off-the-shelf Unit That Uses Gold Contacts on the Rotary Interface. Color-coded Lead Wires AreUS$ 150 - 190MOQ: 2 Pieces -
CCTV Monitoring System 360 Rotating Long Life Mini Capsule Slip RingsUS$ 9 - 100MOQ: 10 Pieces
-
Micro High Speed Slip Ring Capsule Sliprings OD6.5mm 4/6/8/12 Circuits 1A Fiber Optic Rotary JointUS$ 9 - 100MOQ: 10 Pieces
-
Mini Slip Ring Capsule Sliprings OD6.5mm 4/6/8/12 Circuits 1A Power Rotary Union Joints for Current Signal TransmissionUS$ 9 - 100MOQ: 10 Pieces
-
Tiny Slip Ring With 6 Circuits 1A of OD 6.5mm With Flange Capsule SlipringsUS$ 9 - 100MOQ: 10 Pieces
Rotary electrical interface capsule slip ring assemblies 12.4mm with Miniature Flange
The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

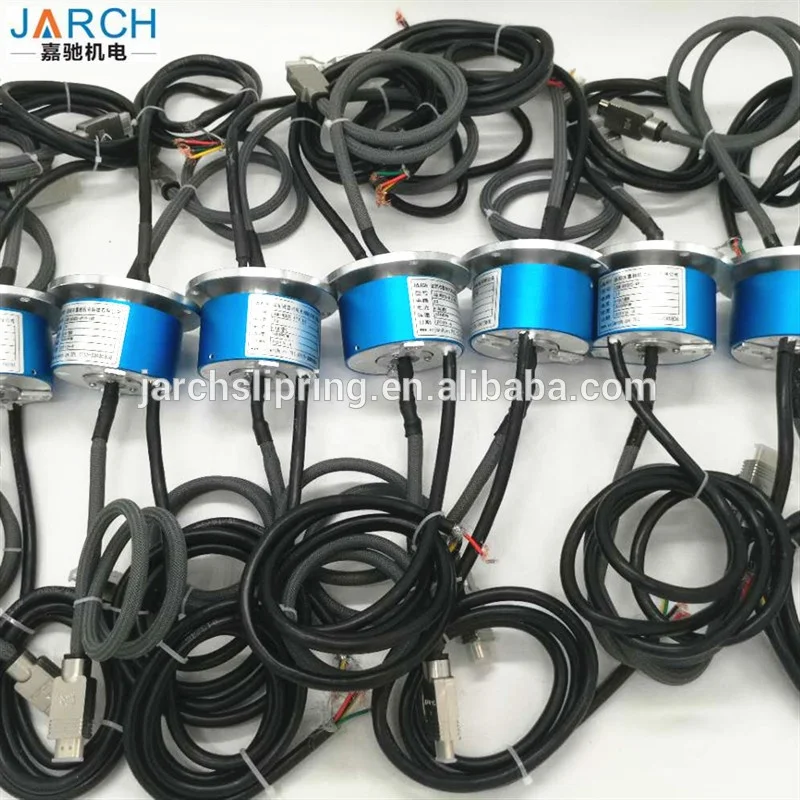

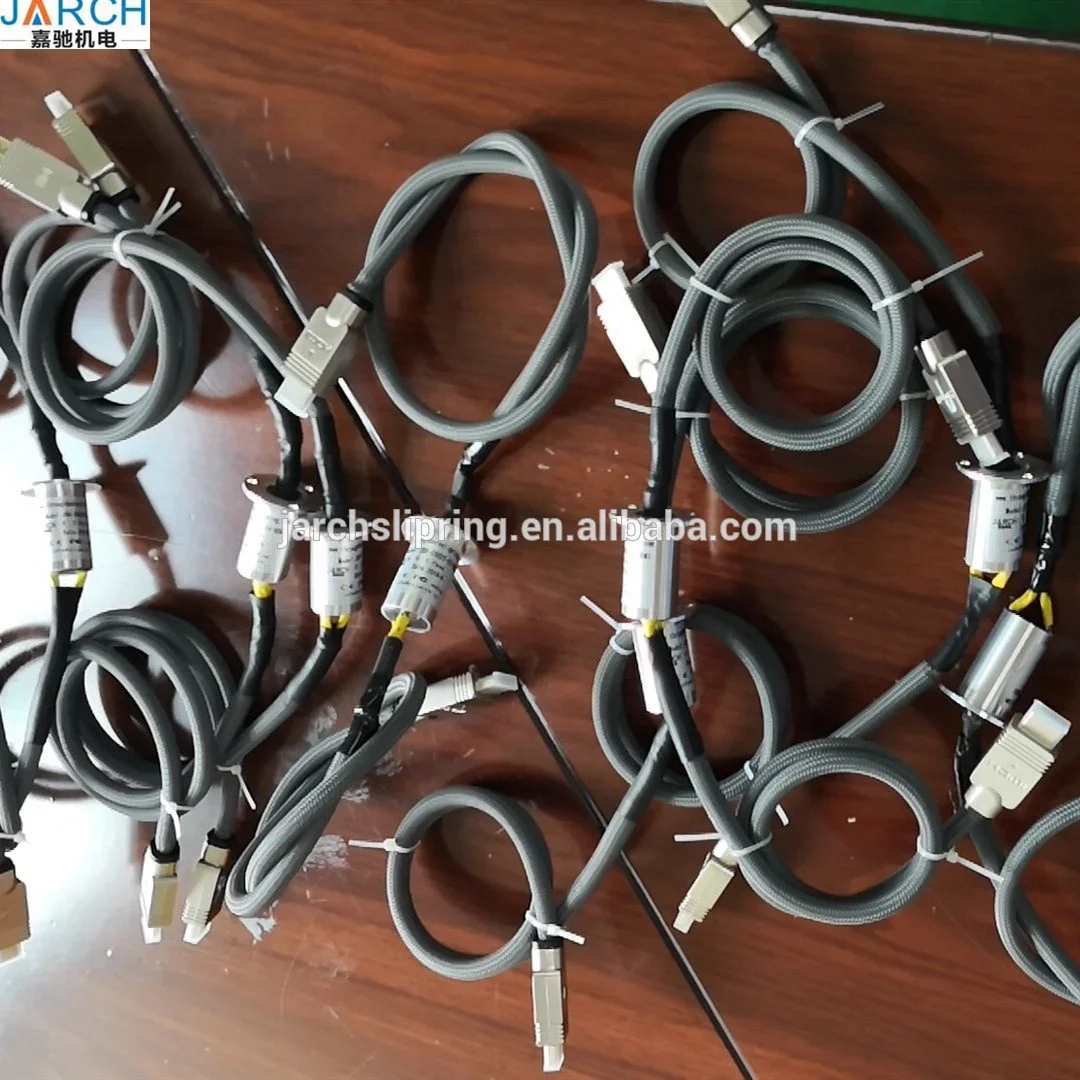

The JSR-HE025-4P10-1HD, with 4 wires and compact 25mm body diameter, ecah circuit 10A, 1 circuit HDMI, which we call our mini HDMI and Power combination slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings.
Benefits:
· Smoother running.
· Higher design precision
· Lower electrical noise.
· Lower torque, lower contact resistance
· Rapid delivery

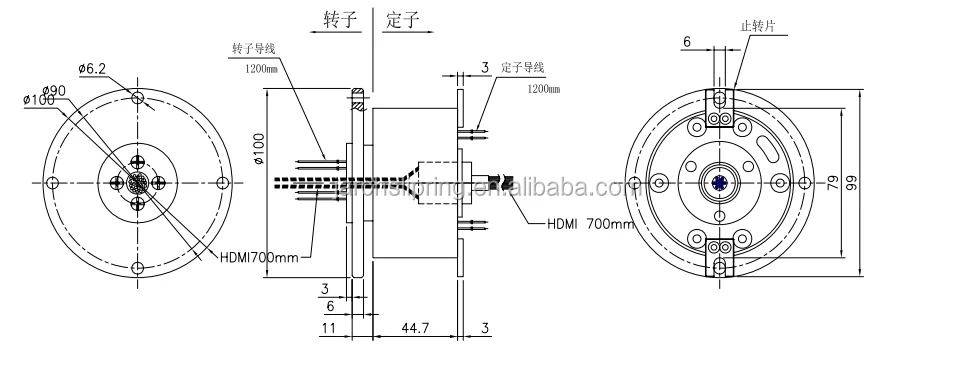

Dimensions:

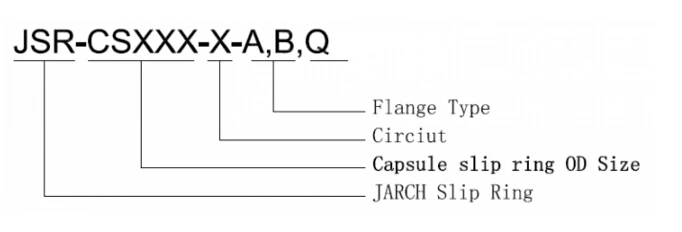

Model Explanation:
Specifications:
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A per circuit |
| Temperature Range | -20°Cto +60°C |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
Applications:
CCTV Monitoring System.
Electrical test equipment.
Medical equipment.
Rotary table
Robotics
Laboratory equipment
Manufacturing and process control equipment

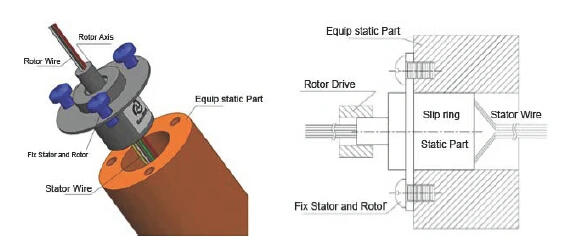

Installation Instructions:
Flange mounted:
JARCH is a professional manufacturer of slip rings and rotary joints,founded in 1998,located in Bao’an,Shenzhen,with more than 80 employees and 1000m2 plant.

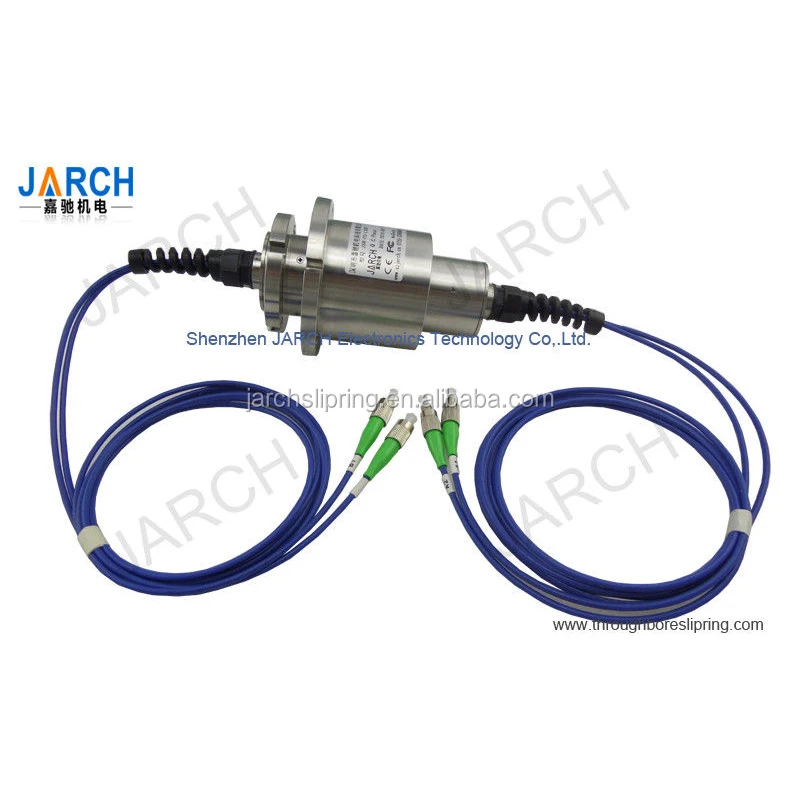

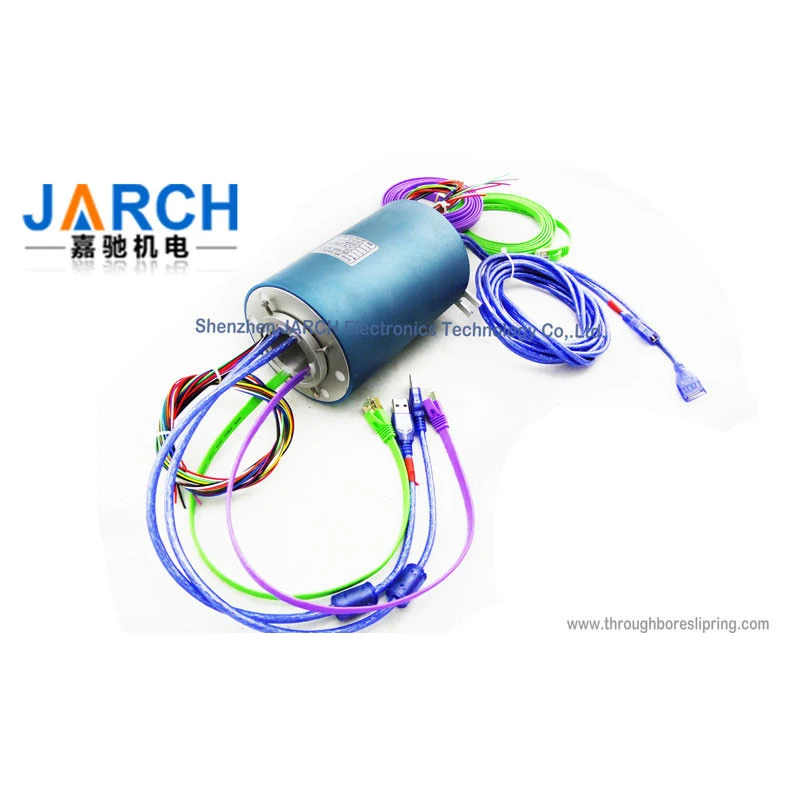

Our slip rings are widely used in civil and military fields ranging from robot,spacecrafts, industrial automation, electric power generation, measurement instruments, medial equipments to building construction. Our main products have fiber optic rotary joint / Electro optical slip ring/ through bore slip ring/ Pneumatic electric rotary union/ Hydraulic rotary union/through bore slip ring/ Pneumatic rotary joint,etc.
| Q1: Are you a factory or a trading company? | ||||||||||
| A: We are a professional manufactory with High-level R & D team. | ||||||||||
| Q2: How many types of the slip rings do you have? | ||||||||||
| A: We can supply all kinds of the slip rings.Such as minitary slip ring,customized sliring, miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type, disc slip ring,wind power slip ring,solar power slip ring,through-bore slip ring, etc. | ||||||||||
| Q3: Can you supply the slip rings with high frequency signals and(or) optical communication signals. | ||||||||||
| A: Yes, we can supply mixed signals slip rings as your request. |
