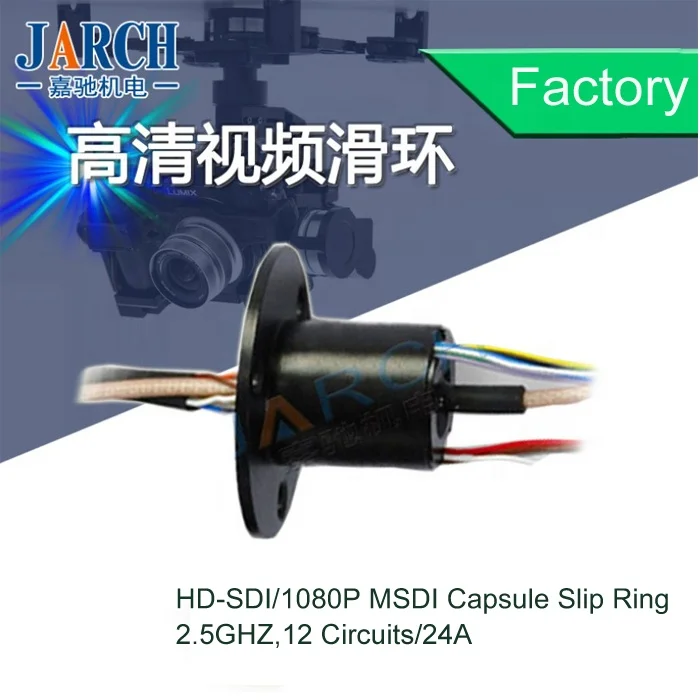

JARCH Shenzhen 12 Circuits Lead Free Shadowless lamp Video Connector Capsule Slip Ring
Quick Details:
| Model Number: | JSR-HD-12 | Current Rating: | 2A,5A,10A |
| Proteaction grade: | IP54 | Circuits: | 12 |
| Volt AC/DC(V): | mV~240Vac/Vdc | Contact Material: | Gold-Gold contacts |
| Speed(rpm): | 500RPM | Lead Wire: | UL Teflon Awg28,color-coded, |
The high-definition slip ring MSDI series adopts American imported components and high-frequency signal processing technology. It is a high-end conductive slip ring designed and developed for high-definition signal 1080P. The maximum speed can reach 2.5GHZ, and it can mix 1~24 signals and small current products. US military surface treatment process, super hard gold plating treatment, to ensure extremely low resistance fluctuations and long working life.

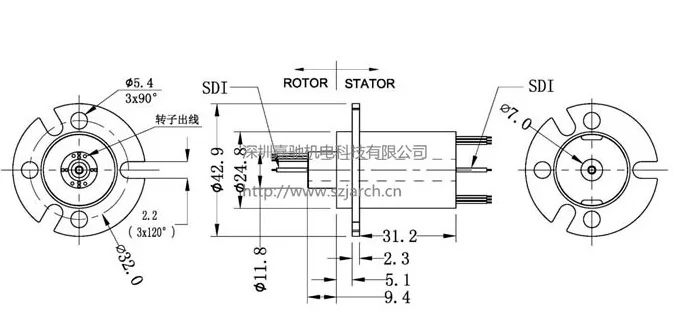

Dimension:
Specification:
| Operating Speed | 0-500 Rpm |
| Number of Circuits | 12 |
| Voltage | 240 VAC/DC |
| Current Rating | 2A per circuit,Can be 5A/10A |
| Temperature Range | -20°Cto +80°C |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm(9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1500 MΩ @ 500 VDC |
| Electrical Noise | 70mΩ @6VDC,50mA,5Rpm |
| Certificate | Lead Free, CE,RoHS compliant |
Benefits:
1. The rotating contact surface is gold-gold, and the precious metal contact ensures long working life.
2. 360 degree smooth and unlimited rotation fully meets image and data transmission
3. the product series is complete, according to customer needs to customize the required products
4. compact structure, smooth operation
5. low torque, low noise, high definition
6. can run freely in a small space, moisture, dust, high temperature and long life
7. can transmit power, data signals.
8. a variety of flanges are convenient to choose.
Applications:
| Digital system | CT equipment | Surveillance cameras | Equipment | Mechanical arm | Beer production equipment |
| Rotating light box | Milk production equipment | Rotary silver plating production line | Helicopter | Rotating camera | Radar communication |
| Rolling machine | Flight equipment | Hot roller | Tank rotating turret | Molding machine | Revolving door |
| Automatic winding machine | Rides | LED advertising light | Production line | High speed ball | Shadowless lamp |
