Product Details
| Brand Name | huayang | Place of Origin | China | |
| Model Number | Chlf (T)-CHDF2/4/8/16 | Power | Electric | |
| Usage | Water | Theory | Centrifugal Pump | |
| Standard or Nonstandard | Standard | Structure | Multistage Pump | |
| Pressure | High Pressure |
Product Description
Black Horizontal Multistage Centrifugal Pump , Water Booster Pump Chlf ( T )
Pump:
1.Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.
2.Compact structure renders small size of pump: axial inlet and radial outlet.
| Model | CHDF2 | CHDF4 | CHDF8 | CHDF16 |
| Rated flow[m3/h] | 2 | 4 | 8 | 16 |
| Flow range[m3/h] | 1-3.5 | 1.5-8 | 5-12 | 8-22 |
| Max.Pressure[bar] | 5.5 | 5 | 5 | 4 |
| Motor power[Kw] | 0.37-0.75 | 0.37-0.75 | 0.75-2.2 | 2.2-3 |
| Head range[m] | 14-42 | 15-45 | 8.5-42.5 | 10-43 |
| Temperature range[oC] | -15oC -+110oC | |||
| Max.Efficiency[%] | 46 | 59 | 64 | 70 |
Introduction
Application:
CHL,CHLK and CHLF(T) type pump are mainly used in industrial field:
*Air-conditioning system
*Cooling system
*Industrial cleaning
*Water treatment(Water purification)
| Performance table | |||||||||
| Type | Matching motor(kw) | Q(m3/h) | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
| CHLF(T)2-20 | 0.37 | H(m) | 19 | 18 | 16.5 | 15 | 13 | 10 | 7.5 |
| CHLF(T)2-30 | 0.37 | 28 | 26.5 | 24.5 | 22 | 19 | 15.5 | 12 | |
| CHLF(T)2-40 | 0.55 | 36 | 34.5 | 33 | 29 | 25 | 20.5 | 16 | |
| CHLF(T)2-50 | 0.55 | 45.5 | 43 | 40 | 36 | 31.5 | 26.5 | 20.5 | |
| CHLF(T)2-60 | 0.75 | 53.5 | 51 | 48 | 44 | 39 | 32 | 24 | |
| Size and weight | |||||||||
| Motor | Type | Size(mm) | Weight(kg) | ||||||
| L1 | L2 | L3 | D | H | |||||
| Three phase or single phase | CHLF(T)2-20 | 305 | 87 | 84 | 145 | 215/230 | 15 | ||
| CHLF(T)2-30 | 323 | 105 | 102 | 145 | 215/230 | 15 | |||
| CHLF(T)2-40 | 341 | 123 | 120 | 145 | 215/230 | 15 | |||
| CHLF(T)2-50 | 359 | 141 | 138 | 145 | 215/230 | 15 | |||
| CHLF(T)2-60 | 422 | 159 | 156 | 170 | 225/245 | 17 | |||

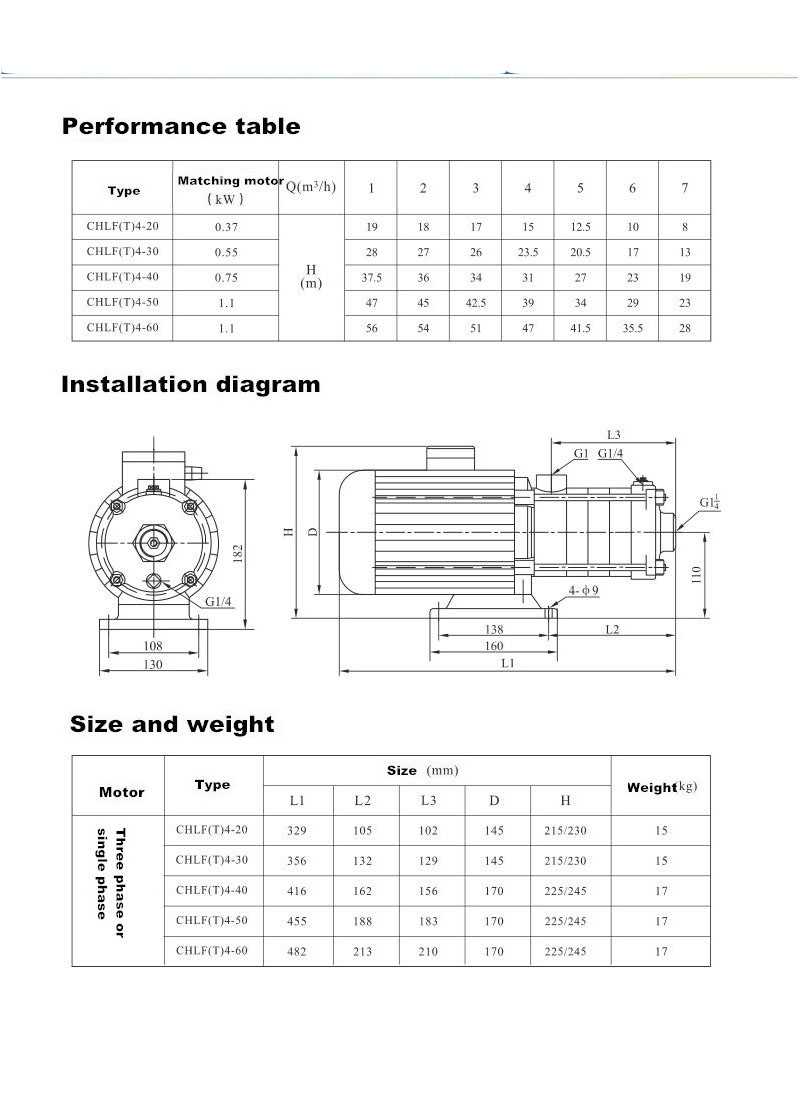

| Performance table | |||||||||
| Type | Matching motor(kw) | Q(m3/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| CHLF(T)4-20 | 0.37 | H(m) | 19 | 18 | 17 | 15 | 12.5 | 10 | 8 |
| CHLF(T)4-30 | 0.55 | 28 | 27 | 26 | 23.5 | 20.5 | 17 | 13 | |
| CHLF(T)4-40 | 0.75 | 37.5 | 36 | 34 | 31 | 27 | 23 | 19 | |
| CHLF(T)4-50 | 1.1 | 47 | 45 | 42.5 | 39 | 34 | 29 | 23 | |
| CHLF(T)4-60 | 1.1 | 56 | 54 | 51 | 47 | 41.5 | 35.5 | 28 | |
| Size and weight | |||||||||
| Motor | Type | Size(mm) | Weight(kg) | ||||||
| L1 | L2 | L3 | D | H | |||||
| Three phase or single phase | CHLF(T)4-20 | 329 | 105 | 102 | 145 | 215/230 | 15 | ||
| CHLF(T)4-30 | 356 | 132 | 129 | 145 | 215/230 | 15 | |||
| CHLF(T)4-40 | 416 | 162 | 156 | 170 | 225/245 | 17 | |||
| CHLF(T)4-50 | 455 | 188 | 183 | 170 | 225/245 | 17 | |||
| CHLF(T)4-60 | 482 | 213 | 210 | 170 | 225/245 | 17 | |||

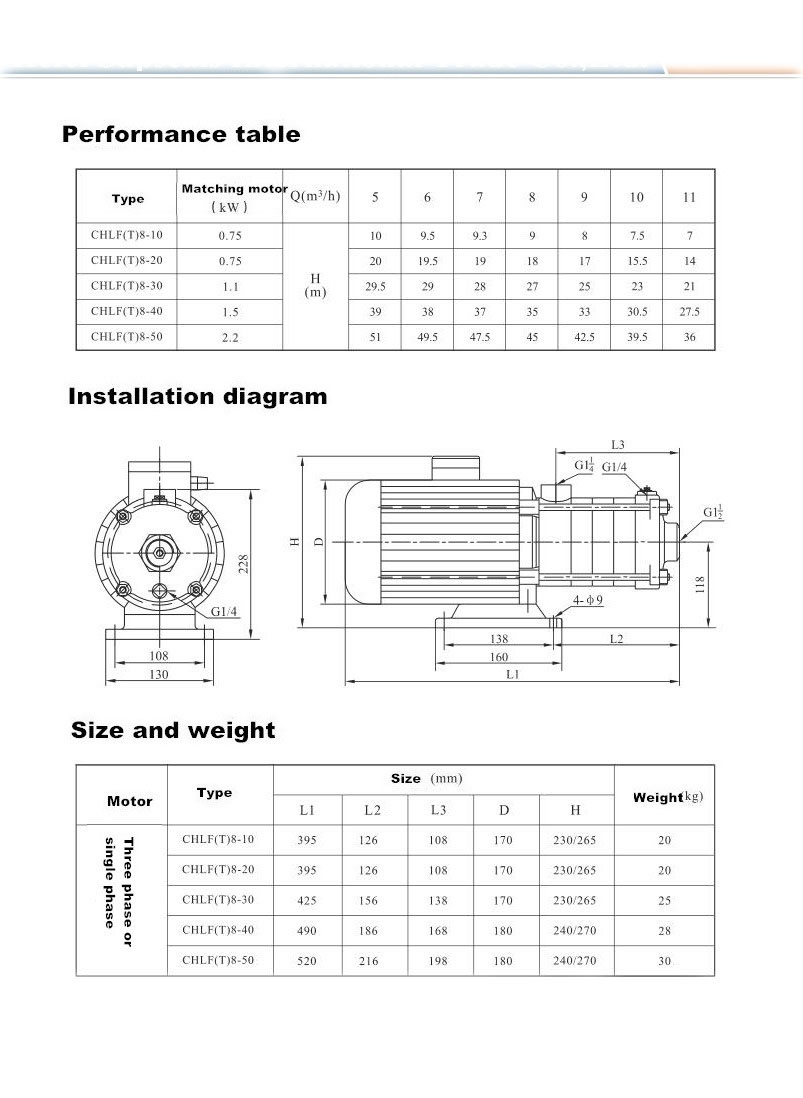

| Performance table | |||||||||
| Type | Matching motor(kw) | Q(m3/h) | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| CHLF(T)8-10 | 0.75 | H(m) | 10 | 9.5 | 9.3 | 9 | 8 | 7.5 | 7 |
| CHLF(T)8-20 | 0.75 | 20 | 19.5 | 19 | 18 | 17 | 15.5 | 14 | |
| CHLF(T)8-30 | 1.1 | 29.5 | 29 | 28 | 27 | 25 | 23 | 21 | |
| CHLF(T)8-40 | 1.5 | 39 | 38 | 37 | 35 | 33 | 30.5 | 27.5 | |
| CHLF(T)8-50 | 2.2 | 51 | 49.5 | 47.5 | 45 | 42.5 | 39.5 | 36 | |
| Size and weight | |||||||||
| Motor | Type | Size(mm) | Weight(kg) | ||||||
| L1 | L2 | L3 | D | H | |||||
| Three phase or single phase | CHLF(T)8-10 | 395 | 126 | 108 | 170 | 230/265 | 20 | ||
| CHLF(T)8-20 | 395 | 126 | 108 | 170 | 230/265 | 20 | |||
| CHLF(T)8-30 | 425 | 156 | 138 | 170 | 230/265 | 25 | |||
| CHLF(T)8-40 | 490 | 186 | 168 | 180 | 240/270 | 28 | |||
| CHLF(T)8-50 | 520 | 216 | 198 | 180 | 240/270 | 30 | |||
| Performance table | ||||||||||
| Type | Matching motor(kw) | Q(m3/h) | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| CHLF(T)16-10 | 1.1 | H(m) | 12.5 | 12.5 | 12 | 11.5 | 10.5 | 9.5 | 8 | 7 |
| CHLF(T)16-20 | 2.2 | 26 | 25 | 24 | 23 | 21.7 | 20 | 18 | 15.5 | |
| CHLF(T)16-30 | 3 | 40 | 39 | 36 | 36 | 34 | 31.5 | 29 | 25 | |
| CHLF(T)16-40 | 4 | 53.5 | 52 | 50 | 48 | 45 | 42 | 38 | 33.5 | |
| Size and weight | ||||||||||||||
| Motor | Type | Size(mm) | Weight(kg) | |||||||||||
| L1 | L2 | L3 | H | D | E | N | A | M | B | J | d | |||
| Three phase or single phase | CHLF(T)16-10 | 423 | 151 | 126 | 230/265 | 170 | 227 | 117 | 130 | 108 | 160 | 138 | 9 | 17.5 |
| CHLF(T)16-20 | 455 | 151 | 126 | 240/270 | 180 | 228 | 118 | 130 | 108 | 160 | 138 | 9 | 27 | |
| CHLF(T)16-30 | 561 | 196 | 171 | 270 | 195 | 240 | 130 | 130 | 108 | 160 | 138 | 9 | 33 | |
| CHLF(T)16-40 | 621 | 340 | 216 | 270 | 230 | 230 | 120 | 120 | 190 | 170 | 140 | 12 | 41 | |
Operation condition:
Liquid temperature:
Normal temperature type: -15 ºC~+70 ºC
Hot water type: -15 ºC~+110 ºC
Ambient temperature: up to +40 ºC
Max.operation pressure: 10 bar
Max.inlet pressure is limited by max.operation pressure.
