CE CCC UL 0.5 Electric Submersible Pump Irrigation Of Farmland And Garden

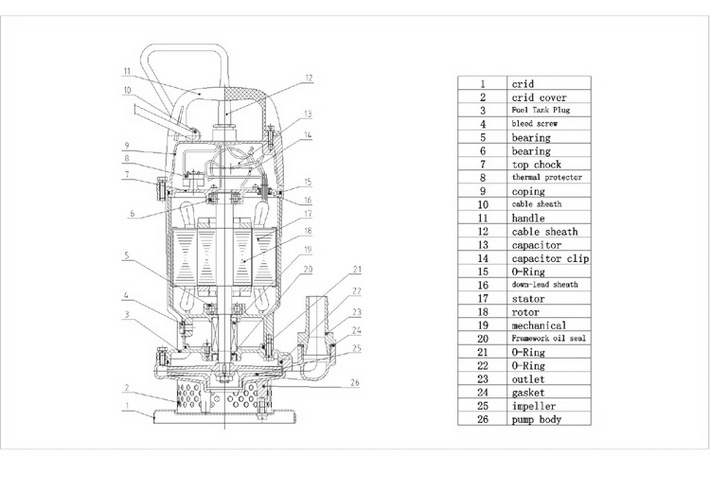

QDX and QX submersible pumps are equipped with protective devices. The motor is located on the upper part of the electric pump. It is single-phase or three-phase asynchronous motor.The pump is located at the lower part of the motor. It is a centrifugal impeller and volute structure. The dynamic seal between the pump and the motor is a double-face mechanical sealThe static seal at each fixed stop adopts "O" type sealing ring made of oil resistant rubber.Due to its small size and light weight, the series of electric pumps are suitable for pumping water underground in rural areas, irrigation of farmland, irrigation of garden and domestic water, as well as for removing industrial water accumulation, water supply and drainage of building construction and breeding industry.
Using conditions and announcements:
1.The liquid temperature of the water supply is less than +40.
2.Common series:The PH value of medium between 6.5 and 8.5, stainless steel series between 4 and 10.
3.The volume ratio of solid impurities in the medium shall not exceed 0.1%, and the diameter of the particles shall not be greater than 0.2mm.
4.The frequency of power supply is 50HZ, the single phase is 220V, the three phase is 380V, the range of voltage fiuctuation is 0.9 times to 1.1 times rated value.
5. Using head is no less than 80 percent of the pump's rated head.
6.The diving depth shall not exceed 5M.
| Category | Submersible pump | Category | Submersible pump | ||
| Modle | QDX1.5-16-0.37A | QDX6-10-0.37A | Modle | QDX1.5-16-0.38A | QDX6-10-0.38A |
| Power supply(HP) | 0.5 | 0.5 | Power supply(HP) | 0.5 | 0.5 |
| Power supply(Kw) | 0.37 | 0.37 | Power supply(Kw) | 0.37 | 0.37 |
| Standard head(m) | 16 | 10 | Standard head(m) | 4 | -2 |
| Standard flow rate | 1.5 M3/H | 6 M3/H | Standard flow rate | 1.5 M4/H | 7 M3/H |
| Inlet/Outlet | 1 | 1.5 | Inlet/Outlet | 2 | 2.5 |
| The net weight(kg) | 9 | 10 | The net weight(kg) | 11 | 12 |
| Packing specification(mm) | 410*170*235 | 410*170*235 | Packing specification(mm) | 410*170*235 | 410*170*235 |
