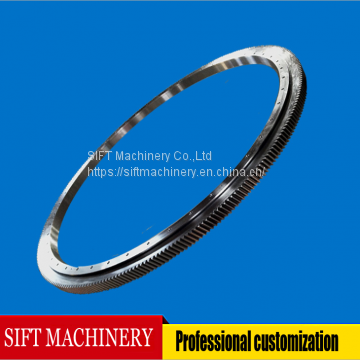

Name: Slewing Bearing 131.32.800 for Truck Crane
Brand: SIFT or OEM
SKU: 159108481
Availability: InStock

ALL CATEGORIES

Slewing Bearing 131.32.800 for Truck Crane

Basic Type	Configuration Size			Mounting Size						Structural Size			Gear Data			Ext Gear		Tooth Load		Ref
Ext Tooth	D	d	H	D 1	D 2	n	Ø	dm	L	n 1	H 1	h	b	x	M	D e	z	Normal	Temper	Weight
D L	mm	mm	mm	mm	mm	n	mm	mm	mm	mm	mm	mm	mm	x	mm	mm	z	Z 104N	T 104N	kg
131.25.500	634	366	148	598	402	24	18	M16	32	4	10	32	80	0.5	5	337	68	5	6.7	224
132.25.500	634	366	148	598	402	24	18	M16	32	4	10	32	80	0.5	6	338.4	57	5	6.7	224
131.25.560	694	426	148	658	462	24	18	M16	32	4	10	32	80	0.5	5	397	80	5	6.7	240
132.25.560	694	426	148	658	462	24	18	M16	32	4	10	32	80	0.5	6	398.4	67	5	6.7	240
131.25.630	764	496	148	728	532	28	18	M16	32	4	10	32	80	0.5	6	458.4	77	6	8	270
132.25.630	764	496	148	728	532	28	18	M16	32	4	10	32	80	0.5	8	459.2	58	6	8	270
131.25.710	844	576	148	808	612	28	18	M16	32	4	10	32	80	0.5	6	536.4	90	6	8	300
132.25.710	844	576	148	808	612	28	18	M16	32	4	10	32	80	0.5	8	539.2	68	6	8	300
131.32.800	964	636	182	920	680	36	22	M20	40	4	10	40	120	0.5	8	595.2	75	12.1	16.7	500
132.32.800	964	636	182	920	680	36	22	M20	40	4	10	40	120	0.5	10	594	60	12.1	16.7	500
131.32.900	1064	736	182	1020	780	36	22	M20	40	4	10	40	120	0.5	8	691.2	87	12.1	16.7	600
132.32.900	1064	736	182	1020	780	36	22	M20	40	4	10	40	120	0.5	10	694	70	12.1	16.7	600
131.32.1000	1164	836	182	1120	880	40	22	M20	40	5	10	40	120	0.5	10	784	79	15.1	20.9	680
132.32.1000	1164	836	182	1120	880	40	22	M20	40	5	10	40	120	0.5	12	784.8	66	15.1	20.9	680
131.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	10	40	120	0.5	10	904	91	15.1	20.9	820

Note:

n1 is the number of lubricating oil holes, evenly distributed: oil cup M10×1 JB/T7940.1-JB/ T7940.2
The mounting holes n-dn1 and n-dn2 can be changed to screw holes; the tooth width b can be changed to H-h.
The circumferential force of the gear in the form is the maximum circumferential force, and the rated circumferential force is 1/2.
The external tooth repair coefficient is 0.1

Send Inquiry to This Supplier

Mr. Richard S

Sales manager

SIFT Machinery Co.,Ltd

Qingdao, Shandong, China

Message

0/5000

* Email

Slewing bearing Part with External Gear		131.32.800
Configuration size	D	964mm
	d	636mm
	H	182mm
Mounting size	D1	920mm
	D2	680mm
	n	36
	Ø	22mm
	dm	M20mm
	L	40mm
Structure size	n1	4mm
	H1	10mm
	h	40mm
Gear data	b	120mm
	x	0.5
	m	8mm
	De	595.2mm
	z	75
Tangential Tooth Load	Normalizing Z	12.1 x10⁴N
Tangential Tooth Load	Tempering Z	16.7 x10⁴N
Weight:		500kg

Slewing Bearing 131.32.800 for Truck Crane
