Slewing Bearing 133.25.630

Slewing Bearing 133.25.630 thumbnail-1
Slewing Bearing 133.25.630 photo-1
US$ 1 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIFT/OEM
Place of Origin:
China
Model Number:
Slewing bearing 133.25.630
Contact Supplier Request Quote Chat Now
SIFT Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SIFT/OEM
Place of Origin China
Model Number Slewing bearing 133.25.630


  • Slewing Bearing Parts: 133.25.630

  • Bearing Type: 13 series triple-row roller type

  • Gear Type:Internal Gea

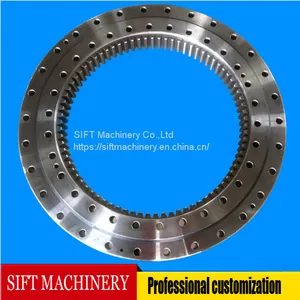

Triple-row roller type slewing bearing 133.25.630 with Internal Gear

The three-row roller type slewing bearing 133.25.630 has three races, and the upper and lower and the radial raceways are separated, so that the load of each row of rollers can be accurately determined. It can withstand various loads at the same time. It is the most load-bearing type among the four products. It has large shaft and radial dimensions and is firm in structure. 133.25.630 is especially suitable for heavy machinery requiring large diameter, such as bucket wheel excavator and wheel. Cranes, marine cranes, port cranes, steel running tables and large tonnage truck cranes.

triple row roller type slewing bearing with Internal Gear

Slewing bearing Part with Internal Gear 133.25.630
Configuration size D 764mm
d 496mm
H 148mm
Mounting size D1 728mm
D2 532mm
n 28
Ø 18mm
dm M16mm
L 32mm
Structure size n1 4mm
H1 138mm
h 32mm
Gear data b 80mm
x 0.5
m 6mm
De 458.4mm
z 77
Tangential Tooth Load Normalizing  Z 6×10⁴N
Tempering  Z   8×10⁴N
Weight: 270kg

Note:

  1. n1 is the number of lubricating oil holes, evenly distributed: oil cup M10×1 JB/T7940.1-JB/ T7940.2

  2. The mounting holes n-dn1 and n-dn2 can be changed to screw holes; the tooth width b can be changed to H-h.

  3. The circumferential force of the gear in the form is the maximum circumferential force, and the rated circumferential force is 1/2.

  4. The internal tooth trimming coefficient is 0.2.

Slewing bearing manufacturer with high quality
