Slewing Bearing 113.25.560 for Construction Machinery

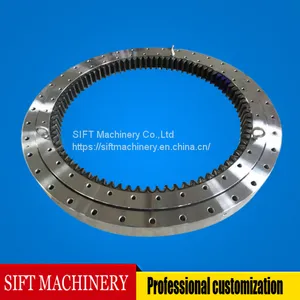

Slewing Bearing 113.25.560 for Construction Machinery thumbnail-1
Slewing Bearing 113.25.560 for Construction Machinery thumbnail-2
Slewing Bearing 113.25.560 for Construction Machinery photo-1

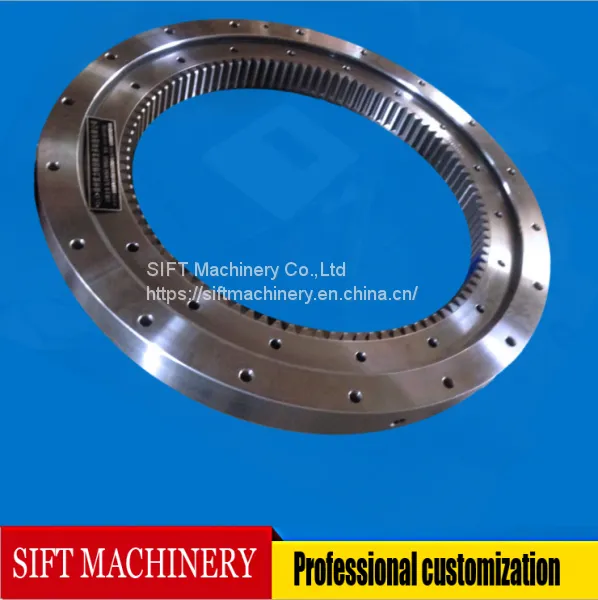

Slewing Bearing 113.25.560 for Construction Machinery photo-2
US$ 1 - 20000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIFT/OEM
Place of Origin:
China
Model Number:
Slewing bearing 113.25.560
Contact Supplier Request Quote Chat Now
SIFT Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SIFT/OEM
Place of Origin China
Model Number Slewing bearing 113.25.560

  • Slewing Bearing Parts: 113.25.560

  • Bearing Type: 11 series single-row cross roller type

  • Gear Type: Internal Gear

Single row cross roller slewing bearing 113.25.560  with Internal Gear

Single row cross roller type slewing bearing 113.25.560  consists of two races. It is compact in structure, light in weight, high in manufacturing precision, small in assembly clearance, high in installation accuracy, and 1:1 cross-arrangement of rollers. Slewing Bearing 113.25.560  with tipping moment and large radial force are widely used in Lifting conveyor, construction machinery and military products.

Single row cross roller type slewing bearing with Internal Gear

Slewing bearing Part with Internal Gear  113.25.560
Configuration size D 662mm
d 458mm
H 75mm
Mounting size D1 626mm
D2 494mm
n 20
Ø 18mm
dm M16mm
L 32mm
Structure size n1 4mm
D3 558mm
d1 562mm
H1 65mm
h 10mm
Gear data b 60mm
x 0.5
m 5mm
De 427mm
z 86
Tangential Tooth Load Normalizing  Z 3.7 x10⁴N
Tempering  Z  5.2 x10⁴N
Weight: 90kg

Note:

  1. n1 is the number of lubricating oil holes, evenly distributed: oil cup M10×1 JB/T7940.1-JB/T7940.2

  2. The mounting hole n-Φ can be changed to the screw hole; the tooth width b can be changed to H-h.

  3. The circumferential force of the gear in the form is the maximum circumferential force, and the rated circumferential force is 1/2.

  4. The internal tooth trimming coefficient is 0.2.
