Help CenterFull-automatic Winder of Greenhouse Film
Related Products

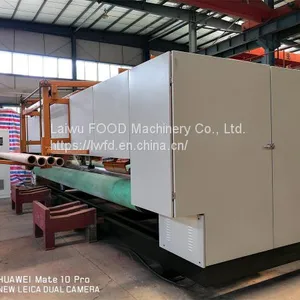

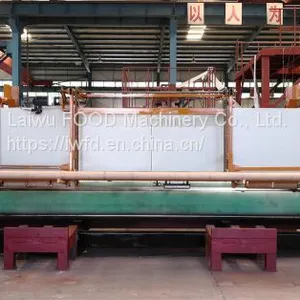

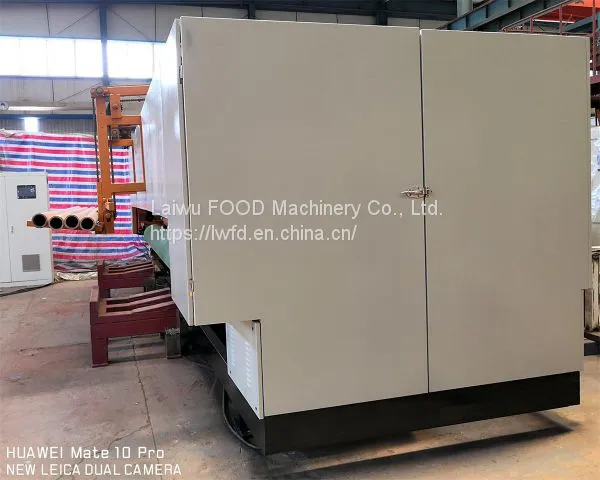

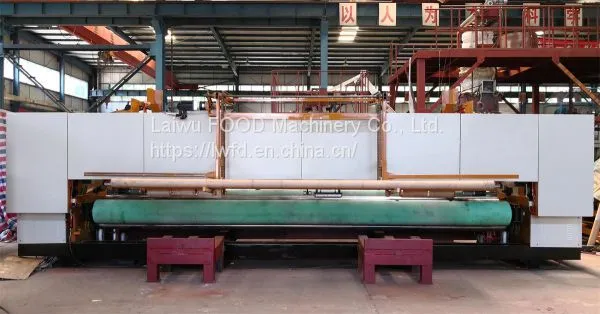

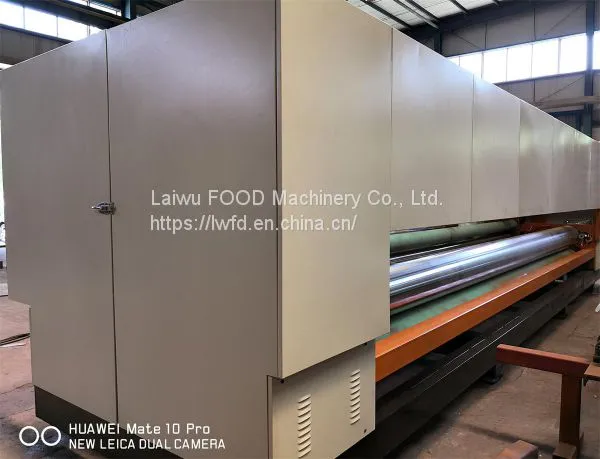

JQ5500-2Z Full-automatic greenhouse film winder
1. main feature:
This winder is designed for more than 10 m greenhouse film, the MAX. width is 5 meter, the best layers is 8 layers.
main function:
1.1 automatic winding. don't by hand continue the film start off winding, by automatic device to finish.
1.2 automatic cutting. Max. 8 layers film by cut as setting length.
1.3 with carrier roller. even the film width is very big, don't worry the film coil curve as self-weight. the Max. weight is one ton.
1.4 tension automatic control. can be set up the tension as film thickness and layers, and the tension keep constant.
1.5 whole set control system use touch screen of PLC control.
2. main technical parameters
winding width 3000-5000mm
winding diameter Φ150--Φ450mm
width adjustment by automatic
cutting type by automatic cutting
film start winding type automatic by device
winding layers 1-8 layers
winding speed 5-30 m/min
timing type by frequency
winding work station 2
winding type by surface and center, stand-alone running or simultaneous running
feeding coil type automatic by mechanical arm
take down type of film roller automatic
installation dimension(L*W*H) 8*3*3 m
weight 12 ton
