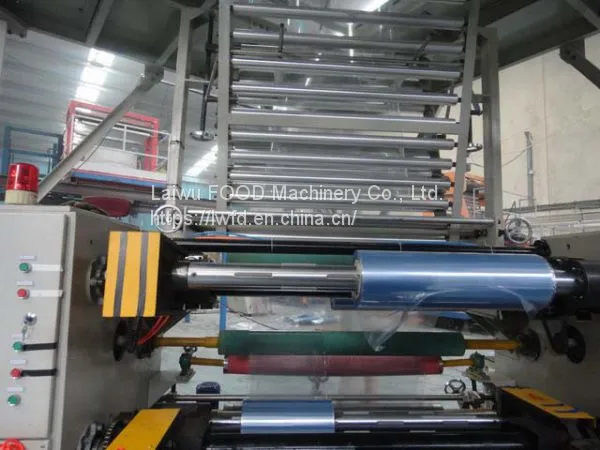

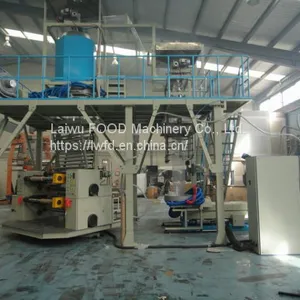

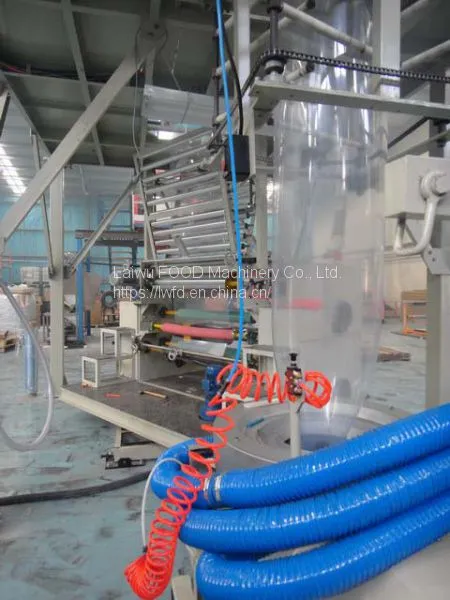

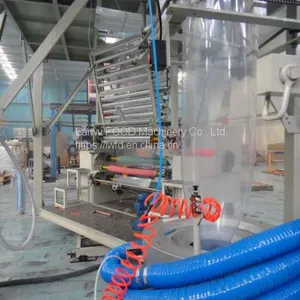

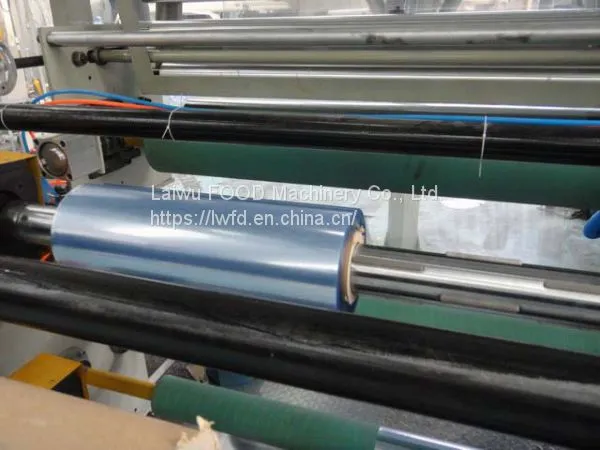

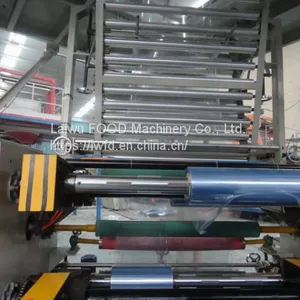

FD-BM1600-PVC PVC shrink film blowing machine
1. Main Features:
(1) Special "BM" screw and mixing top. it is good both for granules again for powder.
(2) circulatory cooling medium for screw, the melt is better and extrusion out in lower temperature.
(3) Omron temperature meter.
(4) Speed control by frequency control.
(5) oven heating by infrared heater, and temperature control by PVM,the temperature uniformity and smooth.
(6) The second tow roller is silicon rubber, high temperature resistance.
(7) 360° rotatory winding unit.
(8) Special structure filter unit, take down the old net is easier. And no any burning in 30 days.
2. main parameter:
Film width |
1200-1400 mm |
Film thickness |
0.012-0.06 mm |
Screw diameter |
100mm |
L/D |
28:1 |
Screw turn speed |
0~50rpm |
Driving power |
55kw |
Power of barrel |
32kw |
Output capacity |
90-120 kg/h |
diameter of Die |
Φ150mm |
Heating power of die |
4 kw |
Width of tow rollers |
1200/1600mm |
tow speed |
0~60m/min |
shrinkage (MD) |
≥45% |
shrinkage (TD) |
≥45% |
Total power |
≤160kw |
Dimension size(L*W*H) |
13500×5500×7200 |
Weight |
18000kg |
