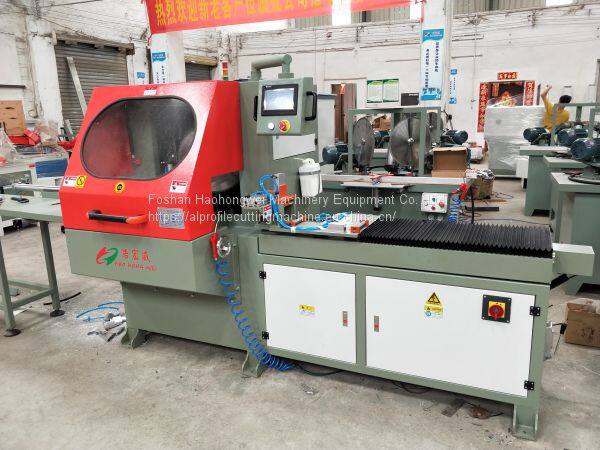

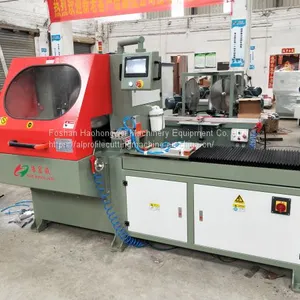

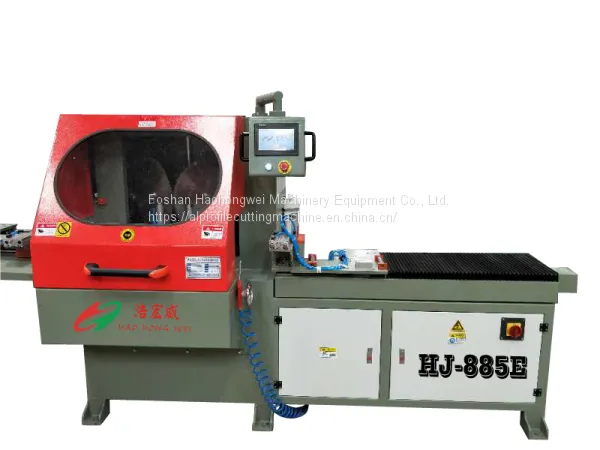

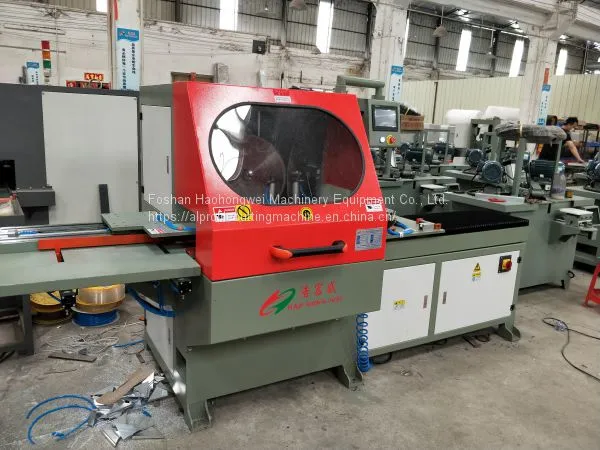

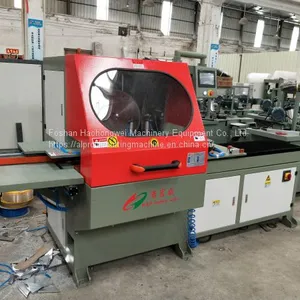

CNC Servo Feeding Double Head Angle Cutting Machine 40mm/s
US$ 9400 - 10000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Haohongwei
Place of Origin:
China
Model Number:
HJ-885E
Payment & Shipping
Payment Methods:
Port of Shipment:
Foshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
45º×2 Double Head Angle Cutting Machine Precision Ball ScrewUS$ 9400 - 10000MOQ: 1 Set -
45 Degree Double Head Angle Cutting MachineUS$ 9400 - 10000MOQ: 1 Set
-
45 Degree Double Head Angle Cutting MachineUS$ 9400 - 10000MOQ: 1 Set
-
45 Degree Double Head Angle Cutting MachineUS$ 14500 - 14800MOQ: 1 Set
-
45 Degree Double Head Angle Cutting MachineUS$ 14500 - 14800MOQ: 1 Set
Brand Name
Haohongwei
Place of Origin
China
Model Number
HJ-885E
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Features:

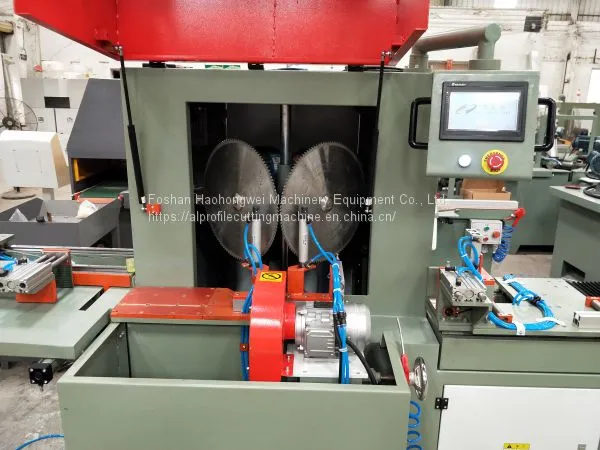

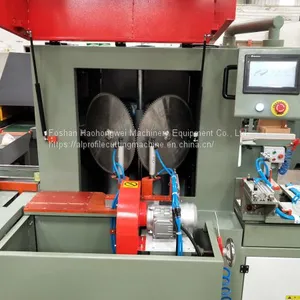

1. Double saw balde shortens cutting speed, save time, improve production efficiency.
2. Foot switch control automatic loading clamp, cutting precision is high with stable clamp device.
3. It can cut any long or short materials.
4. Equipped with two sets of oil sprayers, saw blade can be lubricated automatically,which improve saw blade life span. 45 Double mitre saw for aluminum profile multi cutting
Parameter：
| Sawing angle | 45º×2 |
| Maximum sawing width | 105mm |
| Cutting height | 40mm |
| transfer method | Precision ball screw |
| Machining length accuracy | ±0.1mm |
| Pressing form | pneumatic |
| Feeding speed | 40mm/s |
| Feeding method | CNC servo feeding |
| control method | PLC touch screen |
| Spindle speed | 3800r/min |
| rated power | 5600W |
| input power | 5600W |
| Saw blade motor power | 2.2KW*2 |
| Corner motor power | 0.37KW |
| servo motor | 0.75KW |
| working pressure | 0.6-0.8mpa |
| Operating Voltage | 380V+Zero Line Three-Phase Four-Line 50HZ |
| Machine weight | 980KG |
| Maximum feed length (segmentable feed) | 1000mm (any length is OK) |
| Blade cooling method | spray |
| Saw blade size | Φ405×Φ25.4mm×3.2×120T |
| working desk size | 1000*210mm |
| Dimensions L × W × H | 3900×1250×1730mm |
Description:
Double Head Aluminium Mitre Saw for Cutting Aluminum Profile 45 Double mitre saw for aluminum profile multi cutting angle cutting machine double ends aluminum wood cutting 45 degree saw angle cutting machine double ends aluminum wood cutting 45 degree saw
