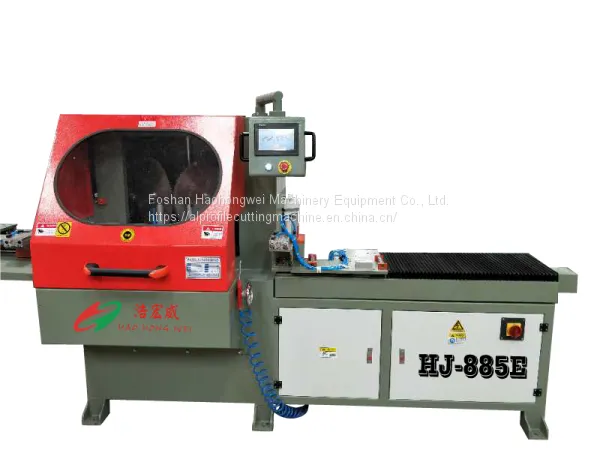

45 Degree Double Head Angle Cutting Machine
- 1000 Set / Sets per Month
- Foshan
- T/T L/C
Product Details
Brand Name: | Haohongwei | Place of Origin: | China | Model Number: | HJ-885E |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Parameter:
Sawing angle | 45º×2 |
Maximum sawing width | 105mm |
Cutting height | 40mm |
transfer method | Precision ball screw |
Machining length accuracy | ±0.1mm |
Pressing form | pneumatic |
Feeding speed | 40mm/s |
Feeding method | CNC servo feeding |

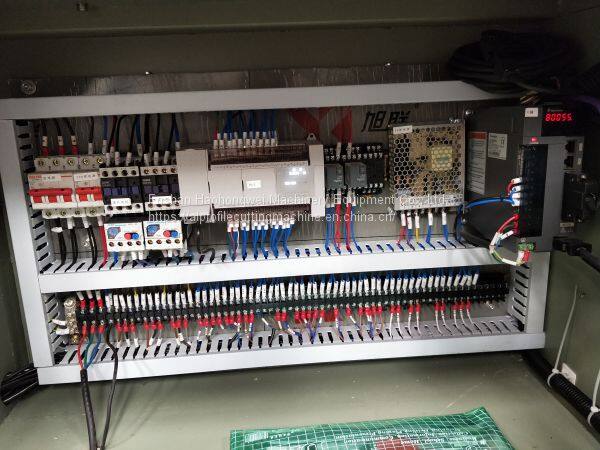

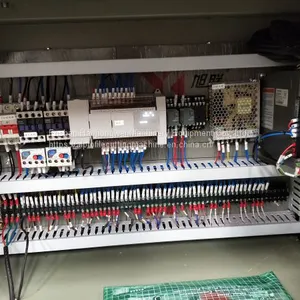

control method | PLC touch screen |
Spindle speed | 3800r/min |
rated power | 5600W |
input power | 5600W |
Saw blade motor power | 2.2KW*2 |
Corner motor power | 0.37KW |
servo motor | 0.75KW |
working pressure | 0.6-0.8mpa |
Operating Voltage | 380V+Zero Line Three-Phase Four-Line 50HZ |
Machine weight | 980KG |
Maximum feed length (segmentable feed) | 1000mm (any length is OK) |
Blade cooling method | spray |
Saw blade size | Φ405×Φ25.4mm×3.2×120T |
working desk size | 1000*210mm |
Dimensions L × W × H | 3900×1250×1730mm |
Description:
Double Head Aluminium Mitre Saw for Cutting Aluminum Profile 45 Double mitre saw for aluminum profile multi cutting angle cutting machine double ends aluminum wood cutting 45 degree saw angle cutting machine double ends aluminum wood cutting 45 degree saw
Features:
1. Double saw balde shortens cutting speed, save time, improve production efficiency.

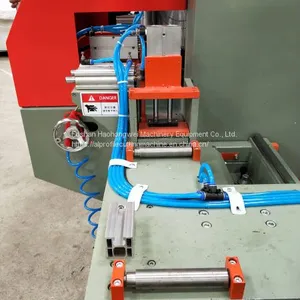

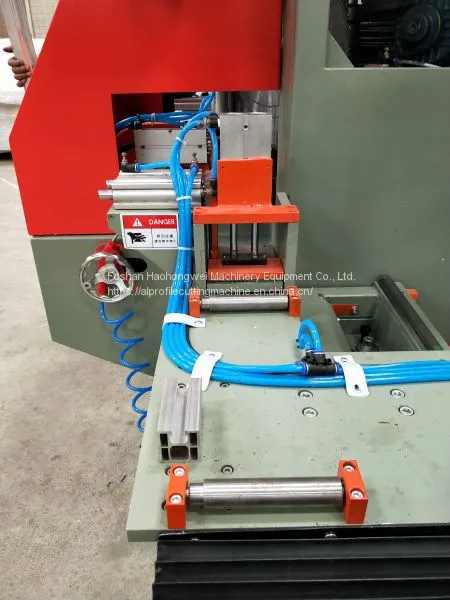

2. Foot switch control automatic loading clamp, cutting precision is high with stable clamp device.
3. It can cut any long or short materials.
4. Equipped with two sets of oil sprayers, saw blade can be lubricated automatically,which improve saw blade life span. 45 Double mitre saw for aluminum profile multi cutting
