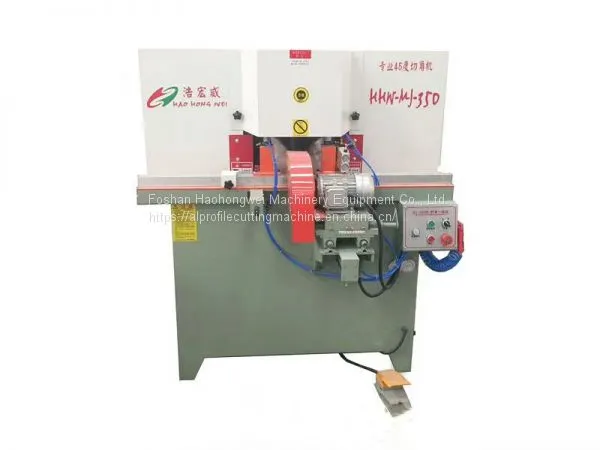

Quick Details:
Brand: Haohongwei
Model: MJ-350B
Cutting capacity: sawing width 100mm height 100mm
Spindle speed: 3800rpm
Rated power: 2.2*2KW
Corner motor power: 0.37KW

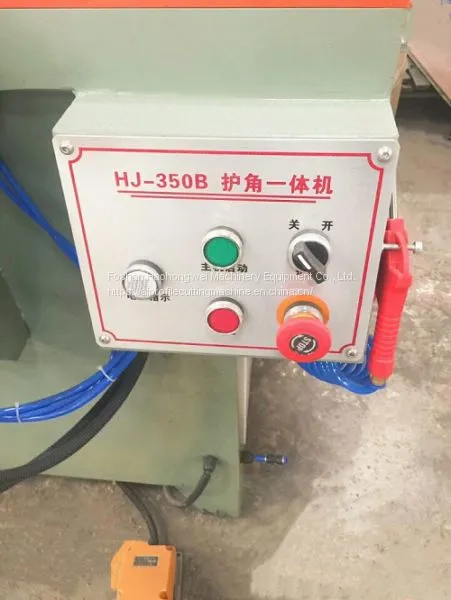

Control conversion mode: PLC integration
Power type: AC power
Working voltage: 380V 50HZ
Power: 2.2*2KW (W)
Saw blade diameter: 355 (mm)
Maximum sawing depth: 100 (mm)
Net weight: 430 (Kg)
Workbench size: 1260*180mm
Specifications: 1260 × 940 × 1400mm
Product alias: double head corner integrated machine
Product use: sawing angle
Applicable Industry:
push open the door and window frame, photo frame, frame, display frame Air conditioning air outlet, light box, screen trim, aluminum edge, aluminum extrusion.
Features:
When the 45-degree double-head chamfering machine starts, the spindle runs at a high speed. At the same time, two angles (two left and right) are sawed at the same time. The sawing angle is accurate, and the sawing surface of the workpiece saw is smooth and burr-free, and no secondary processing is needed. High efficiency, it is 3 times the output of the general single-head chamfering machine, suitable for 45 degree chamfering. The sawing material (pushing the door and window frame, photo frame, frame, display cabinet, air conditioning air outlet, light box, screen, aluminum edge, aluminum extrusion, etc.) is the most practical and efficient aluminum machine choice.
Parameter：
| Sawing angle | 45º×2 |
| Maximum sawing width | 100mm |
| Cutting height | 100mm |
| Spindle speed | 3800R/PM |
| Saw blade size | Φ355×Φ25.4mm×3.2×120T |
| Operating Voltage | 380V 50HZ |
| Motor Power | 2.2KW×2 |
| Corner motor power | 0.37KW |
| Control conversion method | PLC integration |
| working pressure | 6kg/cm2 |
| weight | 450kg |
| working desk size | 1260×180mm |
| Dimensions | 1260×940×1400mm |
Description:

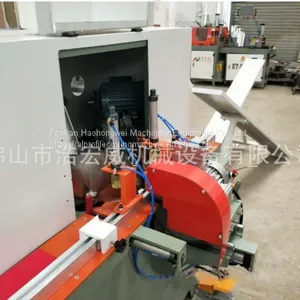

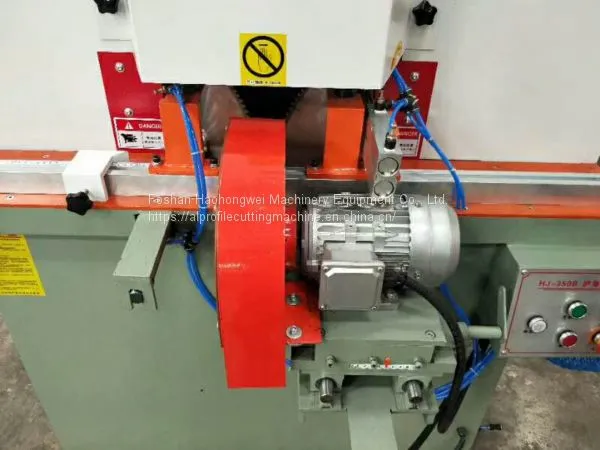

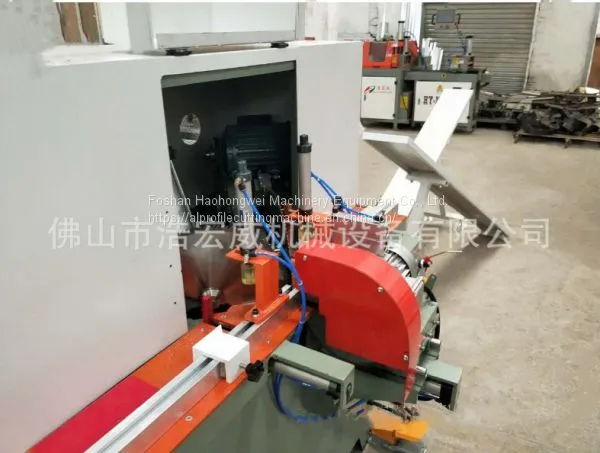

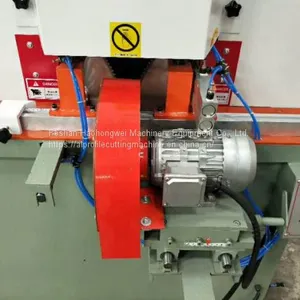

45 degree double-head angle cutting machine, double saw starts at the same time, sawing at the same time, pedaling once, pressing once, and automatically cutting after sawing, one sawing, two 45 degree angles, saving 1/ 2 time.
1. Only need to step on the foot switch, the machine will automatically press the automatic sawing material, which is easy and safe.
2, gas push oil type saw, sawing speed stable sawing and automatic spray of atomized cutting oil at the same time, in order to achieve cooling and lubrication effect, to ensure that the saw teeth do not accumulate, the saw blade sharp and durable.
3. The cylinder clamping material is stable and not easy to be deformed before and after the upper and lower sides, the sawing angle is accurate, and the pressing pressure can be adjusted, so that the hollow material is not easily deformed.
4, special attached to the output rack 2 × 2 meters placed on the left and right ends of the machine, the discharge rack set position baffle, easy to size sawing (conveyor platform is iron plate platform).
