MB7360 HRXL-MaxSonar-WR High Performance Ultrasonic Rangefinder

MB7360 HRXL-MaxSonar-WR
High Performance Ultrasonic Precision Rangefinder

MB7360 HRXL-MaxSonar-WR Ultrasonic Rangefinder Product Description

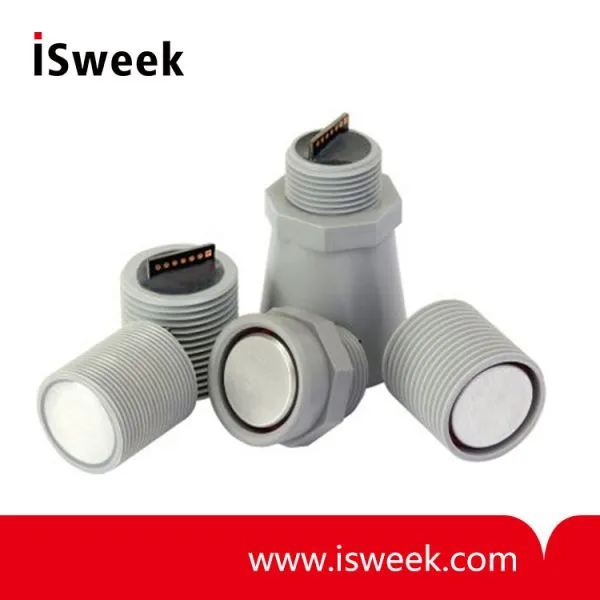

The weather resistant HRXL-MaxSonar-WR is a rugged, ultrasonic sensor component module. This outdoor sensor provides very short- to long- distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

MB7380 is the TTL version of this sensor.
MB7366 is the 10 meter version of this sensor.

MB7360 HRXL-MaxSonar-WR Ultrasonic Rangefinder Features and Benefits
• Factory calibrated beam width
• Low operating voltages from 2.7V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity

MB7360 HRXL-MaxSonar-WR Ultrasonic Rangefinder Applications and Uses
• Autonomous Navigation
• Robot Ranging Sensor
• Bin Level Measurement
• Tank Level Measurement

MB7360 HRXL-MaxSonar-WR Ultrasonic Rangefinder Part Numbers
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
