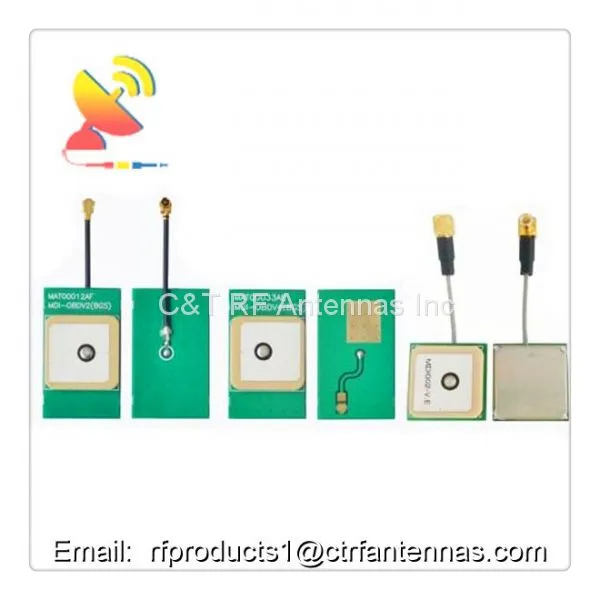

PCB board GPS Antenna Active builtin ceramic antenna with U.FL / SMA male or female connector for Tracking Device
This Active ceramic GPS antenna is direct supplied by C&T RF Antennas Inc.
Specification gps Antenna
Usage Occasion: Car Antenna / tracking device
Material: Ceramic
VSWR:
Nature of Operation: Receiving Antenna
Dimensionality: One-Dimensional Antenna
Band Width: CF+-5MHz
Gain: 28dBi
Impedance: 50ohm
Noise Figure:
Vibration: 10 to 55Hz with 1.5mm Amplitude 2hours
Transport Package: Paper Box
Operating Wavelength: Microwave
Center Frequency: 1575.42±1MHz
Polarization: Rhcp
V.S.W.R:
Dimension: 25*25*6.4mm
Filter Insertion Loss:
Specification: ce rohs
HS Code: 85291010
The C&T RF antennas Inc’s dielectric ceramic patch antennas are a low profile, high efficiency, high gain, passive or active antenna solution for GNSS/GPS/GLONASS/BeiDou applications, such as mobile handheld tracking, and vehicle navigation. Designed for embedded use, these antennas provide reliable performance in a compact package sizes with micro‐strip GPS right‐hand circular polarization, terminated via leaded center pin with various ease-of-placement mounting options.
Features:
1).Precision tuned ceramic patch
2).Low profile embedded applications
3).Available in passive and active (with low noise amplified) versions
4).C&T RF antennas Inc offers customized tuning and integration support
Please contact us for more information ASAP.
Tag: Ceremic GPS Antenna, 1575.42Mhz Antenna, Active & Passive GPS antenna,
