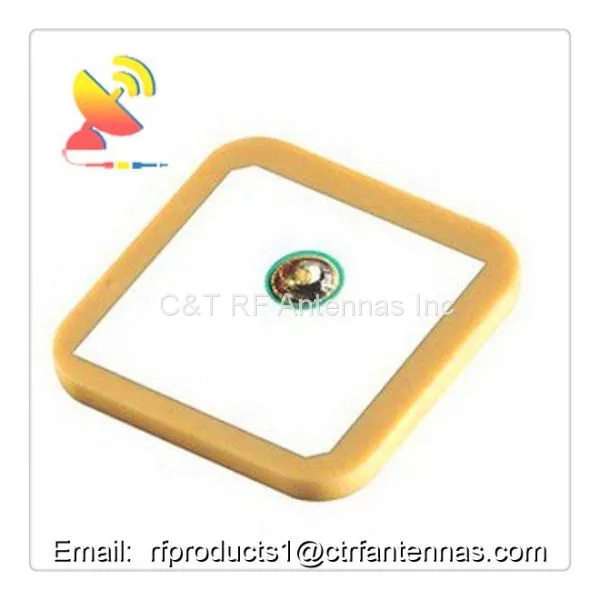

Internal GPS Passive Ceramic Patch Antennas 32*32mm size for car or smart home device tracker
This Passive ceramic GPS antenna is direct supplied by C&T RF Antennas Inc.
Specification gps Antenna
Electrical Specification
Frequency Range 1575.42MHz
V.S.W.R ≤1.9
Gain 3dBi
Polarization Type Vertical
Output Impendence 50Ω
Max Input Power 50W
Mechanical Specifications
Antenna Size (mm) 32*32mm
Connector Type IPEX or customized
Antenna material Ceramic
Operation Temperature -40℃ to 85℃
Storage temperature -40℃ to 70℃
Reliability test:
Project |
Test Condition |
Result |
High and low temperature test |
TH (test temperature): 70 C + 2;TL (test temperature): -40 C + + 2;Conversion time less than 1 minutes, a total of 24 cycles |
Meet the mechanical and electrical properties |
Resistance to constant damp heat test |
25 to 55 degrees C, 85% ~ 95%RH; 24 hours a cycle, a total of 2 cycles |
Meet the mechanical and electrical properties |
Salt spray corrosion test |
Salt fog concentration of 5% NaCl solution, the temperature is 35 |
Meet the mechanical and electrical properties |
Welcome to send your BOM list for our quotation.
You'll get such benefits from us:
—Quality products.
—Competitive price.
—Fast shipping.
—Long time warranty.
—Excellent service.
Tag: Ceremic GPS Antenna, 1575.42Mhz Antenna, Active & Passive GPS antenna,
