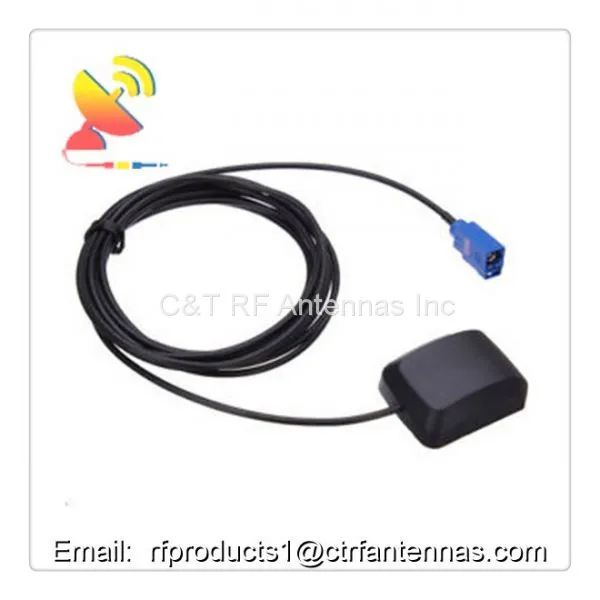

RG174 Cable 3M With FAKRA Connector Car or Marine GPS Antenna Active Antenna 28dBi Gain
US$ 0.1 - 10
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
C&T
Place of Origin:
China
Model Number:
C&T-GPS-SMA-001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
7 days
Related Products
-
Internal GPS Passive Ceramic Patch Antennas 32*32mm Size for Car or Smart Home Device TrackerUS$ 0.1 - 10MOQ: 1 Piece -
C&T RF Antennas Microwave Dielectric Passive Ceramic 1575.42MHZ GPS Antenna 25*25 mm SizeUS$ 0.1 - 10MOQ: 1 Piece
-
1575.42MHz High-Quality GPS Internal Ceramic Antenna With U.FL / IPEX Connector 25*25x6.4mm SizeUS$ 0.1 - 10MOQ: 1 Piece
-
GPS Tracker Uses 25*25x6.4mm Size Internal PCB GPS Active Ceramic AntennaUS$ 0.1 - 10MOQ: 1 Piece
-
28dBi Gain GPS Antenna High Gain 5cm Line Length Active Builtin Ceramic Antenna With U.FL ConnectorUS$ 0.1 - 10MOQ: 1 Piece
Brand Name
C&T
Place of Origin
China
Model Number
C&T-GPS-SMA-001
RG174 cable 3M with FAKRA connector car or marine GPS Antenna active antenna 28dBi gain
A GPS antenna is a device designed to receive and amplify the radio signals transmitted on specific frequencies by GPS satellites and convert then to an electronic signal for use by a GPS receiver. The output of the GPS antenna is fed into a GPS receiver which can compute the position.
This Active GPS antenna is direct supplied by C&T RF Antennas Inc.
Active GPS antenna specifications:
Specification
| Center frequency range | 1575.42MHz ± 3MHz |
| VSWR | 1.5:1 |
| Impedance | 50Ω |
| Polarization type | RHCP |
| Peak gain | >3dBic based on 7 x 7cm ground plane |
| Gain coverage | >-4dbic at -90 |
LNA/filter:
| LNA gain (without cable) | 32dB typical |
| Noise figure | 1.5dB |
|
Filter out band attenuation (f0 = 1575.42MHz) |
7dB minimum: f0 20MHz 20dB minimum: f0 50MHz 30dB minimum: f0 100MHz |
| VSWR | |
| DC voltage | 3.0 to 5.0V/other |
| DC current | 5/10mAh maximum |
Mechanical:
| Weight | |
| Size(mm) | 44.0×35.5 ×14.0 |
| Cable | RG174 5 or 3m |
| Connectors | SMA, SMB, SMC, MCX, and MMCX, or others |
Environmental:
| Working Temp | -40'C~+85'C |
| Storage Temp | -45'C~+100'C |
| Vibration | Sine sweep 1g(0-p)10~50~10Hz each axis |
| Humidity | 95%~100%RH |
| Weatherproof | 100% |
Welcome to send your BOM list for our quotation.
Tag: GPS Antenna, 1575.42Mhz Antenna, Active & Passive GPS antenna,
