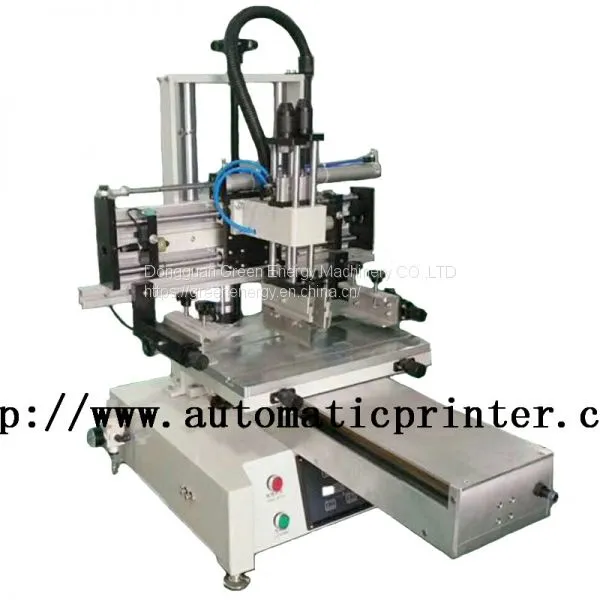

Technical data:
Name |
Slide Table Small Screen Printing Machine |
Model |
2030ST |
Left-right stroke |
350mm |
Up-down stroke |
160mm |
Frame size |
300*500mm |
Table size |
250*400mm |
Printing size |
200*300mm |
Workpiece height |
50mm |
Printing states |
1 |
Printing speed |
1200-1500pcs/hr |
Power |
220V 50—60MHZ/10W |
Air pressure |
5-7bar |
Left-right drive mode |
pneumatic |
||
Application:
A new type off slide table precision screen printing machine,compact appearance,can be formed in the smaller mass production line,using the German original factory ORIGA rodless cylinder do around before and after the sliding direction,running fast,positioning accuracy,easy operation,mainly is suitable for feeding not convenient product,such as:silicone keys,mobile phone keys surface types,such as product design and printing characters.
small screen printing machine:T flat screen printing machine;vacuum suction machine;small table screen printing machine;small rotary screen printing machine.
Products feature:
1. single chip IC coordinates with the light touch panel to compile the action program.
2. Automatic four-dight counter to cunt the number of printing.
3. Fully cast aluminum body,with metal baking paint on the surface.
4. Double column lifting structure with high stability and precision.
5. Adjustable left and right stroke.
6. The blade angle can adjusted freely.
7. Blade constant pressure device to ensure stable pressure during printing.
8. Work table front and back,left and right, rotation angle fine tuning and locking.
9. The position of the grid frame can be adjusted before and after,left and right.
10. T-shaped tank table for easy installation fo fixtures.
11. Equipped with Taiwan CEC oil pressure buffer to eliminate printing shock.
12. The whole machine runs fast,smoothly and quietly.
13. Action mode selection:automatic/semi-automatic/manual.
14. Start mode:panel/foot switch
15. Scraper pressure control:constant pressure of pressure regulating valve.
16. Up and down drive mode:pneumatic.
17. Left-right drive mode:pneumatic.
