Description:

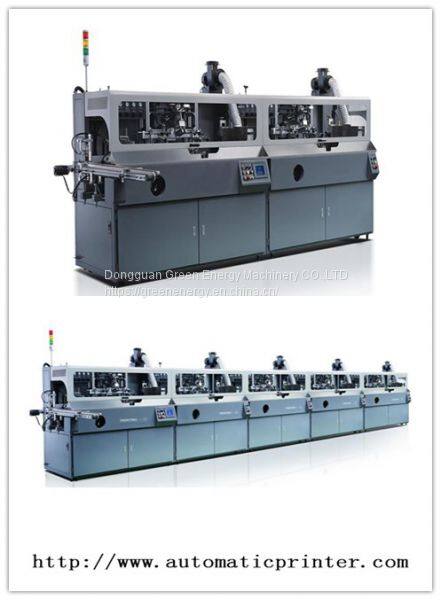

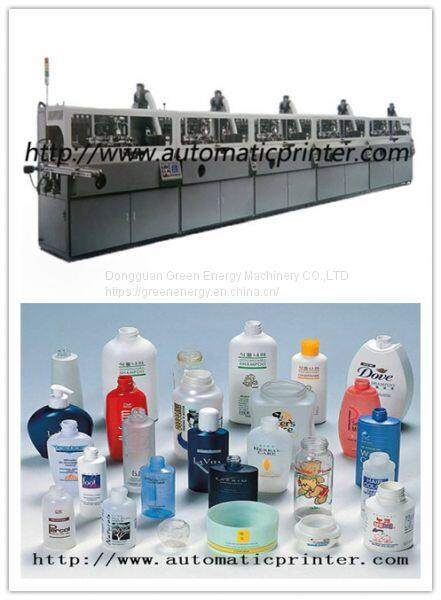

Automatic Cylindrical Two Color Screen Printing Machine
Specifications:
1.For cylinder bottle： 4000PCS/HR
2.For ellispcs bottle： 5000PCS/HR
3.Printing diameter： 25mm-90mm
4.Compress air： 5Bar
5.Liqiud gas: 1.5Bar
6.Dominate Machines： 1900mm*1200mm*1600mm
7.Scrambler： 3050mm*1300mm*1500mm
8.Vice Machines： 2290mm*600mm*750mm
9.Mainly power： 380VAC/3-PHASE/8KW
10.Feed motor： 380VAC/3-PHASE/1KW
11.Transmission motor:： 220VAC/1-PHASE/0.2KW
Advantages:
1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;
2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;
6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;
8.Conveniently and easily fixture adjustment and change that save your valuable time;
9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system.
