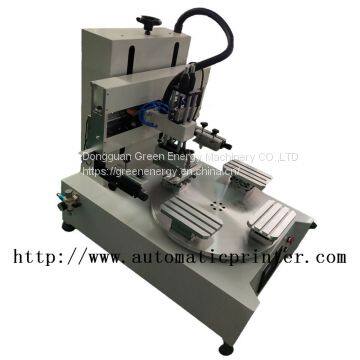

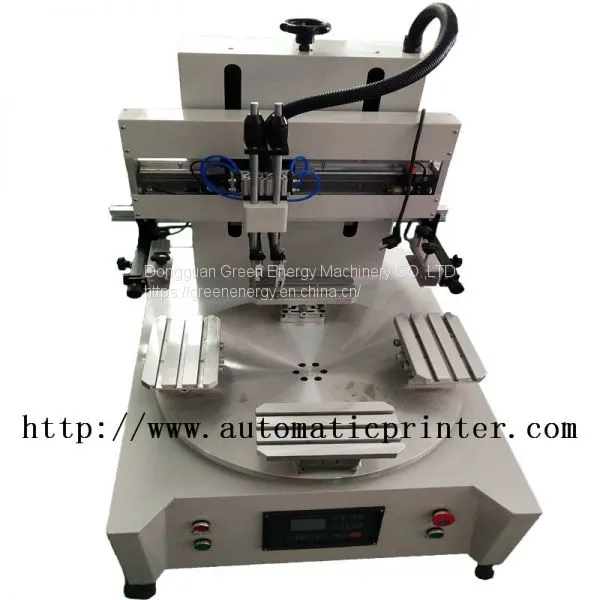

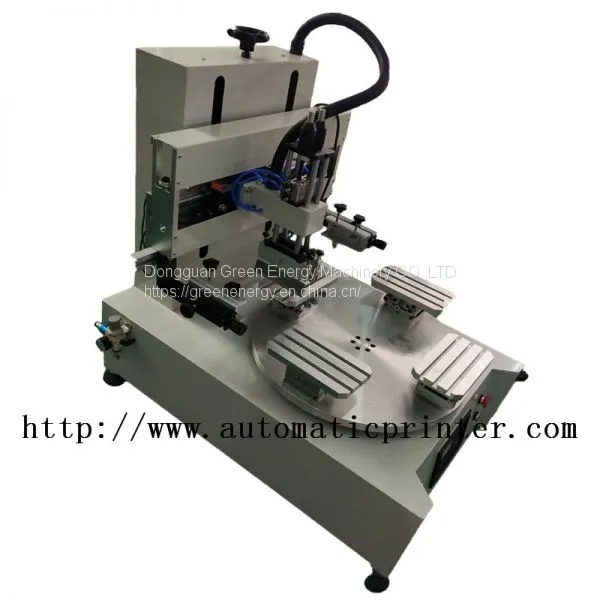

2030 small screen printing machine with conveyor
Technical data:
Model:2030-4C
Left-right stroke:350mm
Up-down stroke:160mm
Frame size:300*500 mm
Table size:200*200mm
Printing size:150*150mm
Machine size:700*700*600mm
Printing speed:1200-1800 pcs/hr
Power: 220V 50—60MHZ/10W
Air pressure:5-7 bar
Applications:
This machine is designed for high speed and high precision screen printing.It adopts Taiwan mechanical CAM divider to set up the rotary table.It can rotate at high speed without any vibration .small screen printing machines:Tflat screen printing machine;vacuum suction machine;small table screen printing machine;small rotary screen printing machine.
Products feature:
1. single chip IC coordinates with the light touch panel to compile the action program.
2. Automatic four-digit counter to count the number of printing.
3. Fully cast aluminum body,with metal baking paint on the surface.
4. Double column lifting structure with high stability and precision.
5. Adjustable left and right travel.
6. The blade angle can be adjusted freely.
7. Blade constant pressure device to ensure stable pressure during printing.
8. Work table front and back,left and right, rotation angle fine tuning and locking.
9. The position of the grid frame can be adjusted before and after,left and right.
10. T-shaped tank table for easy installation fo fixtures.
11. Equipped with Taiwan CEC oil pressure buffer to eliminate printing shock.
12. The whole machine runs fast,smoothly and quietly.
13. Action mode selection:automatic/semi-automatic/manual.
14. Start mode:panel/foot switch
15. Scraper pressure control:constant pressure of pressure regulating valve.
16. Up and down drive mode:pneumatic.
17. Left-right drive mode:pneumatic.
18. Max printing area:200*350mm
19. Running range before and after the platform:400mm
