Sunhans SH24GO10W 2.4GHz 10W Outdoor wireless signal Booster
Item specifics
Brand Name:SUNHANS
Item Number:0305SH100185
product Name: SH24GO10W
Supported Standards: IEEE 802.11 b/g
Frequency Range: 2.4~2.5GHz;
Working Pattern: TDD
Launch Output: 40dBm(10Watt)
Launch Power Input: 0~15dBm
Switch On Power Input: ---
Transmit Gain: 24dB typical
Receiver Gain: 18dB typical
Noise Figure: No
Coupling (50Ω): N-K
Power Consumption(Max): 12V, 2A
Product Weight: 740g
Product Size: 153*132*25mm
Color: Silver gray
Product brief description:
1. Outdoor WiFi signal booster;
2. Frequency 2.4GHz; Power 10W(40dBm);
3. Max. 3500 square meters suitable;
4. Work in most country.
Features:
build a wireless infrastructure for home or business use;
Description
Model Name |
SH24G010W |
Supported Standards |
IEEE 802.11 b/g |
Operating Range |
2.4~2.5GHz |
Working Pattern |
TDD |
Launch Output |
40dBm(10Watt) |
Launch Power Input |
Min.0dBm, Max.15dBm |
Switch On Power Input |
------ |
Transmit Gain |
24dB m(Typical) |
Receiver Gain |
18dBm (Typical) |
Small Signal Gain Flatness |
±1dB |
Noise Figure |
3.5dB |
Switch Time Delay |
|
Protection |
1/4 wavelength short |
AGC Control |
No |
Coupling |
N Female(50Ω) |
Operating Temp. |
-25~85℃ |
Operating Humidity |
Up to 95% relative humidity |
Indicating Lamp |
Transmitter: Red; Receiver: Green. |
Power Consumption(Max) |
12V, 2A |
Working Voltage |
12V DC |
Material |
Cast Aluminum |
Color |
Silver gray |
Product Weight |
740g |
Product Size |
153*132*25mm |
Color Box Size |
287*170*42mm |
N.W./G.W |
1050/1160g |
Description
SH24GO10W Indoor WiFi Booster SMA is an oudoor solution 10W direction Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance. In certain conditions the unit is able to
double the range of the wireless device.The WiFi amplifier extends signal range and can eliminate the use of an additional radio with its associated data line, power
outlet, signal interference, and setup headaches.
·Sunhans WiFi indoor Signal Booster 10W 2.4GHz 40dBm is the fast and easy way to extend your signal range in any environment. This wireless signal repeater is
ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 1500 MBps IEEE802.11b/g/n devices.
The WiFi amplifiers increase range by providing transmit gain as well as lownoise receive gain. This receive gain increase the receive sensitivity of wireless LAN
Access point.Full output power of 10W is achieved with only 36 mW input into the WiFi signal booster.
Brand new and high quality.Low noise receives gain.Signal activity LED indicates.
High Gain, High Value, High Performance.
Plug-and play, Easy installation, no driver needed.
Ideal for increase the 2400-2500 MHz frequency devices. Increase the effective range and coverage area of your WiFi network.
Simply attach the booster in between the standard antenna on a wireless router or wireless access point and watch your range grow.
The amplified wireless signal may even penetrate complex environments with many walls and obstacles.
Ideal for use with 2.4GHz Wireless LANs, Support 802.11b, 802.11g and 802.11n (2.4 GHz mode only).

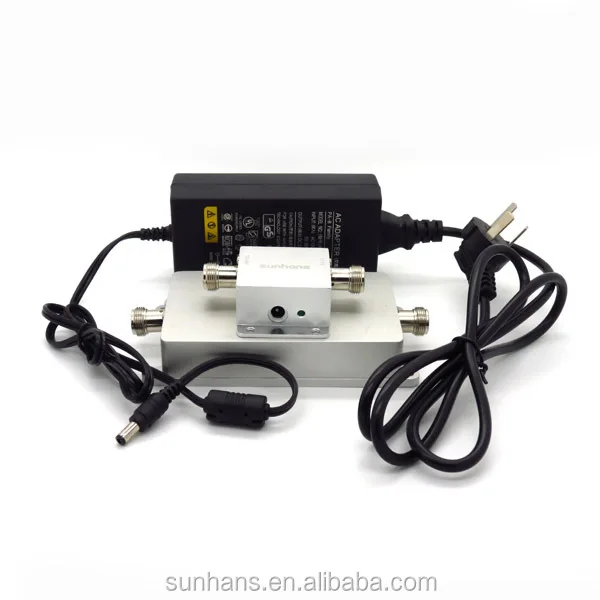

Package included:
1*signal booster;
1*feeding box;
1*power adapter;
1*user manual.
Package detail
Unit Type:piece
Package Weight:2.000kg (4.41lb.)
Package Size:20cm x 15cm x 5cm (7.87in x 5.91in x 1.97in)
