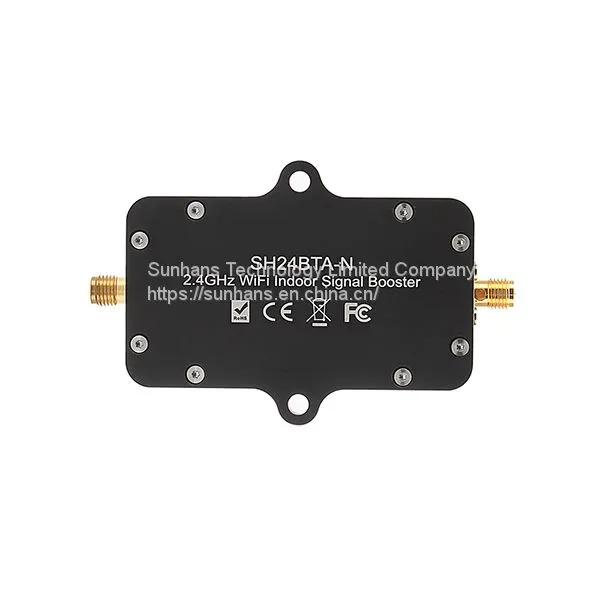

2018 Hot Sale Sunhans 3000mW WiFi wireless 2.4g signal booster amplifier

Brand Name  :Sunhans

Model Number  :SH24BTA-N

SKU  : 0305SH100023

Supported Standards: IEEE 802.11 b/g/n

Frequency Range: 2400~2500MHz

Connector Type: SMA Receptacle(50Ω)

Input Power: 0~20dBm

Transmit Gain: 14-17dB

Output Power: 3000mW(35dBm)

Receiver Gain: ≤13dB

Power Adapter: 12V/1A DC,100~240V AC

Product Weight: 150g

Package Weight: 380g

Booster Size: 7.5*4.9*1.7cm

Package Size: 18.5*13.5*4.5cm

Features:

Full power, easy installation and operation;

Strengthen radio signal to Increase the effective range and coverage area for Wi-Fi communication;

Save wiring costs, easily build a wireless infrastructure for home or business use;

Make broadband wireless application in possible coverage.

1. Indoor Application Scenarios

a. Smart Home: Control system host gateway; Zigbee, WiFi router devices; Security monitoring system; WiFi video intercom access control,etc.

b. Villa, hotel, office building WiFi coverage;

c. Underground garage WiFi coverage;

d. Factory,warehouse WiFi coverage;

e. CVR wireless monitoring system.

f. Radio station

2.Outdoor Application Scenarios

a. Remote control of UAV:allows drones to fly farther;

b. UAV real-time video and image transmission distance is farther and more stable;

c. Mine,railway WiFi signal coverage;

d. City WiFi coverage and point-to-point WiFi long distance transmission;

e. WiFi detector in public places;

f. Intelligent manufacturing robot;

g. Special frequency for industrial,medical,military equipment, such as ISM frequency and etc.

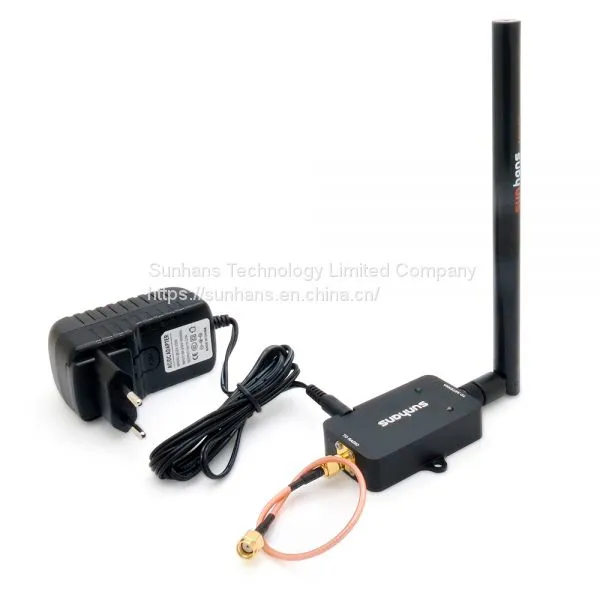

Kits Included

1*signal booster;

1*power adapter;

1*20cm RG316 cable;

1*6dBi omni antenna(optional);

1*user manual.

Packaging Details

Unit Type:piece

Package Weight:0.500kg (1.10lb.)

Package Size:22cm x 14cm x 5cm (8.66in x 5.51in x 1.97in)

Shipping Way

We can ship out the goods by DHL, UPS, FedEx, EMS, Aramex, China post, HK post and etc., you can choose a suitable shipping way.

Lead time: 20~30 working days

One-year warranty

One stop service

OEM & ODM are welcome

Problem Support

SH24BTA-N SUNHANS WiFi BOOSTER is an indoor solution 3W bi-direction Booster designed for 2.4GHz wireless LANs. This unit comes with an easy plug-and-play installation, which works together with an indoor Wireless Access Point to improve its operation range and performance. In certain conditions the unit is able to double the range of the wireless device.The WiFi amplifier extends signal range and can eliminate the use of an additional radio with its associated data line, power outlet, signal interference, and setup headaches.

·SH24BTA-N SUNHANS WiFi BOOSTER is the fast and easy way to extend your signal range in any environment. This wireless signal repeater is ideal for use with 2.4 GHz frequency hopping or direct sequence spread spectrum radio modems and 150 MBps IEEE802.11b/g/n devices.

The WiFi amplifiers increase range by providing transmit gain as well as low-noise receive gain. This receive gain increase the receive sensitivity of wireless LAN Access point.Full output power of 3000mW is achieved with only 1 mW input into the WiFi signal booster.

2. Production

3.  Exhibition

1.What is the WiFi signal booster? How can I connect the WiFi Signal Booster?

The working mode of the WiFi signal booster needs to be connected to the signal source (customer device which cause wifi signal ) through one end of the cable,

and the other end is connected to the antenna, and the WiFi signal range is expanded through the antenna.

2.Feature:

  a. Plug and play, no software setup.

  b.Wide application range, can enlarge WiFi signal coverage range, as long as the frequency of the product can be applied

3. How to find a suitable wifi signal booster?

Firstly , you need to know the frequency of your device. The frequency of a typical WiFi device is single frequency 2.4 GHz, 5.8 GHz; dual frequency 2.4 GHz and 5.8 GHz.
Depending on the frequency of the device, select the appropriate Sunhans booster.

Secondly , select the product with the corresponding power based on the distance that needs to be amplified.
The larger the power of the amplifier, the larger the coverage.
For signal coverage should be equipped with an omnidirectional antenna ;

For long distance coverage should be equipped with an directional antenna.
(For drone equipment, customers need to consider the endurance of the drone)

Thirdly, Need to know the output power of the device.
(output power of the device = input power of the amplifier) Sunhans booster input power 0~20dBm,

if the output power of the device is greater than 20dBm or the power is relatively small -2~6dBm,

you need to inform us, we will adjust it according to your actual situation.

4. Can I install the Sunhans booster myself?
Of course, our products are easy to install and plug and play, and the product package contains instructions for each product.

5. About LED lights.
A flashing green light indicates that the wifi signal booster is powered on.
Normal operation is a red light flashing green, indicating that the signal booster receives the signal from the device and sends a wifi signal.
