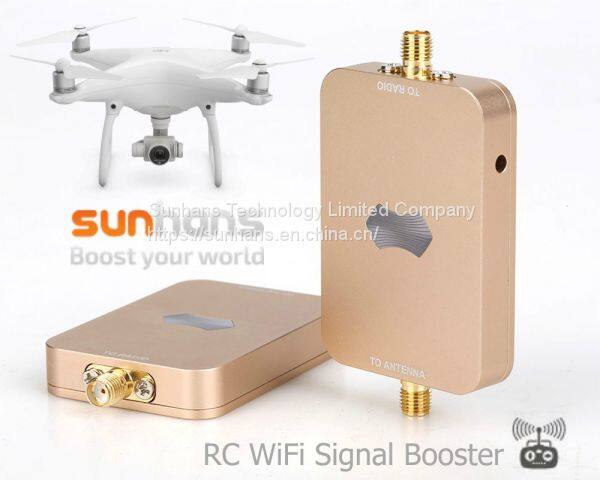

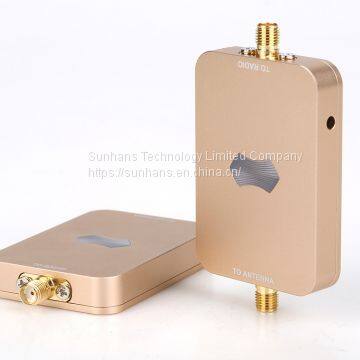

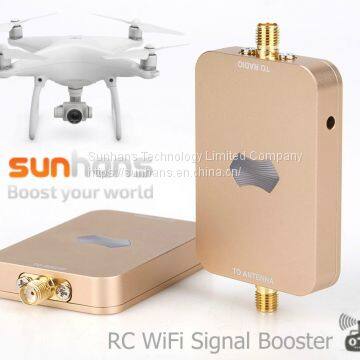

2.4g WiFi Signal Booster SHRC24G3WP booster for UAVs

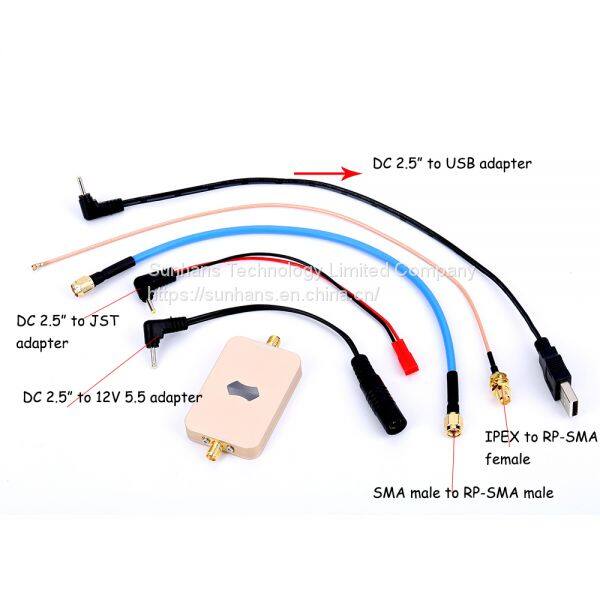

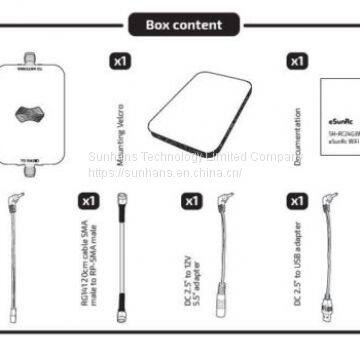

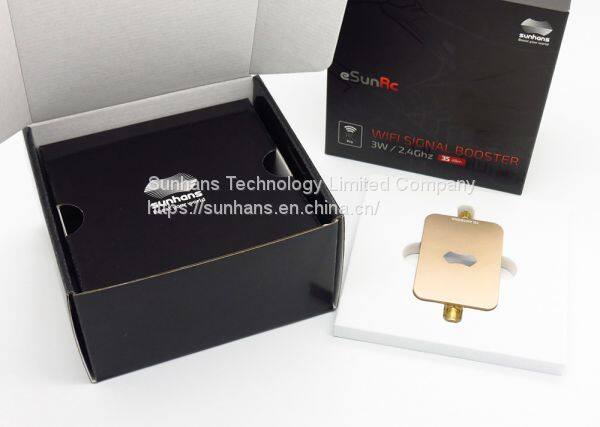

Package contents
SH-RC24G3W eSunRc WiFi booster
RG141 20cm cable SMA male to RP-SMA male
RG178 30cm cable IPEX to RP-SMA female
DC 2.5” to 12V 5.5” adapter
DC 2.5” to USB adapter
DC 2.5” to JST adapter
User Manual
Technique Specifications| Booster Model | SH-RC24G3W |
| Operating range | 2.4~2.5 GHz |
| Operation mode | Bi-directional, half-duplex, time division duplex senses RF,carrier from transmitter and automatically switch receiving to transmitting mode. |

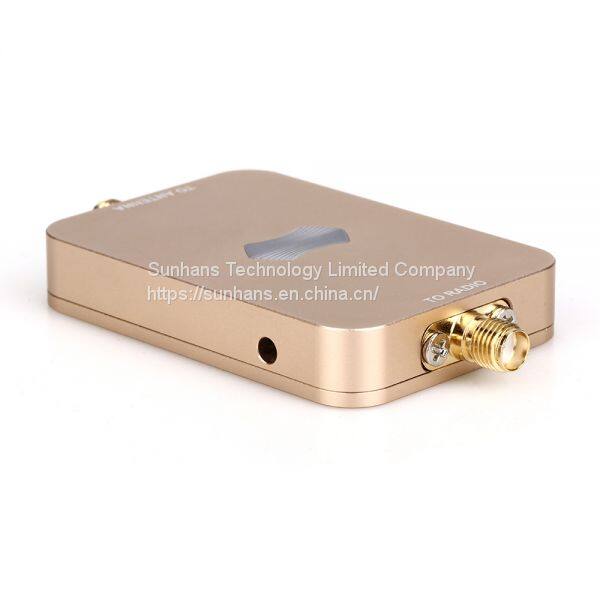

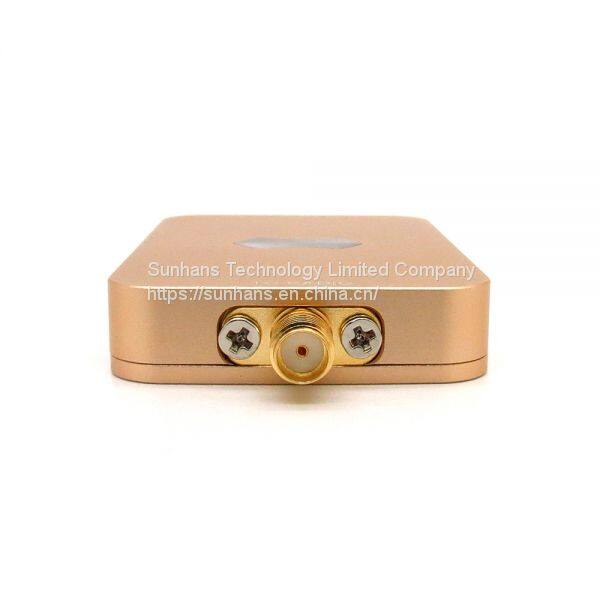

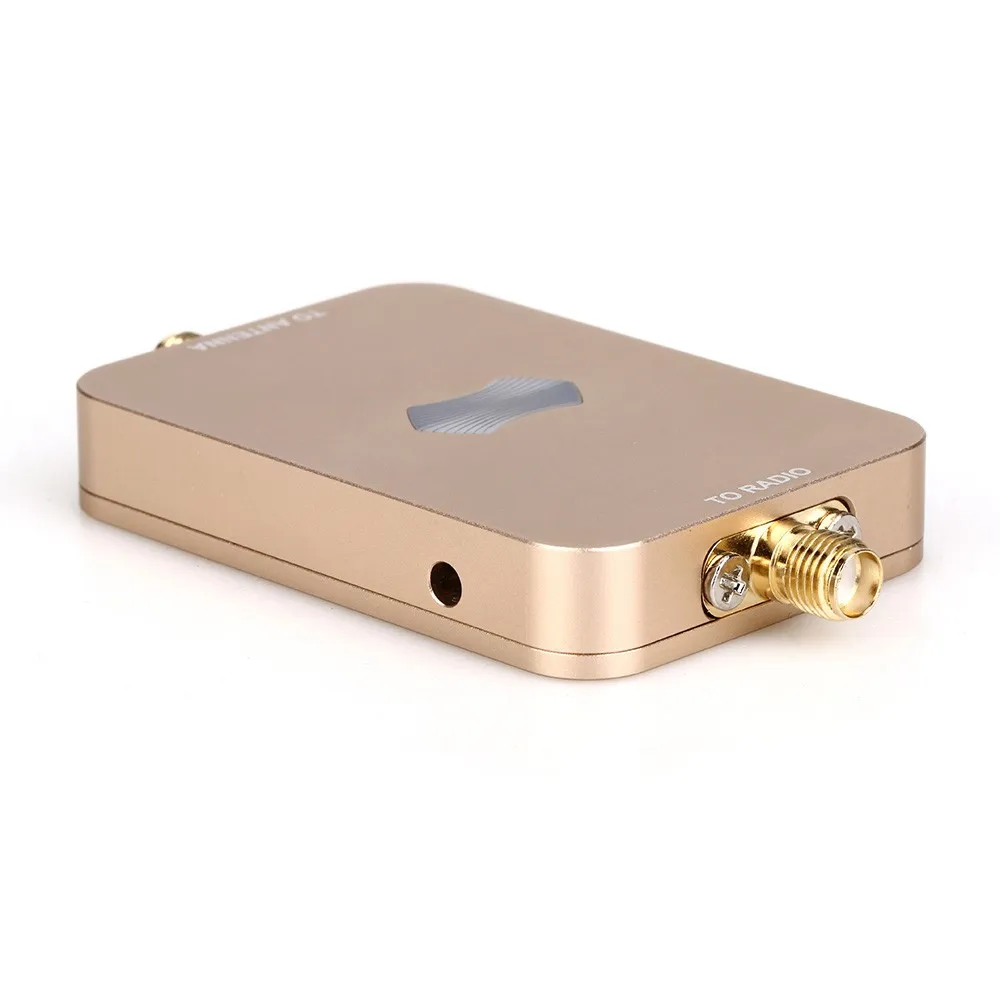

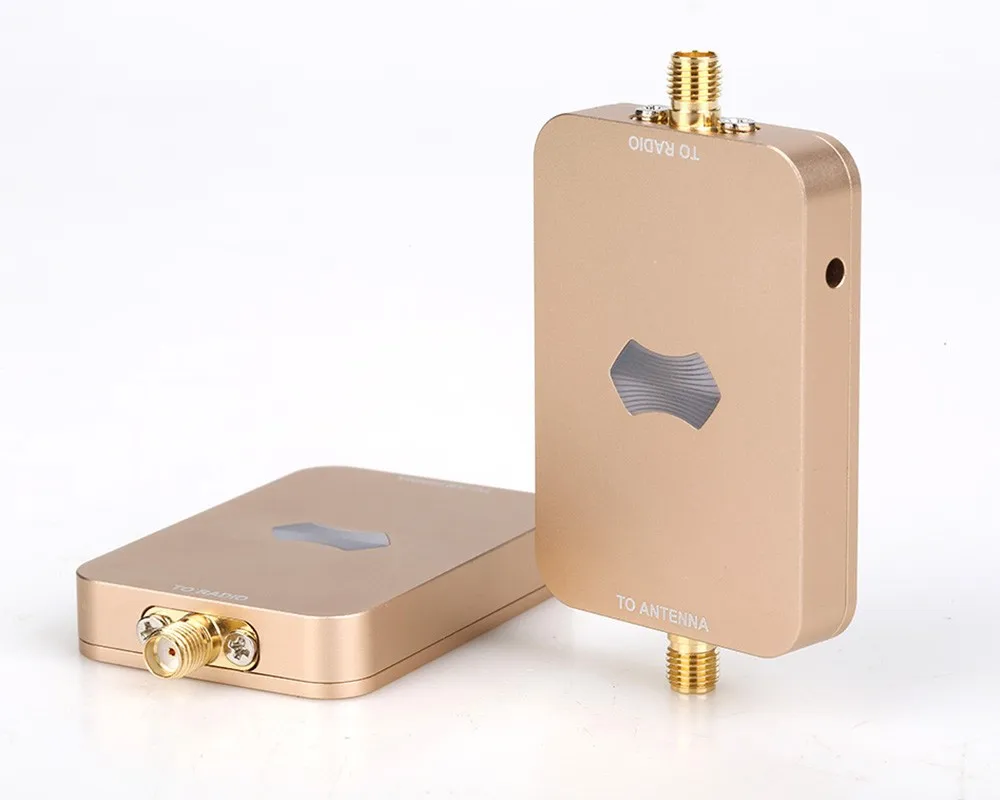

| Connector type | SMA Receptacle 50ohm,To radio SMA female(hole inside),To antenna RP-SMA female(pin inside) |
| Output power | 3000mW (35dBm) |
| Input power | 0 ~ 20dBm |
| Transmit gain | 15-18dB |
| Receiver gain | ≤ 12 dB |
| Noise figure | ≤3.5 dB typical |
| Frequency response | ±1dB over operating range |
| Supported voltages | 5V~16V/2A DC |
| Operating Temperature | -20°C to + 70°C |
| Operating humidity | Up to 75% relative humidity |
| Material | Cast aluminum |
| Booster weight | 46g |
| Booster size | 7.3 x 3.8 x 1cm |
Sunhans
was founded in 2002. After years of unremitting struggle, we have developed into a Hi-tech company with full capacity of Research & Development (R&D), production, sale, system assembly and after-sales service.
Our company is dedicated to researching and developing security systems. We have provided entire security protection solutions for banks, hotels, government departments, armies, household areas, factories and mines.
To be your global security product supplier and a system integration company
we provide OEM/ODM products for large-scale customers
Lead time: 15~25 working days
One-year warranty
One stop service
OEM & ODM are welcome
1.What is the WiFi signal booster? How can I connect the WiFi Signal Booster?
The working mode of the WiFi signal booster needs to be connected to the signal source (customer device which cause wifi signal ) through one end of the cable,
and the other end is connected to the antenna, and the WiFi signal range is expanded through the antenna.
2.Feature:
a. Plug and play, no software setup.
b.Wide application range, can enlarge WiFi signal coverage range, as long as the frequency of the product can be applied
3. How to find a suitable wifi signal booster?
Firstly , you need to know the frequency of your device. The frequency of a typical WiFi device is single frequency 2.4 GHz, 5.8 GHz; dual frequency 2.4 GHz and 5.8 GHz.
Depending on the frequency of the device, select the appropriate Sunhans booster.
Secondly , select the product with the corresponding power based on the distance that needs to be amplified.
The larger the power of the amplifier, the larger the coverage.
For signal coverage should be equipped with an omnidirectional antenna ;
For long distance coverage should be equipped with an directional antenna.
(For drone equipment, customers need to consider the endurance of the drone)
Thirdly, Need to know the output power of the device.
(output power of the device = input power of the amplifier) Sunhans booster input power 0~20dBm,
if the output power of the device is greater than 20dBm or the power is relatively small -2~6dBm,
you need to inform us, we will adjust it according to your actual situation.
4. Can I install the Sunhans booster myself?
Of course, our products are easy to install and plug and play, and the product package contains instructions for each product.
5. About LED lights.
A flashing green light indicates that the wifi signal booster is powered on.
Normal operation is a red light flashing green, indicating that the signal booster receives the signal from the device and sends a wifi signal.
