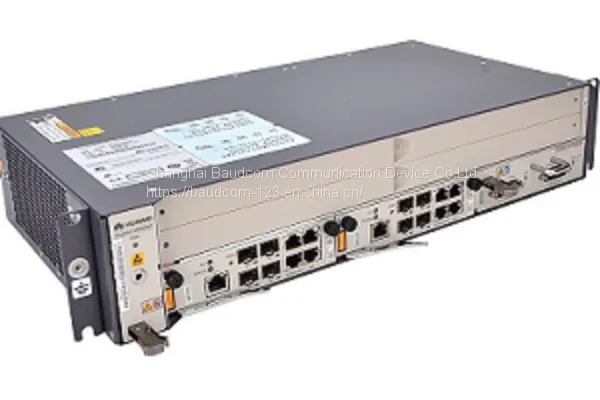

New Original 2U Huawei GPON OLT MA5608T

Name: New Original 2U Huawei GPON OLT MA5608T
Brand: baudcom
SKU: 159080075
Availability: InStock

US$ 456 - 895 MOQ: 1 Unit

Key Specifications

Brand Name:

baudcom

Place of Origin:

China

Model Number:

Shanghai Baudcom Communication Device Co.Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name baudcom

Place of Origin China

Model Number 1

Feature:

Supports the 10G GPON/GPON access service. All the three can function as an optical line terminal (OLT) in the GPON system, working with the optical network terminal (ONT) or other optical network units (ONUs).
Supports the point-to-point (P2P) FE/GE optical access. The P2P board is mainly used for cascading, and it can also provide users with P2P FTTH access by cooperating with ONTs.
Provides the voice service solution based on the Session Initiation Protocol (SIP) and H.248, supports the POTS port to implement the voice service, fax service, narrowband modem service, and various supplementary services.
Provides the E1/N*64k private line service through the TDM SHDSL board. And H802EDTB board supports the TDM SHDSL feature.
Supports broadband access services such as ADSL2+, VDSL2, and SHDSL, enhancing the xDSL function.

MA5608T Specification

Board Configuration	control boards (2 slots), service boards (2 slots), power interface board (1 slot)
switching capacity (control board) /System Layer 2 packet forwarding rate	MCUD/MCUD 1: 128 Gbit/s (active/standby mode),256 Gbit/s (load-sharing mode)
Switching/Forwarding delay	The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load	BER of a port when the port transmits data in full load
System reliability specifications	System: redundant configuration.System availability for the typical configuration: > 99.999%.Mean time between failures (MTBF): about 45 years. (for reference).
Operating environment	Operating temperature: -40°C ~ +65°C,Operating humidity: 5% ~ 95% RH,Atmospheric pressure: 61 ~ 106 kPa, Altitude: ≤ 4000 m

Max. number of ADSL2+ / VDSL2 / POTS ports	128
Max. number of EFM SHDSL /ISDN BRA / ISDN PRA ports	64
Max. number of TDM SHDSL / GPON ports	32
Max. number of 10G GPON ports	8
Max. number of P2P FE / GE ports	96

Dimensions and weight of the ma5608t olt

Item	Specification
Dimensions (W x D x H, excluding mounting brackets)	442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets of IEC standard)	482.6mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting brackets of ETSI standard)	535mm×244.5mm×88.1mm
Weight (empty chassis)	3.55kg

Running environment parameters of the ma5608t olt

Environment Parameter	Specification
Working environment temperature	-40°C to +65°C
Working environment humidity	5% RH to 95% RH
Atmosphere pressure	70 kPa to 106 kPa
Altitude

Huawei ma5608t olt Positioning

Deployed at the remote end, including the base stations (BSs) and outdoor environments
2 U high, and supports a maximum of two service boards
Connected to MxUs or ONTs and used in FTTB/C and FTTH scenarios
Connected to xDSL terminals and phones and used in the MSAN/DSLAM scenario
