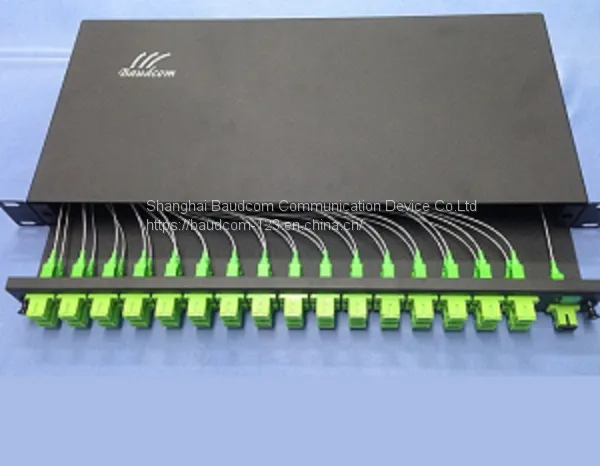

Rack Mount PLC Splitter

Rack Mount PLC Splitter thumbnail-1
Rack Mount PLC Splitter photo-1
US$ 64 - 125 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
baudcom
Place of Origin:
China
Model Number:
1
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name baudcom
Place of Origin China
Model Number 1

Features:Features:

◆    Uniform power splitting

◆    Compact package dimension

◆    Low polarization dependent loss

◆    Good channel-to-channel uniformity

◆    Environmentally and mechanically stable

◆    Low Insertion Loss and high Return Loss

◆    Wide operating wavelength range from1260nm to 1650nm



Standard:


◆     Telcordia GR-1209 and GR-1221



 Application:

◆     Telecommunication networks

◆     FTTX, FTTH (Fiber to the Home)

◆     PON (Passive Optical Network)

◆     LAN & WAN

◆     CATV



Specifications:

Table 1: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature without connectors.

Port Configuration

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

Typ.

3.6

6.8

10.0

13.0

16.0

19.5

Max.

4.0

7.3

10.5

13.7

16.9

21.0

Loss Uniformity (dB)

Typ.

0.4

0.5

0.5

1.0

1.0

1.5

Max.

0.6

0.6

0.8

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

PDL (dB)

Typ.

0.1

0.1

0.1

0.1

0.2

0.2

Max.

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Fiber Length (m)

1.0 or customized

Fiber Type

Corning SMF-28e or customized

Wavelength Dependent Loss (dB)

Typ.

0.2

0.2

0.2

0.3

0.3

0.3

Max.

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability (-40~+85°C) (dB)

Typ.

0.3

0.3

0.3

0.4

0.4

0.4

Max.

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~+85°C

Storage Temperature (°C)

-40~+85°C



Table 2: Performance for 1×N PLC Splitter

Note: All measurements are done at room temperature with connectors.

Port Configuration

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

Typ.

4.0

7.0

10.3

13.5

16.5

20.0

Max.

4.5

7.7

11.0

14.2

17.5

21.5

Loss Uniformity (dB)

Typ.

0.4

0.5

0.5

1.0

1.0

1.5

Max.

0.6

0.6

0.8

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

PDL (dB)

Typ.

0.1

0.1

0.1

0.1

0.2

0.2

Max.

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Fiber Length (m)

1.0 or customized

Fiber Type

Corning SMF-28e or customized

Wavelength Dependent Loss (dB)

Typ.

0.2

0.2

0.2

0.3

0.3

0.3

Max.

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability (-40~+85°C) (dB)

Typ.

0.3

0.3

0.3

0.4

0.4

0.4

Max.

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~+85°C

Storage Temperature (°C)

-40~+85°C



Table 3: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature without connectors.

Port Configuration

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

4.0

7.6

11.0

14.5

17.5

21.0

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

2.5

Return Loss (dB)

55

55

55

55

55

55

PDL (dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Fiber Length (m)

1.0 or customized

Fiber Type

Corning SMF-28e or customized

Wavelength Dependent Loss (dB)

0.5

0.5

0.5

0.5

0.5

0.5

Temperature Stability (-40~+85°C) (dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~+85°C

Storage Temperature (°C)

-40~+85°C



Table 4: Performance for 2×N PLC Splitter

Note: All measurements are done at room temperature with connectors.

Port Configuration

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Insertion Loss (dB)

4.5

8.1

11.6

15.0

18.0

21.5

Loss Uniformity (dB)

0.8

1.5

1.5

2.0

2.5

2.5

Return Loss (dB)

55

55

55

55

55

55

PDL (dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Fiber Length (m)

1.0 or customized

Fiber Type

Corning SMF-28e or customized

Wavelength Dependent Loss (dB)

0.5

0.5

0.5

0.5

0.5

0.5

Temperature Stability (-40~+85°C) (dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating Temperature (°C)

-40~+85°C

Storage Temperature (°C)

-40~+85°C



Ordering Information:

Name

PLC=PLC Splitter

Port

12=1×2; 14=1×4; 18=1×8; 116=1×16; 132=1×32; 164=1×64; 1128=1×128;

22=2×2; 24=2×4; 28=2×8; 216=2×16;

232=2×32; 264=2×64; 2128=2×128

Number of PLC Splitter

None=1pc; 2=2pcs; 3=3pcs; 4=4pcs; etc

Package

R=Rack Mount

Dimension

1=1U; 2=2U; 3=3U; 4=4U; 5=5U

Access

F=Front Access; B=Back Access

Fiber Mode

2A=SM G.652.A; 2B=SM G.652.B;

2C=SM G.652.C; 2D=SM G.652.D;

5A=SM G.655.A; 5B=SM G.655.B;

5C=SM G.655.C; 7A1=SM G.657.A1;

7A2=SM G.657.A2; 7B2=SM G.657.B2;

7B3=SM G.657.B3

Connector & Adaptor

SU=SC/UPC; SA=SC/APC;

FU=FC/UPC; FA=FC/APC;

TU=ST/UPC; TA=ST/APC;

LU=LC/UPC; LA=LC/APC; etc

None=without connectors
