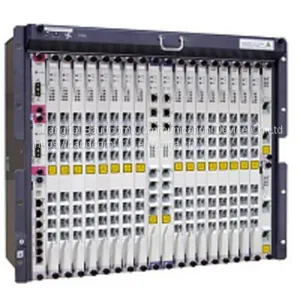

Help CenterHuawei MA5680T GPON OLT
Related Products
Description:
MA5680T is the global first OLT which integrates the functionality of aggregation switch and edge router.
The MA5680T provides the voice, data, and video services that feature large capacity, high rate, and high bandwidth.
To be specific:
The MA5680T functions as an optical line terminal (OLT) in a GPON network to work with the optical network unit (ONU) and optical network terminal (ONT).
The MA5680T supports rich network applications, such as FTTH, FTTB, and FTTC.
The MA5680T meets the network requirements of base station transmission, IP private line interconnection, and multi-ISP wholesale.
The MA5680T supports the point-to-point (P2P) FE optical access. By cooperating with the ONT, the MA5680T provides users with the P2P FTTH access.
Specification:
| Port Type | Port | Description |
| Upstream port | GE optical /electrical port |
All GE optical ports use the small form-factor pluggable (SFP) optical transceivers. Through different SFP modules, the optical ports support different transmission distances. Single-mode SFP transceivers and multi-mode SFP transceivers are available.
Multi-GE upstream transmission is supported to meet the multi-edge network requirements of the carrier. |
| 10GE optical port | It provides the 10GE upstream transmission function | |
| E1 port | It provides the E1 upstream transmission function. | |
| STM-1 port | It supports the upstream transmission through the STM-1 optical port and supports the ESFP/SFP module. |
|
| Service port | GPON port | It provides the GPON access. It supports a maximum upstream rate of 1.244 Gbit/s and a maximum downstream rate of 2.488 Gbit/s |
| P2P optical port | It provides the P2P Ethernet optical access at a rate of 100 Mbit/s. |
|
| Ethernet optical port |
It provides the GE subtending function. | |
| Maintenance port | Maintenance serial port |
It is used for local and remote maintenance. |
| Environment monitoring serial port |
Various environment parameters are collected by the monitoring device and then through this port reported to the MA5680T. |
Parameter |
Specification |
| Operating wavelength | 1310 (RX)/1490(TX) |
| Optical power | +2 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:32 |
| Capacity | 8 PON, 256 ONUs |
| MAC | 8k for single OLT module card, 16k for the whole rack |
| Uplink port | 8 10/100/1000 Ethernet RJ45 port |
| PON port | 8 SC fiber port |
| Control port | RJ45, RS232, to debug the device |
| MTBF | 100,000 hours |
| GEON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported |
Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Network management |
Support GUI management based on SNMP |
| Support Local serial interface management and local serial interface management and Telnet GUI management based on CLI | |
| Other functions |
Support 1GMPv1/v2 protocol report, query and leave message mouse |
| Support DHCP Snooping | |
| Support Ipv4 address learning based at DHCP Snooping | |
| Support ARP Snooping, QoS etc |
