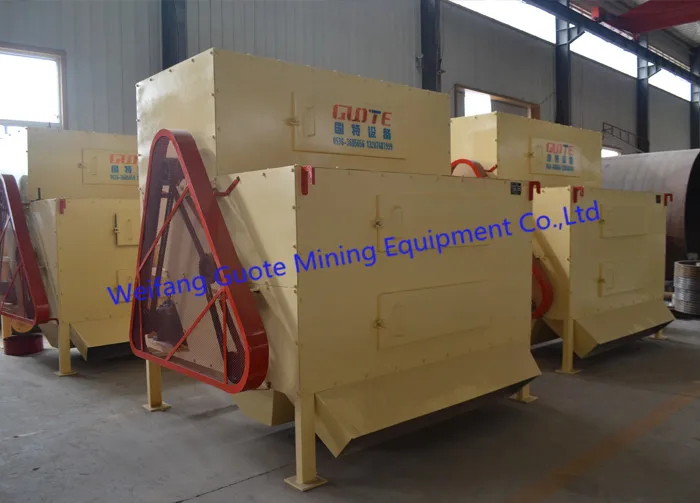

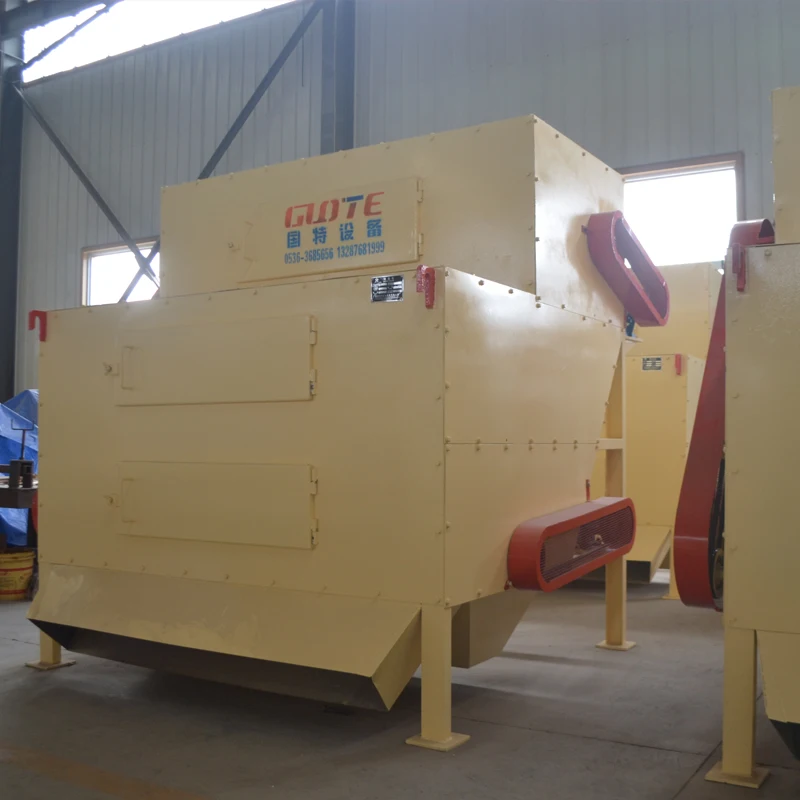

GCT-F-8 Dry Roller Type Permanent Magnetic Separator

Name: GCT-F-8 Dry Roller Type Permanent Magnetic Separator
Brand: GUOTE
SKU: 159079501
Availability: InStock

US$ 6000 - 8900 MOQ: 1 Set

Key Specifications

Brand Name:

GUOTE

Place of Origin:

China

Model Number:

GCT-F-8

Weifang Guote Mining Equipment Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

30 days

Brand Name GUOTE

Place of Origin China

Model Number GCT-F-8

Type Magnetic Separator

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 12months

Weight 1000kg

Dimension(L*W*H) 1200*1200*1380

Production Capacity 1-3TPH

Voltage 380/440

Condition New

Power(W) 3kw

Exquisite craftsmanship dry magnetic drum separator manufacturer

Product Description

1 It is used for ceramics, glass, refractories, abrasives and other non-metallic mineral

2 It's apply to purification of chemical, food, medicine and purification, hematite,limonite and manganese.

Technical characteristics

Cylinder and roller reasonablely combined, iron removal more efficient.
Cylinder with new type permanent magnet ,magnetic field more stronger, suction more stronger
Drum magnetic system can be turning block type, efficient more higher
Surface magnet field up to 8000GS
Cylinder and roller's speed is variable frequency regulation
Magnetic roller adopted polymer composite magnetic system,magnetic field up to 15000GS, higher gradient
Belt made with special materials, high wear resistance
Controllable feeding system ensure the uniformity of material when it go through magnetic field
Selfclean weakly magnetic oxide,longlife work
Dust discharged only by dust collector, so it can meet the environmental protection requirements

Thenical parameter

ITEM	Magnetic roller length(mm)	Magnetic field intensity(GS)	cylinder magnetic field intensity(GS)	Belt thickness(mm)	Material size(µm)	Capacity(t/h)	Power(KW)
MODEL							Cylinder drive	roller drive
GCT/F3-I	300	1500-2000	4000-10000	0.1-2	83-5000	0.4-0.6	0.75*2	0.55*1
GCT/F3-II								0.55*2
GCT/F5-I	500	1500-2000	4000-10000	0.1-2	83-5000	0.8-1	0.75*2	0.55*1
GCT/F5-II								0.55*2
GCT/F8-I	800	1500-2000	4000-10000	0.1-2	83-5000	1.2-2	1.1*2	0.55*1
GCT/F8-II								0.55*2
GCT/F10-I	1000	1500-2000	4000-10000	0.1-2	83-5000	2-3.5	1.5*2	0.55*1
GCT/F10-II								0.55*2
GCT/F12-I	1200	1500-2000	4000-10000	0.1-2	83-5000	4-7	2.2*2	0.55*1
GCT/F12-II								0.55*2
GCT/F15-I	1500	1500-2000	4000-10000	0.1-2	83-5000	7-10	3*2	0.55*1
GCT/F15-II								0.55*2
