CTB(N/S)-1230 series magnetic separator for recycling Dense Medium

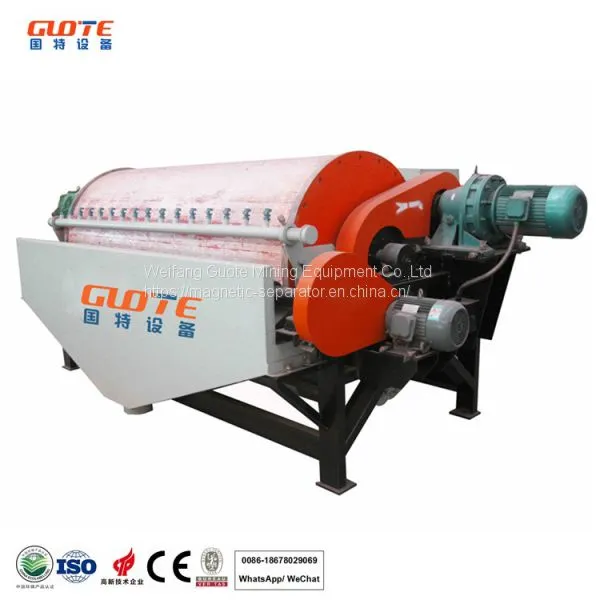

1.Introduction of CTB wet magnetic separator
Series CTB wet magnetic separator is usally used for sorting the fine-grained magnetic minerals, or removing magnetic minerals from non-magnetic minerals. Its composite magnetic system consists of high performance rare earth permanent magnet (main magnetic source) and ferrite permanent magnet. With a deep magnetic field, the machine can make a continuous row of ore feed and discharge. It also has enough working clearance and high processing capacities(For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot ).
Applicable scope:
The permanent magnetic drum separator are used in mines and coal separating factories to separate the wet fine magnetic substances or remove the magnetic substances from the non-magnetic materials
2.Working principal of CTB wet magnetic separator
When the ore pulp goes into the separation area of the wet drum magnetic separator, as a result of different magnetic susceptibilities of a variety of minerals, under the magnetic force, the magnetic minerals are absorbed to the surface of drum, and are brought to the discharge area for ore concentrate along with the rotation of drum, then after leaving the magnetic system, the magnetic materials are flushed to ore concentrate box by the flushing water; Weak magnetic and non-magnetic minerals can not be absorbed and will flow to the discharge pipe for tailings.
4.Advantage of wet magnetic separator
♦ High magnetic field intensity
♦ Magnetic field depth, uneasy demagnetization
♦ High efficiency
♦ Strong adaptability of production fluctuation
5.Technical parameter of the machine
| Model | Capacity (t/h) | Magnetic intensity (oe) | Power (kw) | Weight (wt) |
CTB600*900 | 8-15 | 1450 | 1.1 | 0.91 |
CTB600*1800 | 15-25 | 1500 | 2.2 | 1.34 |
CTB750*1200 | 25-30 | 1550 | 2.8 | 1.49 |
CTB750*1800 | 30-45 | 1550 | 3 | 2.05 |
CTB900*1800 | 35-60 | 1550 | 4 | 3 |
CTB1050*2400 | 55-90 | 1550 | 5.5 | 5 |
CTB1200*3000 | 80-150 | 1550 | 7.5 | 7.8 |
CTB1500*3000 | 120-200 | 1550 | 11 | 9.6 |
6. Technical Characteristics:
The separators have three types of tanks :half countercurrent tank(CTB),direct flow tank(CTS) and countercurrent tank(CTN),which are used according to different granular and technological requirements.
The features of our products are :optimized computer design ,rational magnetic circuit, strong magnetic coercive force and high-remanence permanent magnetic which can keep the magnet performance in a long period and safeguard the long -term interest of the customer, the whole structure is reliable. (For details, please contact me:Annie Chang,Mob:0086-18678029069(whatsapp),E-mail: Annieflower.chang dot )
