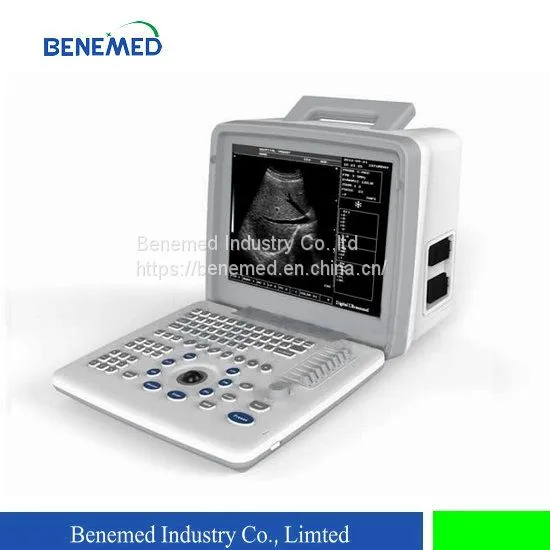

BW-5 Portable Ultrasound Diagnostic Scanner
•Digital Beam Forming
•Superior image quality
•Dynamic Receiving Apodization
•Dynamic Frequency Scan
•Advanced imaging processing
•USB port for convenient image transfer
Specification
General Description:
Imaging Modes: B, B/B, B/M, 4B, M
Scanning Modes: Convex, Linear
Gray Scale: 256
Display: 12'' TFT monitor
Gain: up to 120dB
Scanning dept: up to 250mm
Imaging technology: Digital Beam-forming
Dynamic Frequency Scan
Dynamic Receiving Focusing
Dynamic Receiving Apodization
Real-time Dynamic Aperture
Imaging Processing
Pre-processing: Dynamic range
Line Density
Frame correlation
Edge enhance
Post-processing: Gray scale
Gray reject
Scan angle
Polarity reverse
Left/Right reverse
Up/down reverse
Functions:
ZOOM: Local zoom
Panoramic zoom
Image memory: 127 frames
Cine Loop: 256 frames
View: Patient info, patient image, Patient report
Pseudo color: 16 colors selectable
Software Functions
General measurement: distance, circumference, area, volume, angle, ration, etc
Calculation package: abdomen, cardiac, gynecology, obstetrica, urology, orthopedics, small parts, etc
Peripheral ports: USB SVGA PAL-D Video output
Others:
Net weight: 6.0KG
Power supply: AC 220V±22V 50Hz
Dimensions: 480*380*410
Standard Configurations:
BW-5 main unit
12'' TFT monitor
Two transducer connectors
256 frames cine loop
Electronic convex transducer
