Home > Health & Medicine > Medical Equipment > Ventilator > Hiight Quality Portable Digital 12 Channel 12 Lead ECG Machine B-ECG12A

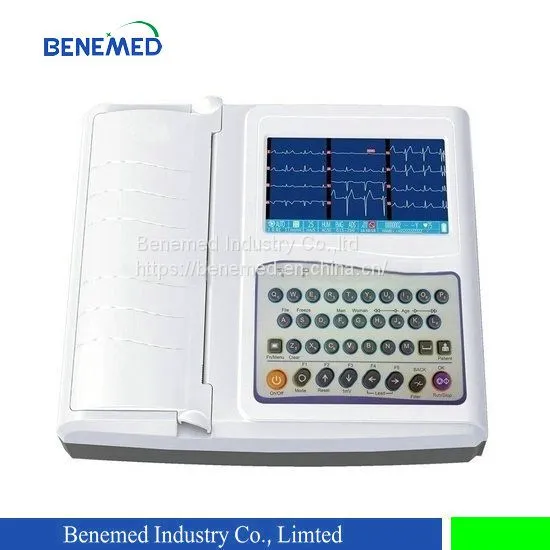

Hiight Quality Portable Digital 12 Channel 12 Lead ECG Machine B-ECG12A

Hiight Quality Portable Digital 12 Channel 12 Lead ECG Machine B-ECG12A thumbnail-1
Hiight Quality Portable Digital 12 Channel 12 Lead ECG Machine B-ECG12A photo-1
US$ 100 - 500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BENENED
Place of Origin:
China
Model Number:
B-ECG12A
Contact Supplier Request Quote Chat Now
BENEMED (HK) Industry Co. Limted
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BENENED
Place of Origin China
Model Number B-ECG12A
Type First-Aid Devices

Specification

B-ECG12A
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
7 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Display:                      7 inch LCD
Lead standard:                12 leads
Calibrating voltage:            1mV±2%
Voltage tolerance:             ≥±500mV
Inter-channel interference:     ≤0.5mm
Frequency response:          0.05~160Hz(-3db)
Patient current leakage:       Noise level:                  Sensitivity valve:              ≤20μV
Paper speed:                6.25, 12.5,  25,  50mm/s(±3%)
Time constant:                ≥3.2s
Input dynamic range:          ±10Vpp
Filter:
            AC flter:            50Hz / 60Hz
          EMG filter:            25Hz / 45Hz
       Anti-drift filter:            0.15Hz(Adaptive)
Sensitivity:                  5,10,20mm/mV
CMMR:                     ≥120dB (with AC filter)
Input impedance:            ≥50MΩ
Input circuit current:         ≤0.05μA
Work mode:                MAN, AUTO, ANALYSIS modes
Lead acquisition:           12bit/1000Hz (synchronously 12 leads)
Input circuit:                floating; protection circuit  against defibrillator effect
Power Supply:             AC 110-230V(±10%) 50/60Hz(±1Hz),60VA
Rechargeable battery:      14.4V(4400mmAh)
Dimension:                347×293×83mm
NW:                      3.8Kg

Standard configuration
Patient cable 1 set
Limb electrode 4 sets
Chest electrodes 6 sets
Grounding cable 1 set
Paper axis 1 set
Thermal paper 1 set
Fuse 2 sets
3-cord power cord 1 set
AC Adaptor 1 set


Product Tags: ECG Machine , Electrocardiograph , 12 Channel ECG , High Accuracy ECG Machine
