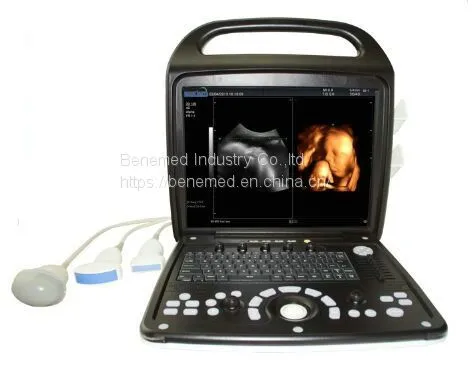

BENE-3V
General Descriptions
Imaging mode:B,B/B,B+M,M,CFM,PW,CDE,CCD,HPRF.
Gray scale:256
Display:15" high-resolution non-interlaced monitor, special for medical imaging.
Transducer frequency:2.0~14MHz
Transducer connector:3
Imaging Technology:
Continuous High-precision Digital Beam-former
Dynamic Frequency Integration Imaging
High-precision Dynamic Receiving Focus
Super Wide-band Imaging Technology
Self-adaptive Image Optimization Processing
Multi-beam Imaging
Self-adaptive Vascular Imaging
Self-adaptive Doppler Imaging
THI (Tissue Harmonic Imaging)
Image Processing
Pre-processing: 8-segment TGC gross gain dynamic range gray map smooth acoustic power adjustment scanning angle selection
Post-processing: edge enhancement frame correlation line correlation y-correction contrast brightness Etc.
Measurement & Calculation
B-mode: distance, circumference, area, volume, angle, residual urine volume, histogram, profile.
M-mode: distance, time, velocity, heart rate
C-mode: doppler blood flow measurement, velocity, acceleration, pressure, gradient, time, VI, PI,
RI, etc
Software package:
GYN: uterus, endometrium, ovary, cervix, ovarian follicle
OB: GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD,
FTA, HL, ULNA, FL, FIB, CLAV, etc
Cardiac: M. Simpson, B-EF, M-EF (Pombo, Gibson, Teichhoiz), Diameter Function, PV flow,
AV-Area, B-LV/Ao, M-LV/Ao, MV Regurg, etc
Urology: volume of prostate, volume of bladder, volume of urine, volume of trans zone, HipJ.
Angle (hip joint dislocation in neo-natal and babies), slice v, etc
Small Parts and Peripheral Vessels: vascular cross-sectional area, heart rate, stroke volume,
flow per unit time, Ejection Time, % stenosis, mean, velocity of flow, RI, PI, etc
Standard Configuration
BENE-3V main unit
15 inch high resolution LCD monitor
Two active transducer connectors
500G image-storage capacity
Two side USB ports
DICOM 3.0
Rechargeable lithium battery
Data management system
Measurement and calculation software package
Others
Peripheral port:
Video output: USB port; DICOM3.0; VGA port; S-Video port; RS232; Print Remote;
Power supply:100V-240V, 50/60HZ
Net weight: 9 KG
Options:
linear array transducer:LA7.5MHz/L50 (5.0-10.OMHz)
linear array transducer:LA7.5MHz/L40 (6-14.OMHz)
endocavity transducer:EV6.5MHz/R10 (4.0-9.OMHz)
micro-convex array transducer:MC3.5MHz/R20 (2.0-6.OMHz)
Needle-guided brackets
Footswitch
