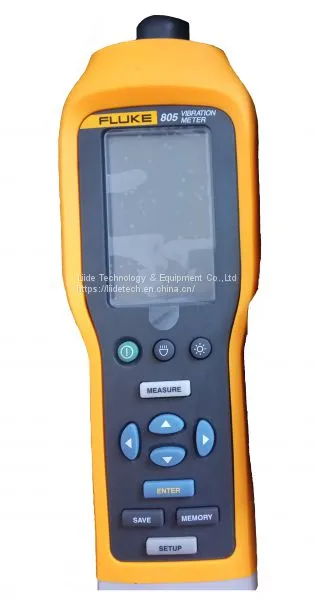

Fluke 805 Vibration Meter

Fluke 805 Vibration Meter

Ordering information

Fluke-805 Vibration Meter

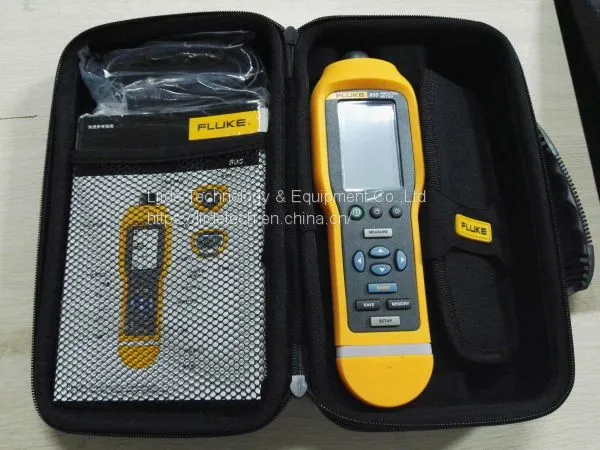

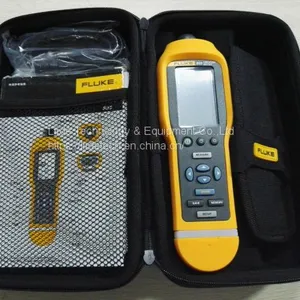

Includes: 805 Vibration Meter, USB cable,

storage case, belt holster, quick reference

guide, CD-ROM (includes MS Excel template

and documentation), and two AA batteries

Specifications:

Vibration meter

Low frequency range

(overall measurement)

10 Hz to 1,000 Hz

High frequency range

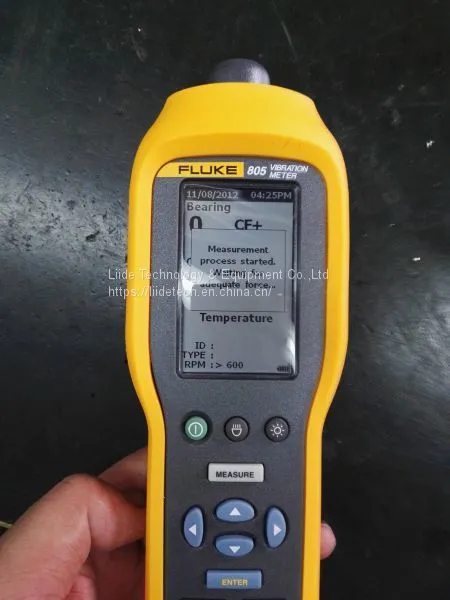

(CF+ measurement)

4,000 Hz to 20,000 Hz

Severity levels Good, Satisfactory, Unsatisfactory,

Unacceptable

Vibration limit 50 g peak (100 g peak-peak)

A/D converter 16-bit

Signal to noise ratio 80 dB

Sampling rate

Low frequency 20,000 Hz

High frequency 80,000 Hz

Real time clock backup Coin battery

Sensor

Sensitivity 100 mV / g ± 10%

Measurement range 0.01 g to 50 g

Low frequency range

(overall measurement)

10 Hz to 1,000 Hz

High frequency range

(CF+ measurement)

4,000 Hz to 20,000 Hz

Resolution 0.01 g

Accuracy At 100 Hz ± 5 % of measured value

Amplitude units

Acceleration g, m/sec2

Velocity in/sec, mm/sec

Displacement mils, mm

Infrared thermometer (temperature measurement)

Range -20 °C to 200 °C (-4 °F to 392 °F)

Accuracy ±2 °C (4 °F)

Focal length Fixed, at ~3.8 cm (1.5″)

External sensor

Note: Fluke supports, but does not provide, external sensors.

Frequency range 10 Hz to 1,000 Hz

Bias voltage (to supply power) 20 V dc to 22 V dc

Bias Current (to supply power) Maximum 5 mA

Firmware

Calibration Factory calibration required

External interfaces USB 2.0 (full speed) communication

Data capacity Database on internal flash memory

Upgrade through USB

Memory Up to 3,500 measurements
