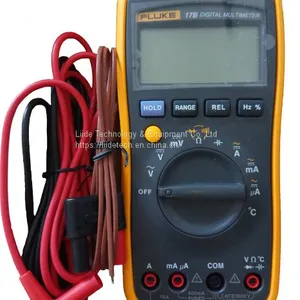

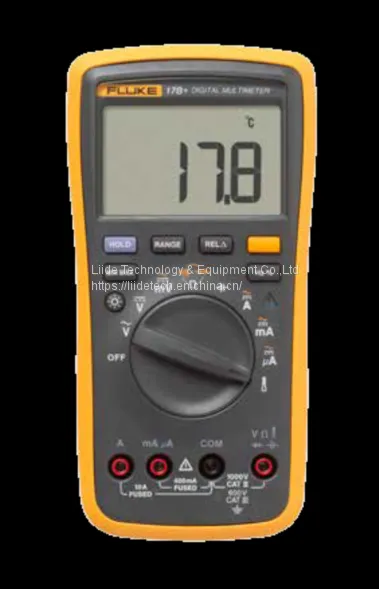

Fluke 17B+ Digital Multimeter

Fluke 17B+ Digital Multimeter

Ordering information

FLUKE-17B+ Digital Multimeter

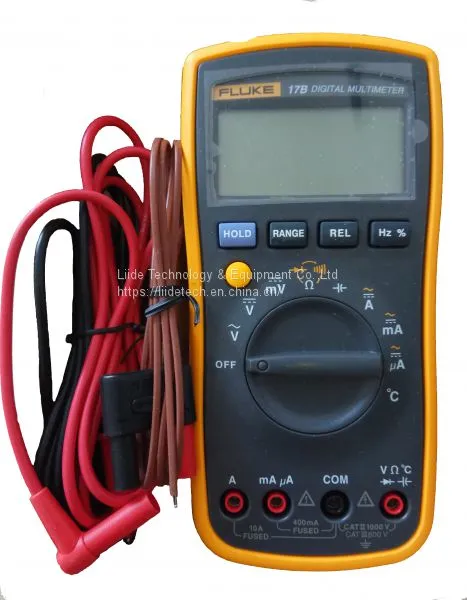

Included

Test leads with caps, thermocouple

temperature probe (17B+), 2 AA

batteries, users manual.

Optional accessories

TPAK Meter Hanging Kit

TL175 TwistGuard™ Test Leads

General specifications

Maximum voltage between any terminal and earth ground 1000 V

Display (LCD) 4000 counts, updates 3/sec

Battery type 2 AA, NEDA 15 A, IEC LR6

Battery life 500 hours minimum (50 hours in LED Test mode without load. The hours with load depends

on the type of LED under test.)

Temperature Operating: 0 °C to 40 °C; Storage: -30 °C to 60 °C

Relative humidity Operating humidity: ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C;

non-condensing (<10 °C)

Operating humidity, 40 MΩ range ≤ 80 % RH at 10 °C to 30 °C; ≤ 70 % RH at 30 °C to 40 °C

Altitude Operating: 2000 m; Storage: 12,000 m

Temperature coefficient 0.1 X (specified accuracy) /°C (<18 °C or >28 °C)

Fuse protection for current inputs 440 mA, 1000 V fast fuse, Fluke specified part only. 11 A, 1000 V fast fuse, Fluke specified

part only

Size (HxWxL) 183 mm x 91 mm x 49.5 mm

Weight 455 g

IP rating IP40

Safety IEC 61010-1, IEC61010-2-030 CAT III 600 V, CAT II 1000 V, Pollution Degree 2

Electromagnetic environment IEC 61326-1: Portable

Electromagnetic compatibility Applies to use in Korea only
