Product introduction

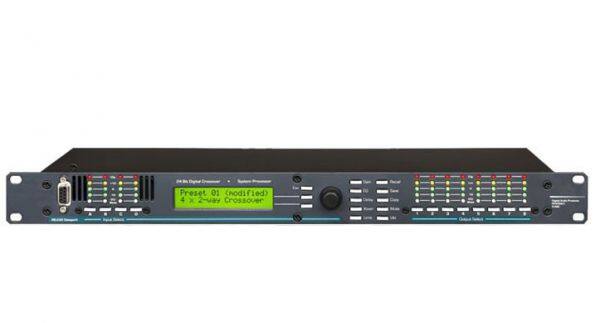

4.24C is a 1U rack type, fully programmed, 4 input, /8 output, 24 bit digital audio system processor. The program is through the front panel control and 2X20 character display, using a very intuitive and easy to use interface to guide the user to achieve the Protea system software on a personal computer platform or MIDI use. The role of 4.24C is not limited to frequency dividers, but it also provides signal distribution, gain control, equalization, delay and amplitude limiting. In short, 4.24C is a powerful audio processor that can be used for fixed installations, use, and live performances.
Technical Parameters
Input: full balanced interface, 18K ohms
The maximum input level: +20dBu
Input gain range: -40dB to +12dB
The output: full balanced interface, 112 ohms
The maximum output level: +20dBu
The output gain range: -40dB to +12dB
The distortion:
The dynamic range: >110dB 20Hz - 20KHz unweight
The output noise:
Wave filter：
The number of input 4 output parameters, 3 parameters
The range of the parameters: 1/64Th ~ 4 octave octave
The range: +15/-30dB, 0.1dB value
The frequency response: 1/24th octave
Frequency division filtering:
The high / low pass filter frequency range: 19.7Hz to 21.9kHz, off
Delay time:
Input delay: 0 - 682 MS
The output delay: 0 - 21.3 MS
He added: 20 s
Input / output gain:
The range: +12/-40dB, 0.1dB value
The polarity: 0 or 180
Compressor / limiter:
Input range: -20dBu to +20 dBu
The compression ratio range: 1.2:1 to INF:1
The start time: 0.5ms to 50ms
The recovery time range: 10ms to 1s
Processor:
Input A/D:24bit
The output of D/A:24bit
The sampling ratio: 48kHz
The increased delay: 1.46ms
Other
The power requirements: 80 - 260VAC, 30W
The package weight: 10lbs
- size: 19 "L x 1.75" H x 6 "D
The I/O interface: XLR
