Product introduction
The 2x4、2x6、4x8 audio processor, using the latest fourth-generation SHARC ADSP-21488 400Mhz floating point DSP, which has powerful DSP processing capabilities.Each input and output has a 16-section parameter filter, gain control, noise gate function, RMS pressure limit, built-in pink/white noise generator, and adjustable delay.The slope of the divider is optional from 6dB/Oct to 48dB/Oct.The delay step accuracy is 0.02ms, and the level gain accuracy is 0.1dbu, which meets fine adjustment in the field.
Product features
Adsp-21488 400Mhz floating DSP
Ad-da dynamic range 114dBu
System dynamic range 110dBu
Input 16 segment PEQ, output 16 segment PEQ
Each input channel contains noise gates
Each input channel has a feedback suppressor
Each input channel has a pressure limiter
100M Ethernet interface
PC software automatically finds the processor
32 system presets
Fast copy of channel parameters
DSP, ARM firmware can be upgraded through Ethernet
Maximum input level 18dBu
Maximum output level: 18dBu
The default output level is 0dBu
Harmonic distortion THD+N 1 KHZ @ + 4 is a
1 KHZ @ + 10 DBM
20 hz to 20 KHZ @ + 4 is a
Frequency response: 20hz-20khz, +/- 0.2db
Input to output dynamic range 110dB (no recording)
SNR -110dB (no recording)
ADC dynamic range CS5361 114dB
DAC dynamic range CS4382A 114dB
DSP 400Mhz floating SHARC adsp-21488

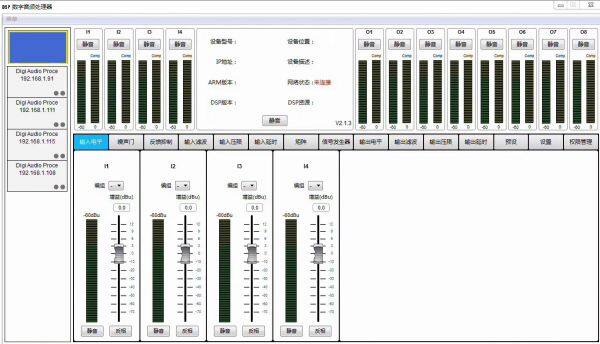

PC control software
