Home > Consumer Electronics > Audio & Sets > Professional Audio > Dual 31-Band Digital Graphic Equalizer
Dual 31-Band Digital Graphic Equalizer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
7 days
Related Products
-
2x4、2x6、4x8 Professional Audio Processor Audio Sound ProcessorNegotiableMOQ: 1 Piece -
4x8 Professional Audio Processor Audio Sound ProcessorNegotiableMOQ: 1 Piece
-
2x4、2x6 Professional Audio Processor Audio Sound ProcessorNegotiableMOQ: 1 Piece
-
Power Sequencer With DJ LightsNegotiableMOQ: 1 Piece
-
Wired Handheld MicrophoneNegotiableMOQ: 1 Carton
Place of Origin
China

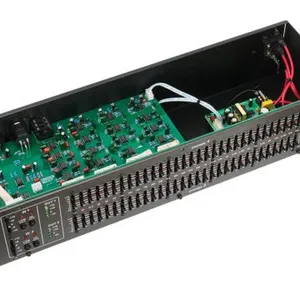

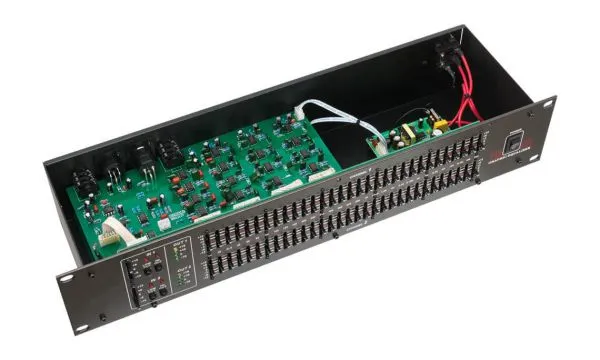

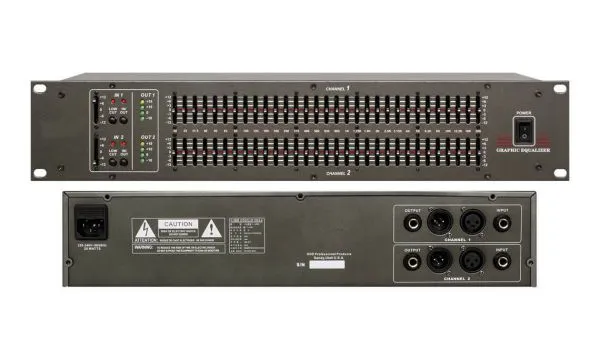

Dual 31-Band digital graphic equalizer
It is a 2U dual 31-band electronics graphic equalizer, with a separate high-pass filter, low pass filter, cut off frequency in order to reduce the power dissipation, independent gain range switching key to facilitate the different needs. 30mm length faders produced by brand-named manufacturer, high precision potentiometers lockable in the middle, with comfortable hand feeling, precise gain adjustment.
Cut-in delay electronic switch can avoid breaking sound. High quality selection components, easily realizes SR231 better than 90dB signal to noise ratio, less than 0.003% total harmonic distortion.
Technical Parameters:
Structure: 31 segment 2U
Channel separation: RF Filtered Servo-balanced Input
Frequency response: 20Hz ~ 20KHz, ± 0.5dB
Constant Q gain attenuation: ± 12dB
low cut filter: 12dB attenuation in 40Hz switchable choice
Working level:-100dBu ~ +4 dBu
Input impedance: 40KΩ balanced, 20KΩ unbalanced
Maximum Output Level:-21dBu
Input Level Control:-12dB ~ +12 dB
Output Impedance: 51KΩ balanced, 120KΩ unbalanced
Output Level Display: LED light beam table:-10dB, 0dB, +10 dB and 18dB
Total Harmonic Distortion:
SNR (rof.0.775ms):> 90dB
Power Supply: 220V 18W
