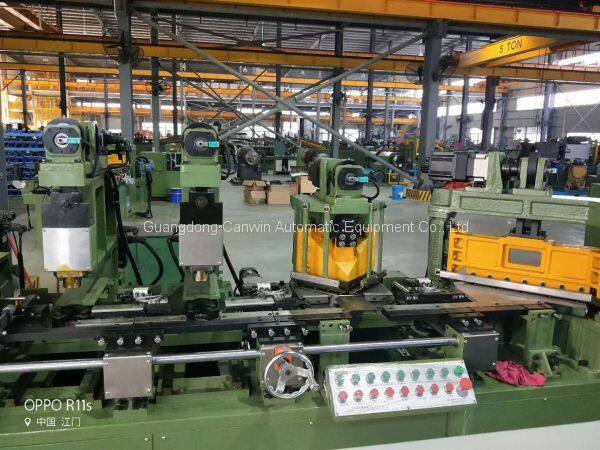

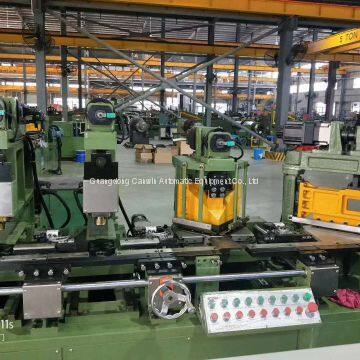

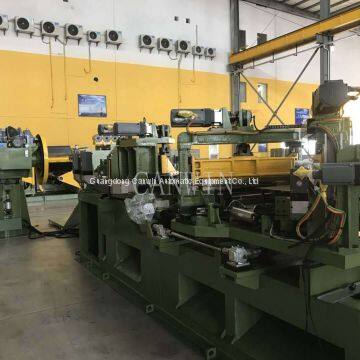

CUT TO LENGTH LINE
Model: CAH(23)-400D with two O punching
(Delta control system)
u Main technical parameter
1. Rang of work:
Material Thickness: 0.23 -0.35mm
Material Width: 60-440mm
Punch die size: Ø8-Ø24mm
Material Length: 400 -2500mm (The shortest length according to the sheet shape)
Sheet Shape: Parallelogram, Side + Side sheet, Side + Yoke sheet, Stele sheet, Partial stele sheet (All sheet shape have step function)
2. Requirement for working coil:
Width tolerance: ±0.1mm
Burr: ≤0.03mm
S deviation: Within 2000mm, One-way≤0.2mm
3. Machine Precision:
Length tolerance: ±0.2mm/2m
Angle tolerance: ±0.025°
Burr: ≤0.02mm
4. Feeding speed : 240M/min
6. Total installed capacity : About 20Kw
7. Total gas consumption : 1 M3/min
8. Working conditions:
i. Temperature: Less than 45°C
ii. Voltage fluctuation: 380V±10%
iii. Frequency: 50/60Hz
9. Operation table direction: From left to right, face to the equipment.
10. Shear sheet shape: Ordinary sheet shape: edge sheet, equilateral column, unequal column, Yoke sheet
Transverse 3 step by step, 5 step by step, 7 step by step (single chip shear)
Transverse 3 step by step, 5 step by step, 7 step by step (Double vane shear)
Longitudinal 3 step by step, 5 step by step, 7 step by step (single chip shear)
