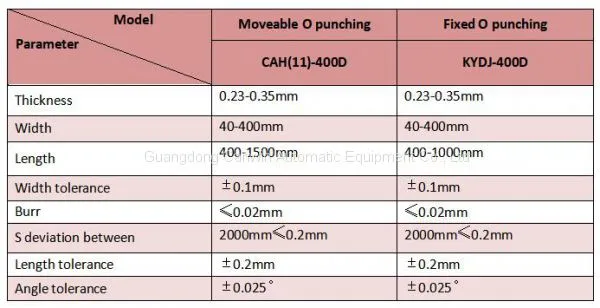

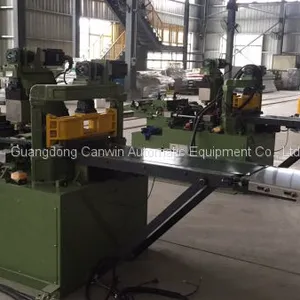

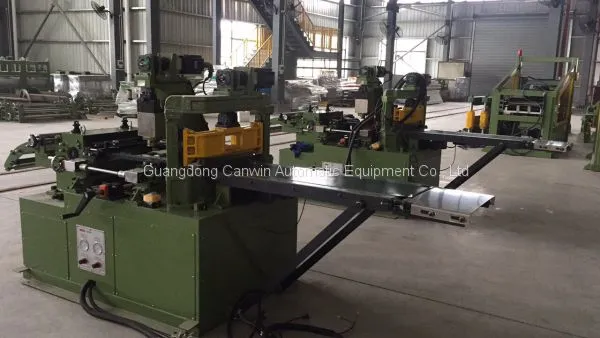

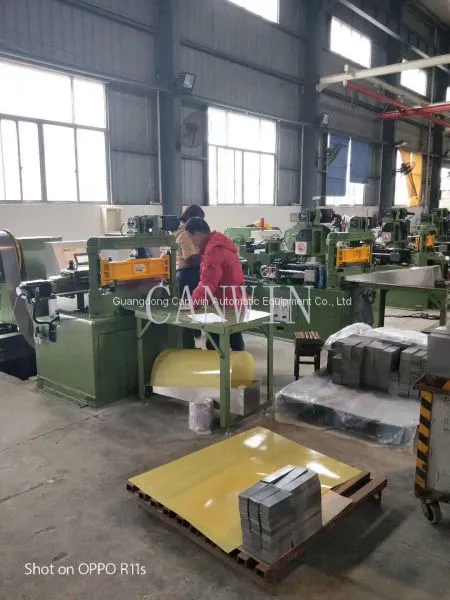

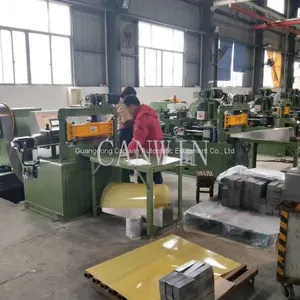

Punching cut to length line Model: KYDJ-400D
1.Single head decoiler
Coil ID: 500mm
Coil maximum OD: 1000mm
Single head maximum weight: 2 ton
Decoiler feeding speed: Synchro control with the feeder
Decoiler used Toshiba inverter synchronous stepless speed regulation follow feeding automatically.
2. Precision servo feeding mechanism
Feeder according to the shearing sheet type process (shear action sequence) and length request, processing silicon steel sheet in the accurately shear position. Feeder with humanized design, simple operation and easy maintenance.
Structure features:
Use servo motor drive, operation is simple and quick, shorten the preparation time, increase productivity. Machine' body in one structure, precision structure and strong body, emphasizes working load for a long time, long life and high precision.

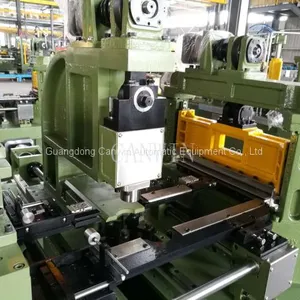

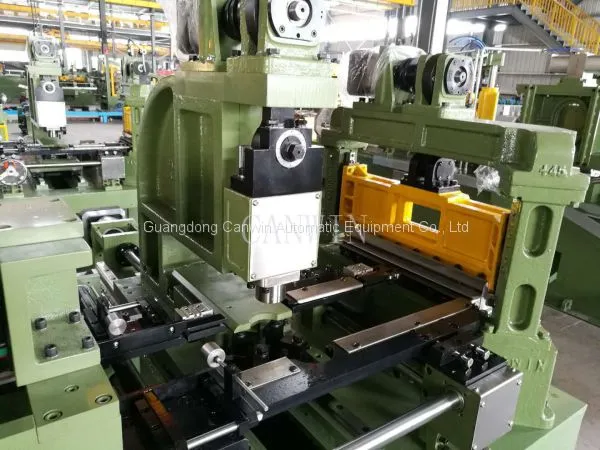

3. Punch part
Mainly contains 1 set O punch, servo motor drive.
O punch have manual moved function and sliding lightweight, digital positioning.
O punch shear driven by servo motor, high efficiency, low noise.
Cutter (mould) life: Not less than 1 million times each grinding.
4. Shear part
Mainly consist by ＋90° shear (Fixed), transverse sliding table, etc.
Shear driven by servo motor, high efficiency, low noise.
Cutter (mould) life: Not less than 1 million times each grinding.
5. Discharge table
Use simple platform to auxiliary receive material device,
6.Pneumatic system
All pneumatic system adopts Taiwan AIRTAC pneumatic control system, the structure is compact, convenient to connect the tube and bus connection.

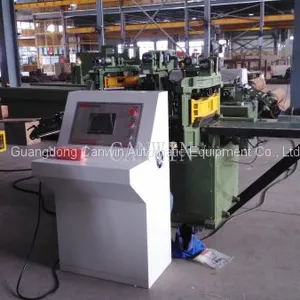

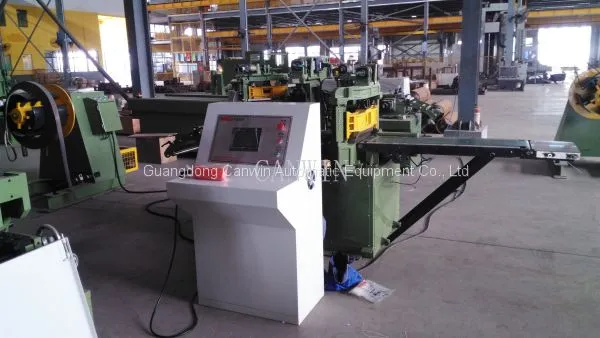

7. Control system operation platform
Control system adopts Taiwan PLC to control, program operation is simple and easy, can be set length of shear, shear rate and shear qty arbitrary, it will automatic stop after finish the shearing qty, midway outage can automatic protection and stored data. Workers can easy operation and master.
